Before diving into trimming, it's essential to understand what load cells are and how they function. Load cells are transducers that convert a force (such as weight) into an electrical signal. They are widely used in various applications, including industrial scales, truck scales, and medical equipment.
Load cells can be categorized into several types based on their design and application:

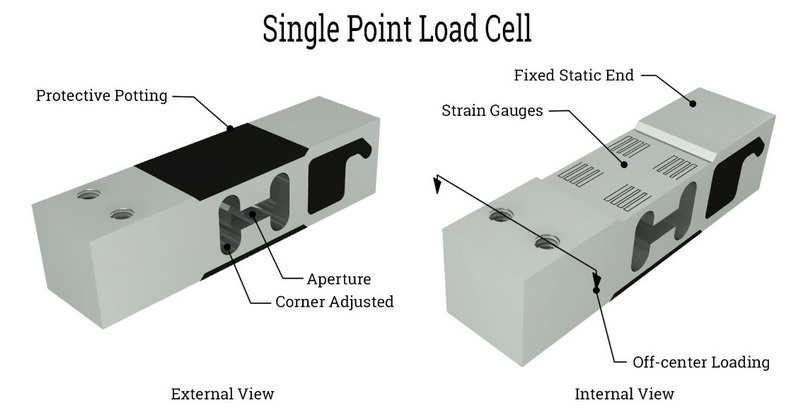

- Strain Gauge Load Cells: These are the most common type and use a strain gauge to measure deformation caused by an applied load.
- Hydraulic Load Cells: These measure weight through the pressure of a liquid within a cylinder.
- Pneumatic Load Cells: These use air pressure to measure weight.
- Capacitive Load Cells: These measure changes in capacitance caused by the load.
Each type has its advantages and is suited for specific applications.
Load cell trimming is vital for ensuring accurate measurements in multi-cell systems where weight distribution may not be uniform. Here are key reasons why trimming is necessary:
- Asymmetrical Loading: In many applications, the load may not be evenly distributed across all load cells. For instance, if a scale is used to weigh materials that can shift during loading (like granular substances), some load cells may bear more weight than others. Trimming helps adjust for these discrepancies.
- Manufacturing Variances: No two load cells are identical due to manufacturing tolerances. Differences in sensitivity and output can lead to inaccuracies if not corrected through trimming.
- Legal Compliance: In commercial applications where weights are used for trade (like grocery scales), accurate measurements are legally required. Trimming ensures compliance with regulations.

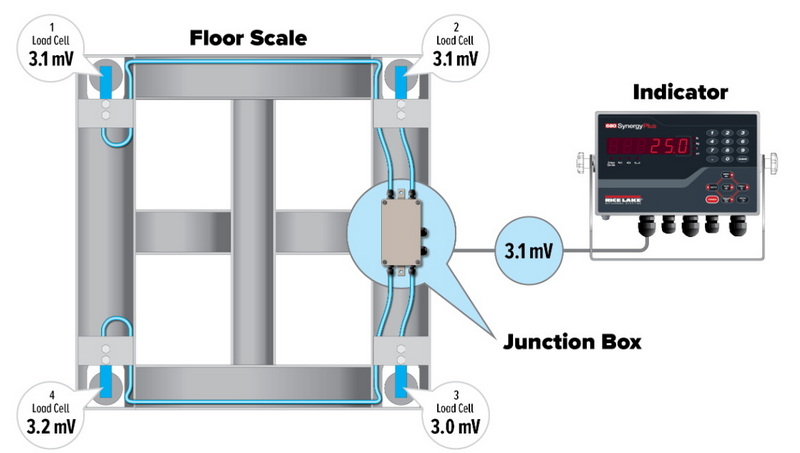

Load cell trimming involves adjusting the output signals from each load cell so that they provide consistent readings when subjected to the same load. This process typically occurs in a junction box where multiple load cell signals are summed together.
1. Initial Setup: Before starting the trimming process, ensure that all connections are secure and that the system is properly set up according to manufacturer specifications.
2. Calibration Weights: Use known calibration weights to test each load cell individually. Place the weight on each corner of the scale or platform sequentially.
3. Adjusting Potentiometers: Each load cell typically has a potentiometer that can be adjusted to change its output signal. By comparing the readings from each load cell with the known weight, adjustments can be made until all readings match.
4. Repeatability Check: After adjustments, it's crucial to repeat the process several times to ensure that the readings remain consistent across multiple tests.
5. Final Verification: Once all adjustments have been made, verify the system's accuracy by placing weights at various points on the scale and checking for consistent readings.
There are two primary methods of load cell trimming:

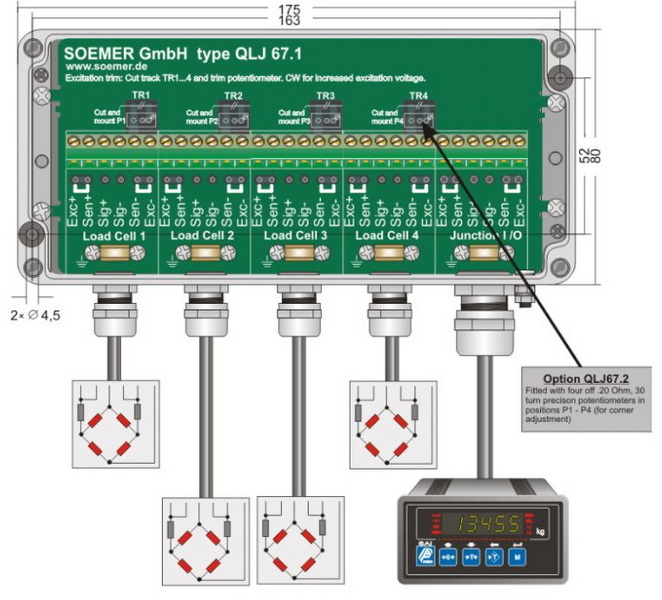

- Excitation Trimming: This method adjusts the excitation voltage supplied to each load cell based on its output characteristics. The load cell with the lowest output receives full excitation voltage, while others receive proportionately less. This helps equalize outputs across all cells.
- Signal Trimming: This more common method involves adjusting the signal output from each load cell directly. It typically uses resistors to create a parallel path for some of the signal, allowing for better matching of outputs among different cells.
Load cell trimming is essential in various industries and applications:
- Industrial Weighing Systems: Used in manufacturing processes where materials are weighed before packaging or shipping.
- Food Industry: Ensures accurate measurements for portion control and compliance with health regulations.
- Transportation: Used in truck scales to ensure accurate freight charges based on weight.
- Medical Equipment: Critical in devices like hospital beds that weigh patients accurately for medication dosing.
Load cell trimming is an essential procedure that enhances the accuracy and reliability of weighing systems by compensating for uneven loading conditions and manufacturing variances among different load cells. Properly trimmed systems ensure compliance with legal standards and improve operational efficiency across various industries.
If load cells are not trimmed, discrepancies in measurements can occur due to uneven loading or differences between individual cells, leading to inaccurate readings which can affect operations and compliance with legal standards.
The frequency of trimming depends on usage conditions; however, it is generally recommended to trim them during initial setup and recalibrate periodically or when significant changes in operation occur.
While basic understanding can help you perform initial checks, it's advisable to have trained technicians perform trimming to ensure accuracy and compliance with standards.
You will typically need calibration weights, a multimeter for measuring resistance and voltage, and screwdrivers for adjusting potentiometers during the trimming process.
Yes, signal trim adjusts the output signal directly while excitation trim adjusts the voltage supplied to each load cell based on their output characteristics; both aim to equalize measurements across multiple cells but use different methods.
