The Signal to Noise Ratio (SNR) is a critical concept in audio engineering, particularly when discussing amplifiers. It is a measure that compares the level of a desired signal to the level of background noise. The higher the SNR, the clearer and more defined the audio signal will be, making it an essential specification for anyone interested in high-quality sound reproduction.
Signal to Noise Ratio is typically expressed in decibels (dB). It quantifies how much stronger the desired signal is compared to the unwanted noise. A higher SNR indicates that the noise floor is lower relative to the signal, which translates into clearer audio playback.

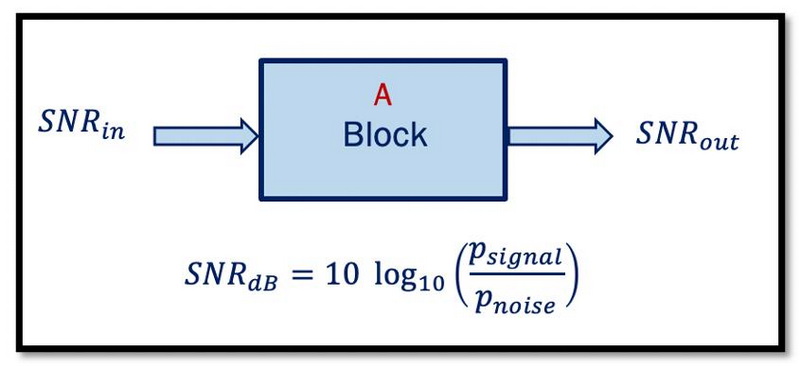

- Formula for SNR:
SNR=10log10(Ps/Pn)
Where Psis the power of the signal and Pnis the power of the noise.
This formula can also be expressed in terms of voltage:
SNR=20log10(Vs/Vn)
Where Vs and Vn are the effective voltages of the signal and noise respectively.
In amplifiers, SNR plays a crucial role in determining sound quality. An amplifier with a high SNR will amplify audio signals without adding significant noise, resulting in a cleaner sound. This is particularly important for music lovers and professionals who rely on accurate sound reproduction.
- Improved Clarity: Higher SNR means that subtle details in music can be heard more clearly.
- Reduced Background Noise: A high SNR minimizes hissing or humming sounds that can detract from the listening experience.
- Better Performance at Low Levels: Amplifiers with high SNR perform better at lower volume levels, allowing for enjoyable listening without needing to crank up the volume.
Several factors can influence an amplifier's SNR:
- Quality of Components: High-quality capacitors, resistors, and transistors can significantly reduce noise levels.
- Design Architecture: Balanced circuits and low-noise amplifiers are designed specifically to minimize interference from other electronic devices.
- Environmental Interference: External factors such as electromagnetic interference from nearby devices can affect SNR.
To measure SNR accurately, one must consider both the output signal and background noise levels. This involves:
1. Generating a Test Signal: A standard test tone is often used.
2. Measuring Output Levels: Measure the output level of the test signal while no other sound is present.
3. Calculating Noise Floor: Measure the output level when no input signal is applied to determine the noise floor.
4. Calculating SNR: Use the measurements to calculate SNR using one of the formulas mentioned above.
The concept of SNR extends beyond just amplifiers; it applies to various audio equipment including:
- Microphones: High-quality microphones will have a high SNR, ensuring that they capture clear audio without interference from ambient noise.
- Digital Audio Converters (DACs): DACs with high SNR provide better sound quality by accurately converting digital signals to analog without introducing significant noise.
- Recording Equipment: In studios, equipment with high SNR ensures that recordings are clean and professional-grade.
Many people misunderstand what constitutes a "good" SNR. Here are some clarifications:
- Higher Isn't Always Better: While a higher SNR generally indicates better performance, it's essential to consider other specifications such as Total Harmonic Distortion (THD) alongside it for a complete picture of audio quality.
- Context Matters: The acceptable level of SNR can vary depending on application. For instance, home audio systems may require an SNR above 90 dB for optimal performance, while professional recording equipment may aim for even higher levels.
Here are some typical benchmarks for different types of audio equipment:
| Equipment Type | Minimum Acceptable SNR |
|---|---|
| Phono Turntable | 60 dB |
| CD Player | 90 dB |
| Amplifier | 90 dB |
| High-Fidelity Speakers | 110 dB |
These benchmarks highlight how different devices require varying levels of clarity and performance based on their intended use.
Improving your system's SNR can significantly enhance audio quality. Here are several techniques:
- Use Quality Components: Invest in high-quality capacitors and resistors that minimize noise generation.
- Proper Grounding: Ensure all components are properly grounded to reduce interference from electrical sources.
- Balanced Connections: Utilize balanced cables (XLR or TRS) which help reject noise picked up along long cable runs.
- Isolation Techniques: Use isolation transformers or power conditioners to eliminate ground loops and other forms of interference.
- Environmental Control: Keep sensitive equipment away from devices that emit electromagnetic interference (like routers or microwaves).
Amplifiers play an essential role in achieving high signal-to-noise ratios. They not only boost signal strength but also help maintain clarity by minimizing added noise. There are various types of amplifiers designed specifically for enhancing audio quality:
- Class A Amplifiers: Known for their excellent linearity and low distortion but can generate more heat and consume more power.
- Class D Amplifiers: More efficient than Class A but may introduce some distortion; however, modern designs have improved significantly in terms of sound quality.
- Operational Amplifiers (Op-Amps): Used in various applications including mixing consoles; they are designed with low noise characteristics for better performance.
Regular testing and calibration of audio equipment can help maintain optimal performance levels. This includes checking connections, ensuring components are functioning correctly, and recalibrating settings as necessary.
1. Frequency Response Testing: Ensures that all frequencies are being reproduced accurately without any dips or peaks.
2. Distortion Measurements: Helps identify any unwanted artifacts introduced by amplifiers or speakers during playback.
3. Noise Floor Assessment: Regular checks on the system's noise floor can help identify any changes that need addressing over time.
In summary, understanding Signal to Noise Ratio (SNR) is vital for anyone interested in high-fidelity audio systems. A high SNR ensures that your listening experience is free from distracting background noise, allowing you to appreciate music in its purest form. When selecting audio equipment, always consider the SNR alongside other specifications to ensure you achieve optimal sound quality.
A low Signal to Noise Ratio indicates that there is more background noise relative to the desired signal, which can result in poor sound quality and clarity.
You can improve your amplifier's SNR by using high-quality components, ensuring proper grounding, and minimizing environmental interference from other electronic devices.
Generally, yes; however, it should be considered alongside other specifications like Total Harmonic Distortion (THD) for a complete assessment of audio quality.
To measure SNR, generate a test signal, measure its output level along with the noise floor when no signal is present, and calculate using appropriate formulas.
For home audio systems, an acceptable Signal to Noise Ratio is typically above 90 dB for optimal performance and clarity.
