Small signal amplifiers are essential components in electronic circuits, specifically designed to amplify weak electrical signals. These amplifiers are widely used in audio systems, communication devices, and various sensor applications. This article will delve into the definition, operation, types, design considerations, and applications of small signal amplifiers, providing a comprehensive understanding of their significance in modern electronics.
A small signal amplifier is an electronic device that amplifies small voltage levels, typically in the range of microvolts (μV). The term "small signal" signifies that the input AC signals are minor enough that the amplifier can be analyzed using linear approximations. This characteristic is crucial for maintaining the integrity of the signal while enhancing its amplitude.
The operation of a small signal amplifier relies on the principles of linear amplification. The amplifier takes a small input signal and increases its amplitude while preserving the original waveform's shape. This process is essential for ensuring that the amplified output can be further processed or transmitted without distortion.
- Active Region: Small signal amplifiers operate in the active region of transistors (BJT or MOSFET), where they can effectively amplify signals.
- Biasing: Proper biasing is crucial for maintaining the transistor in its active region. This involves setting a DC operating point that allows for maximum amplification without distortion.
- Feedback: Negative feedback is often employed to stabilize gain and improve linearity.
There are several types of small signal amplifiers, categorized based on their configuration and application:
- Common Emitter Amplifier: Widely used for voltage amplification; it provides high gain and is characterized by its ability to invert the input signal.
- Common Source Amplifier: Primarily used in FET configurations, offering similar benefits as the common emitter but with different input/output characteristics.
- Common Collector Amplifier (Emitter Follower): Primarily used for impedance matching, this configuration provides low output impedance.
- Common Base Amplifier: Although less common, this type offers high-frequency performance and is utilized in specific RF applications.
- Differential Amplifier: Used to amplify the difference between two input signals, commonly found in instrumentation applications.
- Instrumentation Amplifier: A specialized differential amplifier with high input impedance and low output impedance, ideal for sensor applications.
Designing a small signal amplifier involves several steps:
1. Choosing the Transistor: Select an appropriate transistor (BJT or MOSFET) based on desired gain, frequency response, and application requirements.
2. Biasing Configuration: Implement a biasing network (voltage divider or resistor biasing) to set the DC operating point.
3. Input and Output Coupling: Use coupling capacitors to block DC components while allowing AC signals to pass through.
4. Feedback Mechanism: Incorporate feedback resistors to stabilize gain and improve linearity.

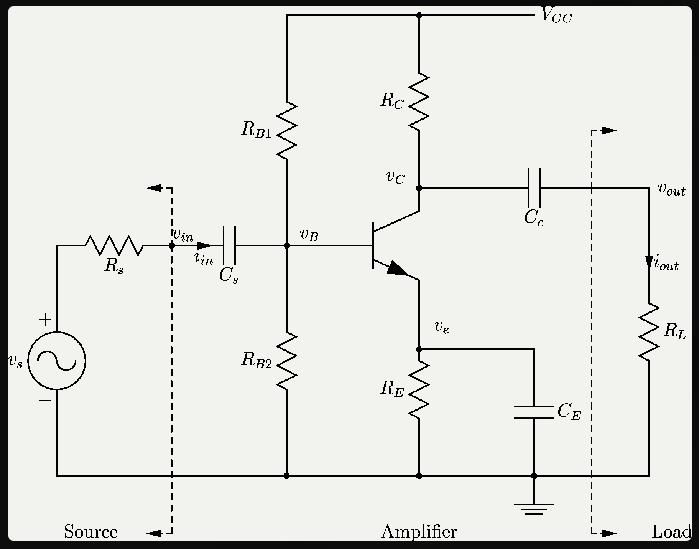

5. Calculating Gain: Determine voltage gain using formulas specific to the amplifier configuration. For example, for a common emitter amplifier:
Av = -RE/RC
The analysis of small signal amplifiers typically involves two main techniques:
In this phase, all AC sources are turned off (replaced by their internal resistances) to establish the quiescent point (Q-point). The Q-point is critical as it determines the operating state of the amplifier.
Once the Q-point is established, AC analysis can be performed by applying a small AC signal and analyzing how it affects circuit behavior. Key parameters evaluated during this analysis include:
- Voltage Divider Biasing: Utilizes resistors to set a stable voltage at the base of a BJT or gate of an FET.
- Emitter Biasing: Involves placing resistors in series with the emitter to stabilize operating points against variations in temperature or transistor parameters.
Small signal amplifiers operate primarily in three regions:
1. Active Region: The transistor operates normally, allowing for amplification.
2. Cut-off Region: The transistor is non-conductive; no amplification occurs.
3. Saturation Region: The transistor conducts fully; while it can amplify, it may also introduce distortion if not managed correctly.
Small signal amplifiers find applications across various fields:
- Audio Equipment: Used in microphones and preamplifiers to boost weak audio signals before further processing.
- Communication Systems: Essential in RF amplifiers for boosting weak signals received from antennas.
- Instrumentation: Used in sensors and measurement devices to amplify low-level signals for accurate readings.
1. Microphones and Audio Devices
- Small signal amplifiers are integral in microphones where they amplify tiny sound waves into usable electrical signals.
- They are also used in audio mixing consoles to ensure clarity and volume before final output stages.
2. RF Communication
- In radio receivers, small signal amplifiers enhance weak incoming signals captured by antennas.
- They help maintain signal integrity over long distances by boosting weak signals before further processing or modulation stages.
3. Medical Instruments
- In medical diagnostics, small signal amplifiers enhance readings from sensors that detect physiological changes (e.g., ECG machines).
- They ensure accurate monitoring by amplifying low-level biological signals for better analysis.
- High Gain: Capable of significantly boosting weak signals.
- Low Noise: Designed to minimize noise interference during amplification.
- Wide Frequency Response: Suitable for various frequencies depending on design specifications.
While small signal amplifiers offer numerous benefits, they also face challenges:
- Noise Sensitivity: Small signals are susceptible to noise, which can affect performance.
- Linearity Issues: Maintaining linearity across a wide range of input signals is crucial for accurate amplification.
- Temperature Variations: Changes in temperature can affect transistor characteristics, leading to variations in gain and performance.
Small signal amplifiers play a vital role in modern electronics by enabling the amplification of weak signals without significantly altering their characteristics. Understanding their operation, design considerations, and applications helps engineers create efficient electronic systems capable of handling various tasks across multiple industries. As technology progresses, these amplifiers will continue to adapt and improve, ensuring their relevance in future electronic designs.
Small signal amplifiers are designed for low-level signals with minimal distortion, while large signal amplifiers handle higher power levels and larger voltage swings.
Gain can be calculated using specific formulas depending on the amplifier configuration; for example, $$ A_v = -\frac{R_C}{R_E} $$ for common emitter configurations.
Common applications include audio equipment (preamplifiers), communication systems (RF amplification), data acquisition systems (sensor signal amplification), and medical devices (monitoring physiological signals).
Biasing sets the DC operating point of the transistor, ensuring it operates within its active region for optimal amplification without distortion.
Challenges include noise sensitivity, maintaining linearity across input ranges, and performance variations due to temperature changes.
