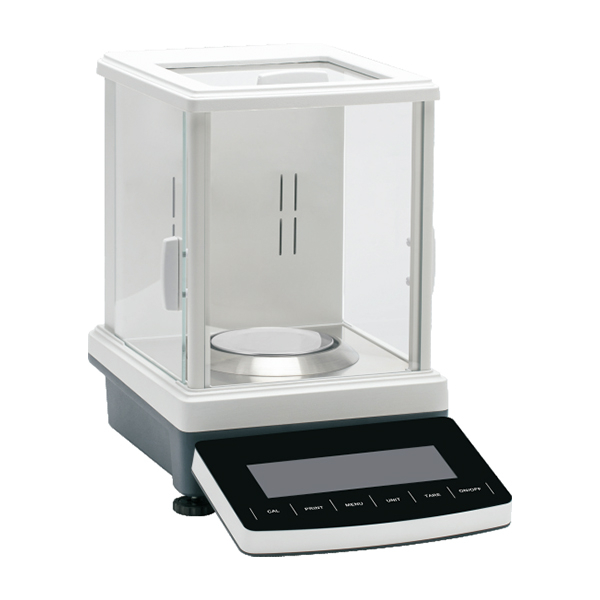

FEB Series Electronic Balance Product Overview |
The FEB Series also supports multiple weighing modes, including standard weighing, dynamic weighing, counting, percentage weighing, density determination, and unit conversion. Standard RS232 and USB communication interfaces enable easy integration with computers, printers, laboratory information management systems (LIMS), and other external devices for efficient data management.
Manufactured with a robust aluminum alloy base and high-strength engineering materials, the balance provides excellent long-term stability while supporting multiple weighing modes and customized communication interfaces.
FEB Series Electronic Balance Technical Features |
Durable Construction
Adopt aluminum alloy base + high-strength PBT material
Full-range Multi-point Temperature Compensation
With multi-point temperature compensation covering 0 to full scale, it ensures long-termstable data output after a single calibration.
Multi-function
It provides functions such as Dynamic weighing, Density determination, etc.
Custom Solutions
Custom solutions including counterweight configuration, communication protocol,unit setting, etc.
）

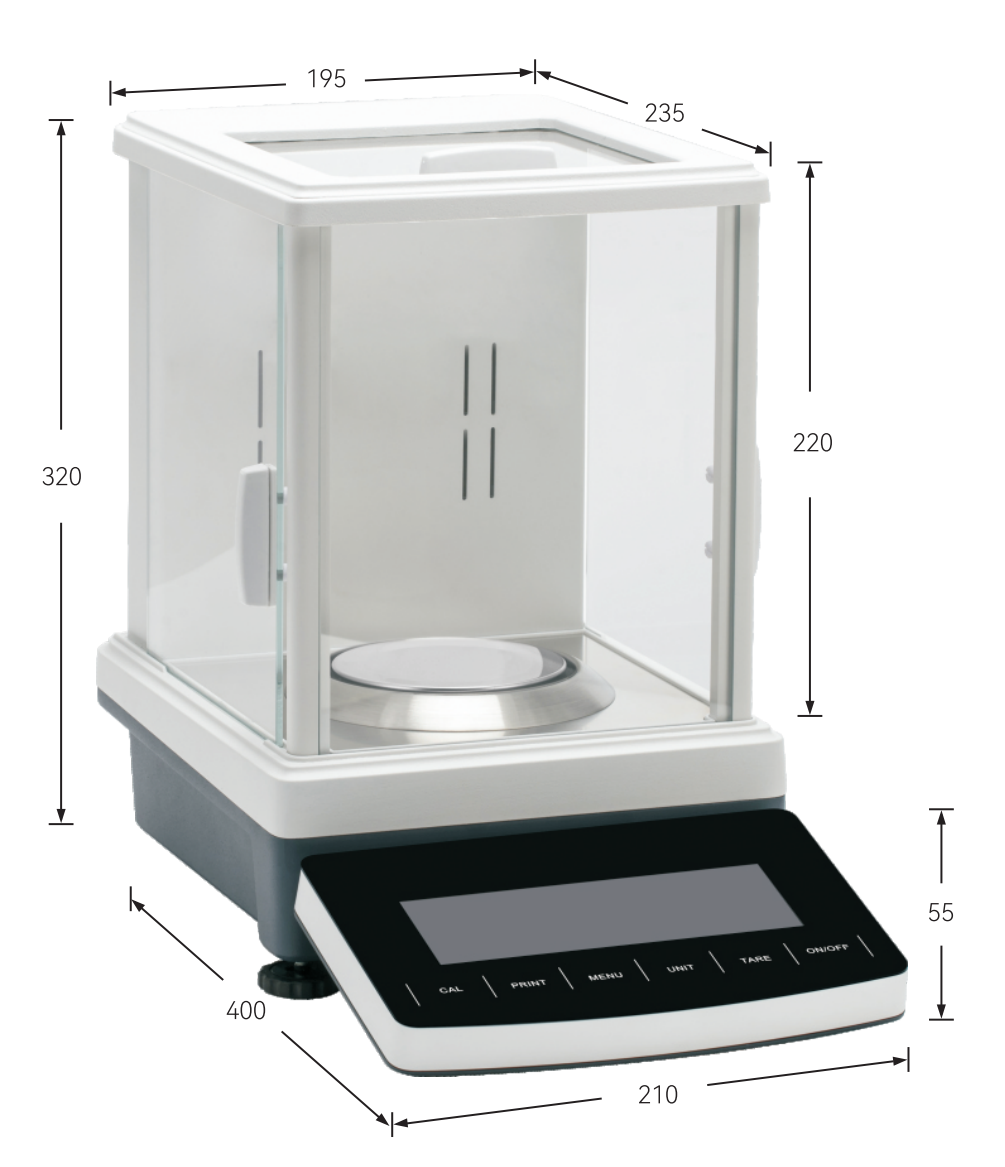

FEB Series Electronic Balance Dimensions（Unit:mm） |
![FEB 尺寸]()
FEB Series Electronic Balance Technical parameters |
FEB series 0.01mg specification |
EX-Cal Model | FEB1035 | FEB1055 | FEB1085 | FEB2035 | FEB2055 | FEB2085 | FEB105 | FEB125 |
| IN-Cal Model | FEB1035N | FEB1055N | FEB1085N | FEB2035N | FEB2055N | FEB2085N | FEB105N | FEB125N |
| Capacity | 120g/31g | 120g/51g | 120g/81g | 220g/31g | 220g/51g | 220g/81g | 100g | 120g |
| Readability | 0.1mg/0.01mg | 0.01mg |
| Stable time | 2s/3s | 3s |
| Preheating | 30-60Mins | 30-60Mins |
| Weighing Units | g/oz/ct/mg | g/oz/ct/mg |
| Min weight | 10mg/1mg | 1mg |
| Repeatability | ±0.1mg/±0.03mg | ±0.03mg |
| Linearity | ±0.2mg/±0.05mg | ±0.05mg |
| Interface | RS232/USB |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
FEB series 0.1mg specification |
EX-Cal Model | FEB124 | FEB224 | FE324 | FEB424 | FEB524 |
| IN-Cal Model | FEB124N | FEB224N | FE324N | FEB424N | FEB524N |
| Capacity | 0-120g
| 0-220g | 0-320g | 0-420g | 0-520g |
| Readability | 0.1mg |
| Stable time | 1.5s | 2s |
| Preheating | 30-60Mins |
| Weighing Units | g/oz/ct/mg |
| Min weight | 10mg |
| Repeatability | ±0.1mg | ±0.2mg |
| Linearity | ±0.2mg | ±0.3mg |
| Interface | RS232/USB |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
FEB series 1mg specification |
EX-Cal Model | FEB503 | FEB603 | FEB1003 | FEB2003 |
| IN-Cal Model | FEB503N | FEB603N | FEB1003N |
|
| Capacity | 0-520g
| 0-620g | 0-1000g | 0-2000g |
| Readability | 1mg |
| Stable time | 2s |
| Preheating | 30-60Mins |
| Weighing Units | g/oz/ct/mg |
| Min weight | 20mg |
| Repeatability | ±1mg |
| Linearity | ±2mg |
| Interface | RS232/USB |
| Pan size | φ90mm | φ90mm | φ90mm/φ110mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
Force sensor manufacturing process |
![Incoming Material Inspection]()
01 Incoming Material Inspection
![Laser Marking]()
02 Laser Marking
![Cleaning and Placement]()
03 Cleaning and Placement
![Pressure curing]()
04 Pressure curing
![Bridge Assembly Welding]()
05 Bridge Assembly Welding
![Test Compensation]()
06 Test Compensation
![Adhesive application and curing]()
07 Adhesive application and curing
![Laser welding]()
08 Laser welding
![Finished Product Re-testing]()
09 Finished Product Re-testing
![Cleaning and packaging]()
10 Cleaning and packaging
Non-standard customisation process |
![Non-Standard Customization Process]()
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
FEB Series Electronic Balance Applications |
![Pharmaceutical Laboratories]()
Pharmaceutical Laboratories
![Chemical Analysis]()
Chemical Analysis
![Jewelry Industry]()
Jewelry Industry
![Food Laboratories]()
Food Laboratories
![Industrial Quality Control]()
Industrial Quality Control
![Environmental Laboratories]()
Environmental Laboratories
Frequently Asked Questions about FEB Series Electronic Balance |
Q1：What weighing capacities are available?
A: The FEB series covers capacities from 31 g up to 2000 g, depending on the model selected.
Q2：What accuracy options are available?
A:
Q3：Does the balance support RS232 communication?
A: Yes. Standard models support RS232 and USB communication for easy data transfer.
Q4：Can you provide customized functions?
A: Yes. We support OEM/ODM customization, including communication protocols, software functions, weighing units, and special application requirements.
Q5：What industries use this balance?
A:It is widely used in pharmaceutical, chemical, laboratory, education, electronics, jewelry, food, and research applications.
