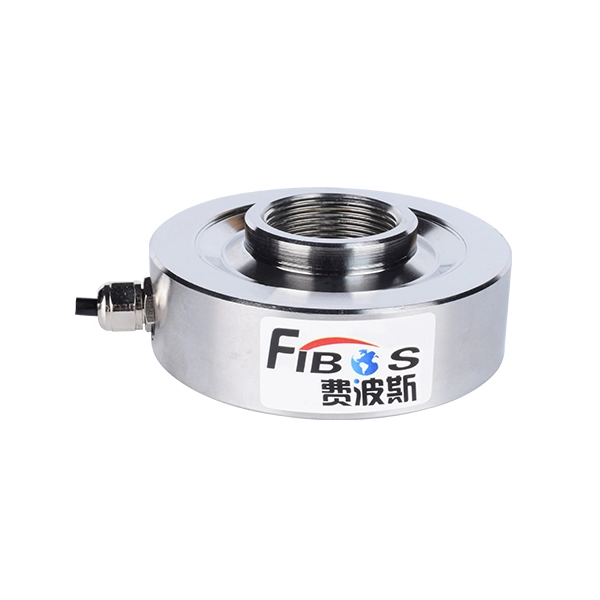

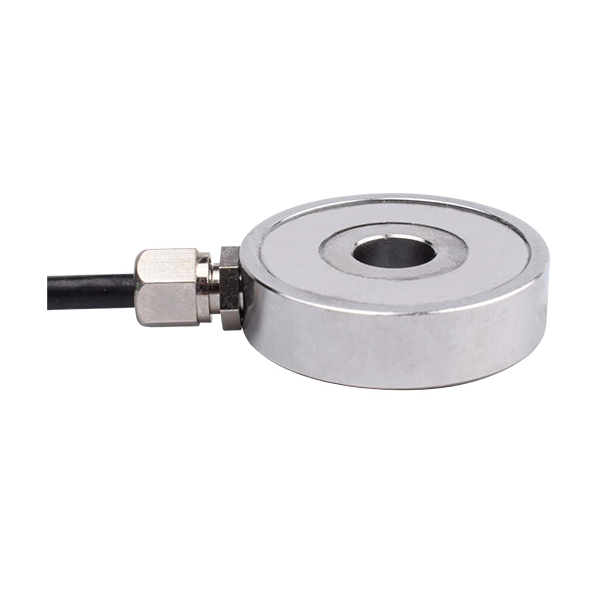

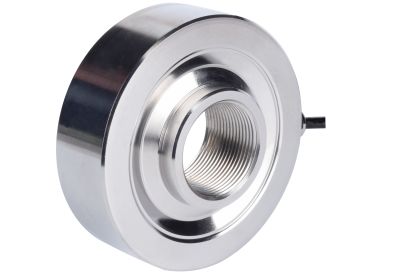

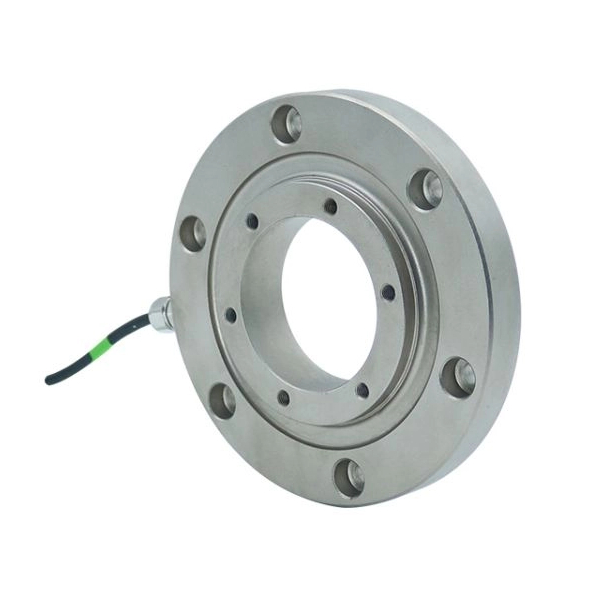

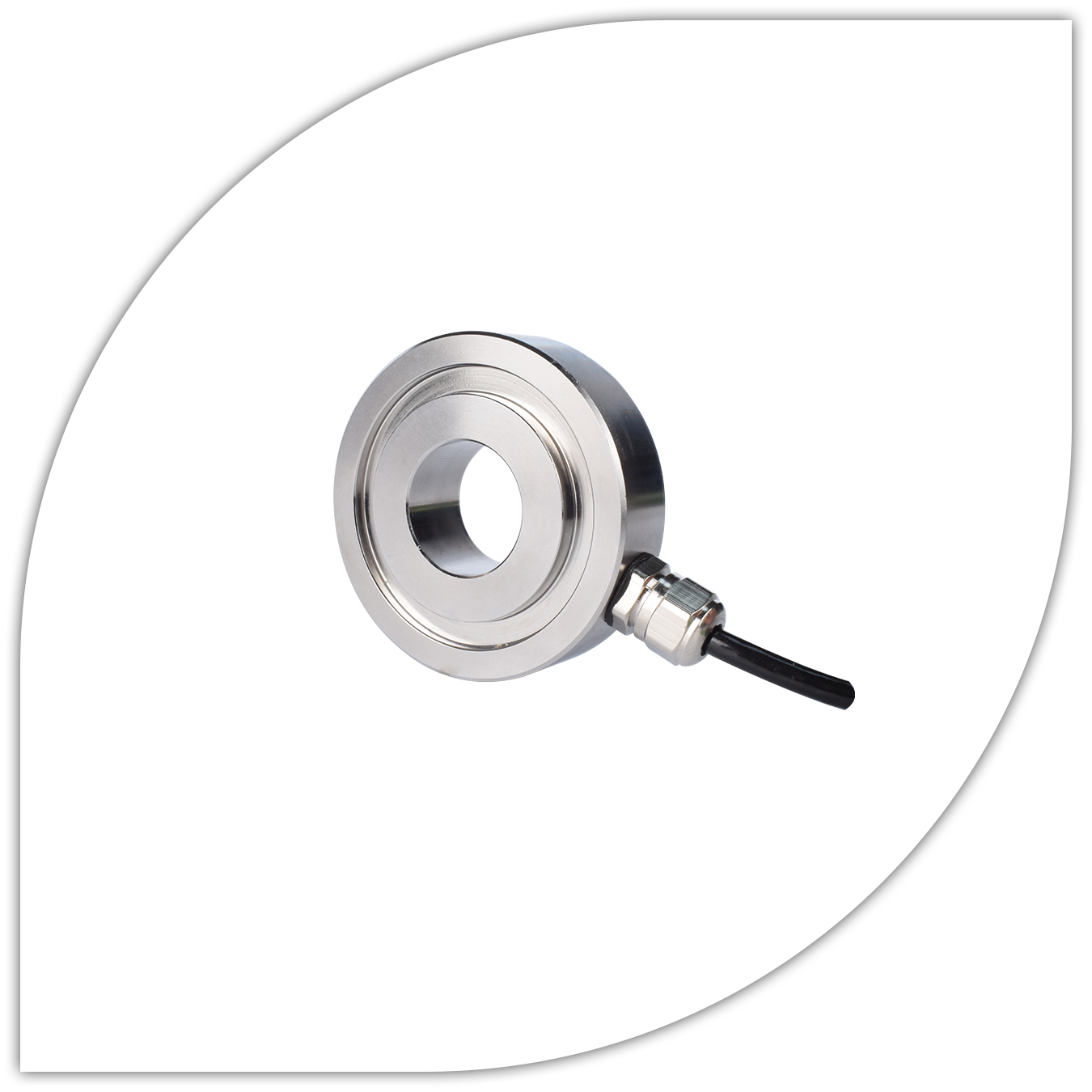

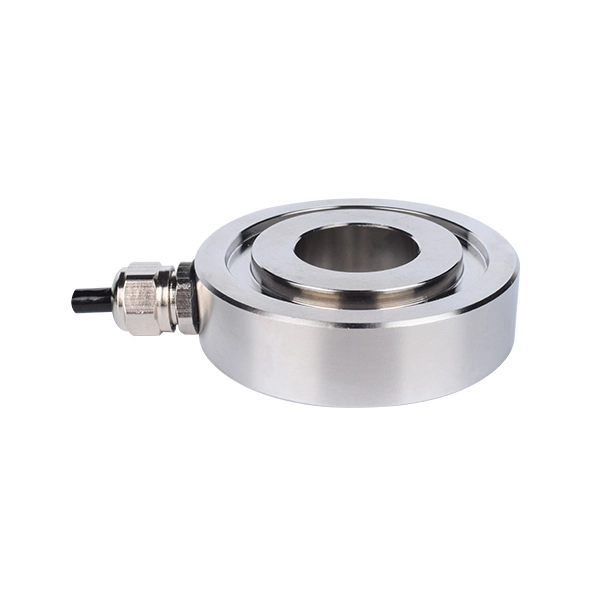

Central Hole Sensor

Fibos self-developed production of medium-hole sensors using the principle of resistance strain, with high-precision circular parallel beam strain structure, the measurement range covers 5kg ~ 75t, the measurement accuracy is better than 0.5% F.S.; sensor strain beam uniformly affixed to the 4/8 pieces of half-bridge resistance strain gages to measure the strain in the process of the force and through the full-bridge output mv-level voltage signals to the process of the pressure of the change of the linear feedback.
This kind of sensors are mainly used to monitor the M6 ~ M36 and other bolt preload and other automation equipment, compression changes in the work process; sensors using high-strength alloy steel and stainless steel, the appearance of rust-proof treatment, high yield strength of the material, anti-interference and good safety performance, the response frequency is higher than 5KHZ, the service life of up to more than 3 million times, the safety of the overload of 150%, the limit of the overload can reach 200%; the sensor can work normally between -20 ~ 80 ℃, but also can be customised high and low temperature version, the limit temperature range of -40 ~ 200 ℃; the sensor output signal cable using high-quality drag chain line, bending service life is high; the protection level can reach IP65.

Our engineers can deeply understand your project requirements and product specifications and provide corresponding technical solutions.

Products include weighing, force measurement, torque, piezoelectric sensors, etc.
More than 80% of the projects we undertake are customized. Our customization services include size, internal structure, technical parameters and other customized accessories.

Our engineering team organizes training courses regularly to keep the technical team at the forefront of the industry and proficient in dealing with various technical challenges.

We provide detailed technical documents and information, such as specifications, force installation drawings, 3D drawings, etc.

Production on Demand Order
FIBOS Sensor focuses on customer demands and flexibly adjusts the production process and schedule to ensure the timely delivery of high-quality customized products. Regardless of the bigger or smaller order, we respond quickly and provide solutions that meet our customers' requirements.

Core Parts Manufacturing and Assembly
We have advanced force sensor processing equipment and skilled technical workers, who can accurately process all kinds of high-precision force sensor, in strict accordance with the assembly process for sensor assembly, to ensure stable and reliable product quality, and to provide customers with excellent performance and experience.

Force Sensor Production and Control
Perform organization and a series of inspections on force sensor components such as strain gauges, resistor bridge, connector, and end cables. Each force sensor is rigorously tested and evaluated to ensure its quality is up to industry-leading levels, enhancing product performance and reliability.

Automated Manufacturing Capacity and Continuous Optimization

We continue to invest in research and development and the introduction of advanced automated production equipment. With an automation rate of 60%, and continuous optimization of production processes, to ensure that we are always at the forefront of the industry and meet the changing needs of our customers.

   Product one-time pass rate ≥98%

   Customer satisfaction ≥98%

   First Acceptance Yield (PQC→OQC): ≥98%

   Finished Products (OQC): 100% inspection

For over a decade, FIBOS has been engaged in manufacturing micro force sensor and load cells. We are proud to support all of our customers, regardless of their size.

 Load cell capacity range from 100g to 1000ton
 Reduction delivery time by 40%.
