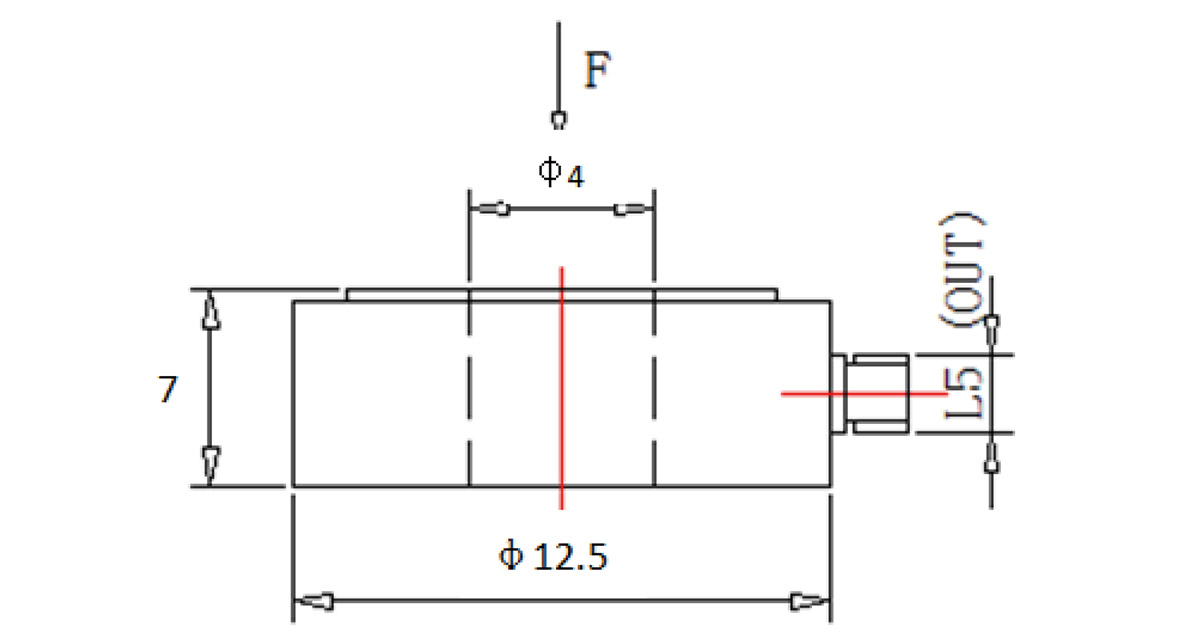

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |
Typical Static Error Curve( average fromthree times) | Function Feature |
| ▶ Ring structure, fast dynamic measurement response ▶ Long static calibration duration ▶ Passive, charge-equipped instrument |
| Specifications |
| Static Parameters | |
| Sensitivity(20±5℃) | ~4pC/N |
| Measurement range | 0~5KN |
| Overload capacity | 120% |
| Linearity | ≤1%F.S |
| Hysteresis | ≤1%F.S |
| Repeatability | ≤1%F.S |
| Capacitance | ~6.8pF |
| Insulation resistance | ＞1013Ω |
| Dynamic Parameters | |
| Resonant frequency | >75kHz |
| Operating Temp.range | -54～+120 ℃ |
| Physical Parameters | |
| Weight | 4 g |
| Housing material | Stainless steel |
| Installation | Thru hole Φ4 |
| Sensitive meterial | Quartz |
| Output method | Side L5 |
| Attachment | |
| Connection cable | Double-ended L5 low-noise cablex2m |
| Delivery Configurations |
Hot Tags: High dynamic piezoelectric ring force sensor, Piezoelectric Force Sensor, Piezoelectric Load Cell, wholesale, custom, Customized, oem, manufacturers, factory, suppliers
to facilitate your design of workpiece.
