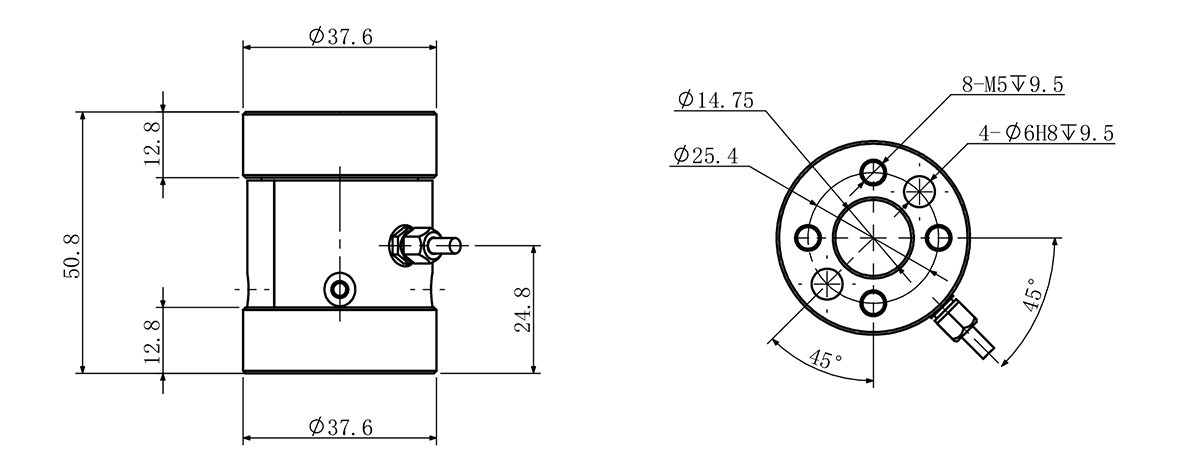

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

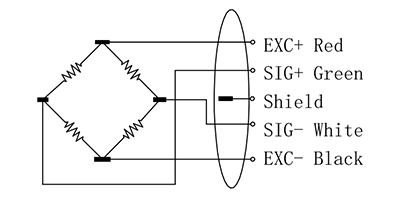

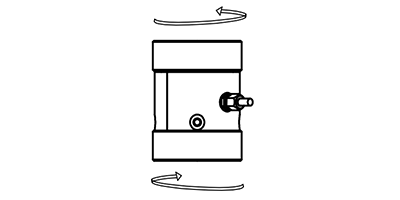

| Load Direction | Wiring |
 |
 |
| Specifications |
Specification |
Technique |
Capacity |
1,2,3,5,6,10,20,50,100,150N.m |
Sensitivity |
1.5±10%mV/V |
Zero balance |
±0.02mV/V |
Creep |
≤0.1%F.S. |
Non-linearity |
≤0.1%F.S. |
Hysteresis |
≤0.1%F.S. |
Repeatability |
≤0.05%F.S. |
Input impedance |
350±5Ω |
Output impedance |
350±5Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥5000MΩ/100V(DC) |
Recommended excitation |
5~15V |
Maximum excitation |
20V |
Compensated temp. range |
-10~60℃ |
Operating temp. range |
-20~80℃ |
Safe overload |
120%F.S. |
Ultimate overload |
150%F.S. |
Cable size |
Φ3x3000mm |
Material |
Stainless steel/Aluminium Alloy |

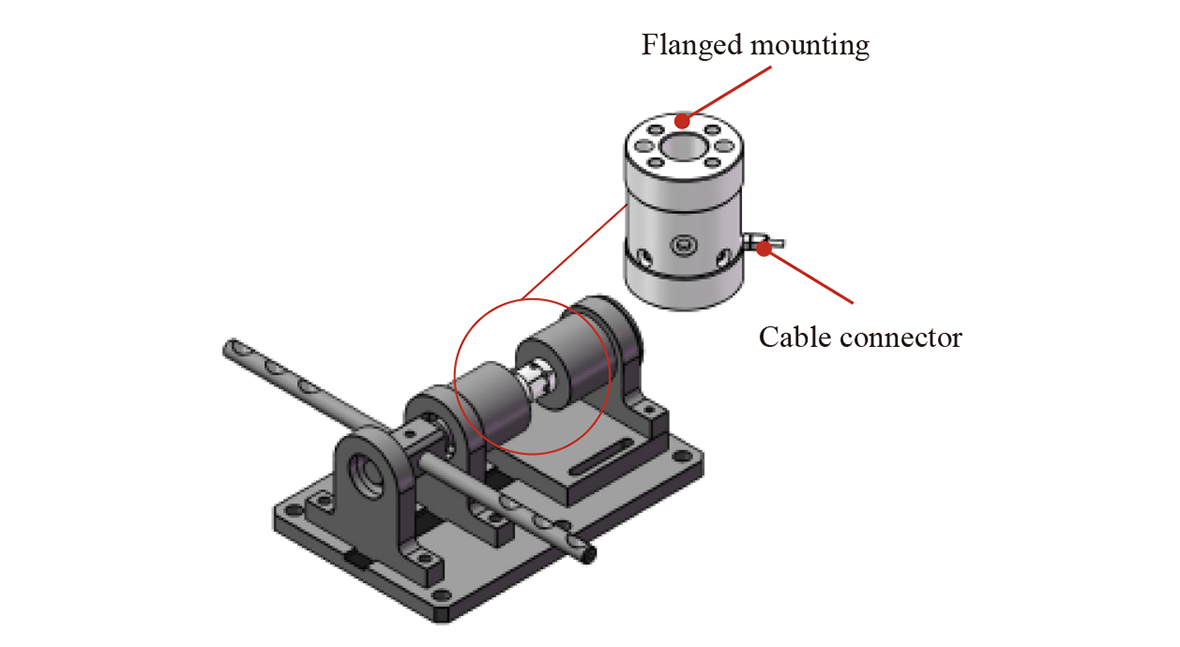

| Installation |
| Delivery Configurations |
