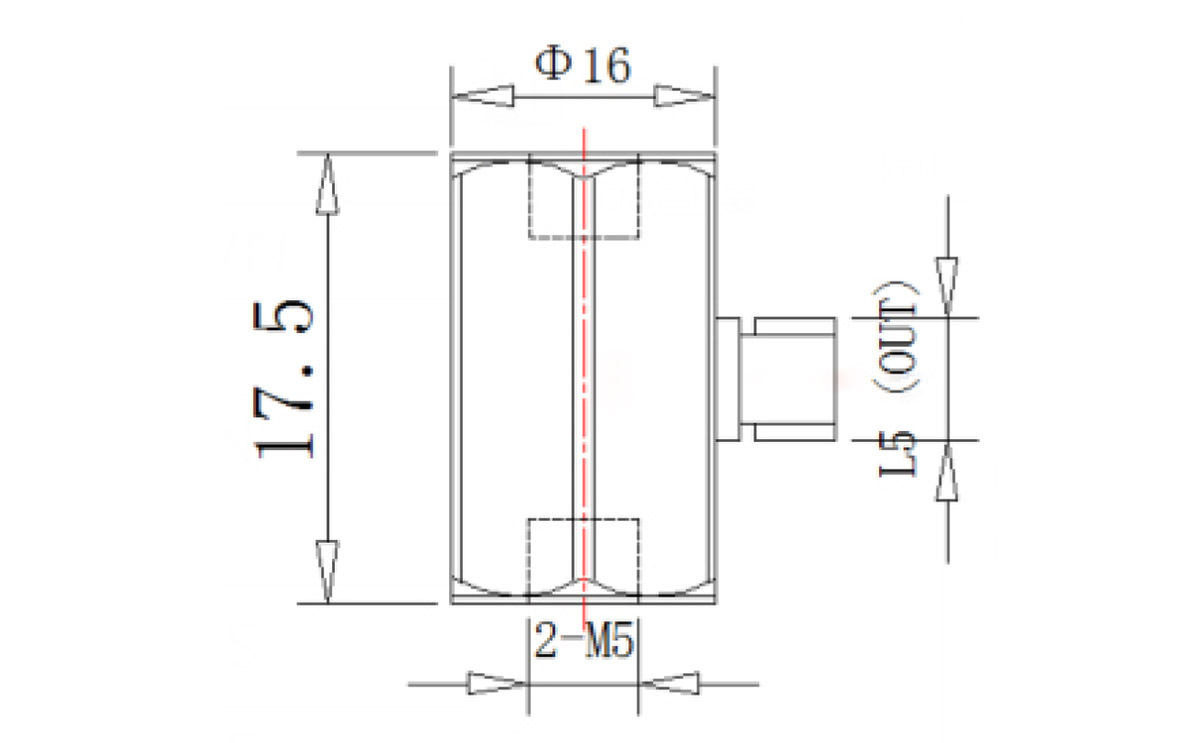

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

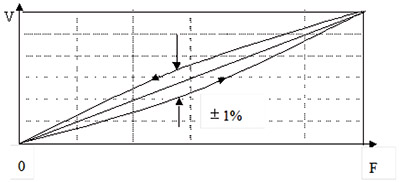

Typical Static Error Curve( average fromthree times) | Function Feature |
| ▶ Fast dynamic measurement response ▶ Long static calibration duration ▶ Small tension and compression sensitivity error |
| Specifications |
| Static Parameters | |
| Sensitivity(20±5℃) | ~3pC/N |
| Tension sensitivity error | ≤2% |
| Measurement range | ±5kN |
| Overload capacity | 120% |
| Linearity | ≤1%F.S |
| Hysteresis | ≤1%F.S |
| Repeatability | ≤1%F.S |
| Capacitance | ~7PF |
| Insulation resistance | ＞1013Ω |
| Dynamic Parameters | |
| Resonant frequency | >70kHz |
| Operating Temp.range | -54～+120 ℃ |
| Physical Parameters | |
| Weight | ~15g |
| Housing material | Stainless steel |
| Installation | 2-M5 |
| Sensitive meterial | Quartz |
| Output method | Side M5 |
| Attachment | |
| Connection cable | Double-ended L5 low-noise cablex2m |
| Delivery Configurations |
Hot Tags: Bidirectional piezoelectric tension compression load cell, wholesale, custom, Customized, oem, manufacturers, factory, suppliers
to facilitate your design of workpiece.
