FA386
FIBOS
40t
≤0.1
L:110mm;H:360mm;W:68mm
Stainless steel

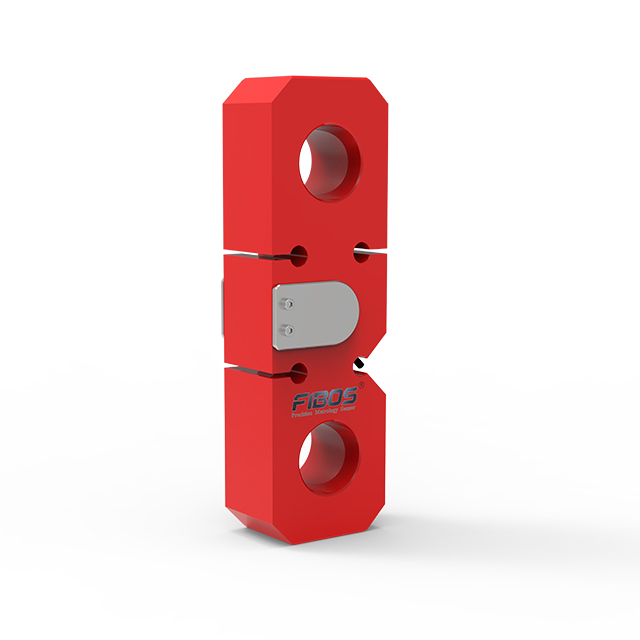

Hoist Tension Load Cell 40t FA386 Product Description |
The FIBOS FA386 is a high-capacity stainless steel tension load cell designed for heavy-duty industrial force measurement applications. With a rated capacity of 40 tons, it delivers accurate and stable performance with combined error ≤0.1%, excellent repeatability, and low hysteresis. Its robust construction with IP68 protection ensures reliable operation in harsh environments, including dust and moisture exposure. The optimized strain gauge design provides consistent performance under continuous and dynamic loading conditions, while the wide operating temperature range (-20°C to 80°C) enhances versatility. It is ideal for applications such as crane weighing, lifting systems, and heavy load monitoring.
Load Cell Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Load Direction | Load Cell Wiring |
|  |
Heavy Duty Tension Load Cell 70t FA384 Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 40t |
Deflection at Full Scale | |
Fundamental resonance frequency (f_G) | |
Safe Overload | 150%F.S. |
Operating Temperature | -20~80℃ |
Ingress Protection (IP) | IP68 |
Cable | 30/120m |
Spring Element Material | Stainless steel |
weight | |
Loading Direction | Tension |
Sensor Accuracy Parameters | |
Combined Error | ≤0.1%F.S. |
Non-linearity | ≤0.2%F.S. |
Hysteresis | ≤0.2%F.S. |
Repeatability | ≤0.1%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.0.05%F.S./10℃ |
Electrical Parameters | |
Rated Output | 1.6±10%mV/V |
Excitation Voltage | 5~10V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended force sensor combinations |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: The FA386 Tension type load cell is widely used in industrial force measurement applications such as crane scales, Wire rope pulling application, tensile testing etc.
A: The FA384 is made of high-quality Alloy steel offering excellent corrosion resistance and mechanical strength, ensuring stable performance in harsh environments such as humid or dusty conditions.
A:Yes, the FA384 is a load cell that can measure tension force only, making it suitable for various force testing applications.
A:The FA384 offers excellent linearity, repeatability, and long-term stability. It also provides strong resistance to interference, ensuring reliable measurement results.
A:Yes, FIBOS offers customization options including capacity range, dimensions, thread specifications, output signals, and adaptations for special environments.
