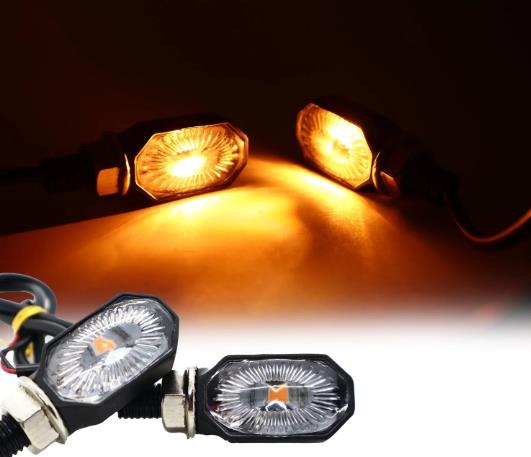

The indicator lamp, often referred to as the turn signal indicator, plays a crucial role in vehicle safety by visually alerting the driver that the turn signals are activated. This article will delve into the mechanics of how indicator lamps work, their importance in vehicle operation, and how they relate to turn signals.

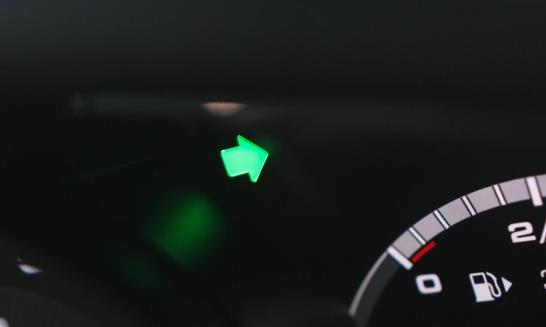

Indicator lamps are typically found on the dashboard of vehicles and are designed to provide visual feedback to the driver when the turn signals are engaged. These lamps are usually green or blue and are an essential component of the vehicle's lighting system. They ensure that the driver is aware of the turn signals' status, which is critical for safe driving.

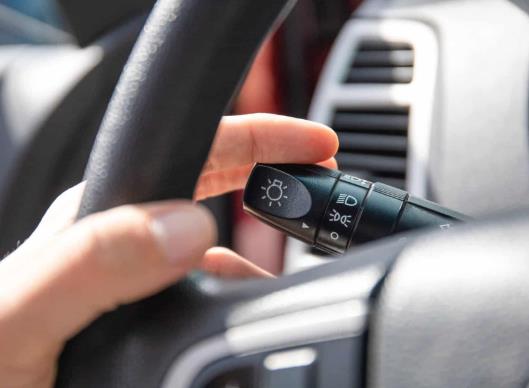

Indicator lamps work in conjunction with the vehicle's turn signal system. When the driver activates the turn signal stalk, the corresponding turn signal lights on the vehicle begin to flash. Simultaneously, the indicator lamp on the dashboard also starts flashing to provide visual confirmation to the driver that the turn signal is active.
In older vehicles, the turn signal system often used thermal flashers, which relied on a heating element and a bimetallic strip to create the flashing effect. Modern vehicles, however, use electronic flashers or solid-state relays integrated into the vehicle's control module, which provide a more reliable and consistent flashing rate.
Indicator lamps are vital for several reasons:
1. Safety: They ensure the driver is aware that the turn signals are activated, which is crucial for communicating intentions to other road users.
2. Legal Compliance: In many jurisdictions, vehicles are required to have functioning turn signal indicators to comply with safety regulations.
3. Convenience: Indicator lamps provide a quick visual check for the driver, ensuring they don't forget to turn off the signals after completing a turn.
When upgrading to LED turn signals, some vehicles may experience issues with the indicator lamp. LEDs consume less power than traditional bulbs, which can affect the operation of the flasher unit. In some cases, the indicator lamp may not function correctly or may flicker. To resolve this, diode kits can be used to isolate the indicator lamp circuit and ensure proper operation.
Wiring an indicator lamp involves connecting it to the turn signal circuit. For vehicles with a single indicator lamp, diodes are often used to isolate the circuit and prevent both turn signals from activating the lamp simultaneously.
Here's a simplified explanation of how diodes are used in wiring an indicator lamp:
- Diode 1: Connects the anode to the left turn signal and the cathode to the indicator lamp.
- Diode 2: Connects the anode to the right turn signal and the cathode to the indicator lamp.
- Indicator Lamp: The other terminal of the lamp is connected to ground.
This setup ensures that only the active turn signal illuminates the indicator lamp.
Modern vehicles often integrate advanced features into their turn signal systems, including:
- Lane Change Assist: Some vehicles offer lane change assist systems that automatically activate the turn signals when changing lanes.
- Blind Spot Monitoring: This feature alerts drivers to vehicles in their blind spots, often using the turn signal indicators to provide additional warnings.
- Adaptive Lighting: Some vehicles adjust their headlight beams based on the turn signals to improve visibility when turning.
These features enhance safety and convenience, making driving more intuitive and responsive.
If an indicator lamp fails to function, it can be due to several reasons:
- Faulty Bulb: The most common issue is a burnt-out bulb. Replacing the bulb usually resolves the problem.
- Wiring Issues: Faulty wiring or loose connections can prevent the lamp from working. Inspecting and repairing the wiring is necessary.
- Faulty Flasher Unit: In some cases, the flasher unit may be malfunctioning. Replacing the flasher unit can resolve the issue.
For those interested in customizing their vehicle's lighting system, there are several options available:
- LED Upgrades: Replacing traditional bulbs with LEDs can improve visibility and reduce power consumption.
- Custom Indicator Lamps: Some enthusiasts choose to install custom indicator lamps with unique designs or colors to personalize their vehicle's interior.
However, any modifications should ensure compliance with local safety regulations to avoid legal issues.
In conclusion, indicator lamps are an integral part of a vehicle's turn signal system, providing essential visual feedback to the driver. Understanding how they work and their importance in vehicle safety is crucial for all drivers. Whether you're upgrading to LED turn signals or simply ensuring your vehicle's systems are functioning correctly, knowing the basics of indicator lamps can enhance your driving experience.
The purpose of an indicator lamp is to provide visual confirmation to the driver that the turn signals are activated. This ensures the driver is aware of the signals' status, which is important for safe driving.
LED turn signals consume less power than traditional bulbs, which can affect the operation of the flasher unit. This may cause the indicator lamp to not function correctly or to flicker.
Diodes help by isolating the circuit and preventing both turn signals from activating the indicator lamp simultaneously. They allow current to flow in only one direction, ensuring that only the active turn signal illuminates the lamp.
If an indicator lamp fails, the driver may not receive visual confirmation that the turn signals are activated. This can lead to forgetting to turn off the signals, which can confuse other drivers.
Yes, in many jurisdictions, vehicles are required to have functioning turn signal indicators to comply with safety regulations. This ensures that drivers can communicate their intentions clearly to other road users.
