Wiring turn signal indicator LEDs involves several steps and components to ensure proper function and safety. This guide will walk you through the process, including the use of relays, load resistors, and diode kits.
Turn signals are essential for vehicle safety, indicating the driver's intentions to other road users. When upgrading to LED turn signals, it's crucial to address potential issues like hyper flashing, which can occur due to the lower power consumption of LEDs compared to traditional incandescent bulbs. Hyper flashing can be annoying and may lead to fines if not corrected.
- LED Turn Signal Bulbs: These are available in various styles, such as 1157 or 2057, which fit into standard sockets. LEDs offer brighter light and longer lifespan compared to incandescent bulbs.
- Relays: Used for safer wiring, especially when dealing with multiple lights or complex circuits. Relays help reduce the load on the vehicle's electrical system.
- Load Resistors: Necessary to prevent hyper flashing by mimicking the load of incandescent bulbs. They are usually 50W 6 OHM resistors.
- Diode Kits: Useful for fixing issues where the turn signal light stays on instead of flashing. Diode kits ensure proper operation by isolating the circuit.
Identify the anode (positive) and cathode (negative) of the LED. The longer leg is usually the anode. Incorrect polarity can damage the LED.

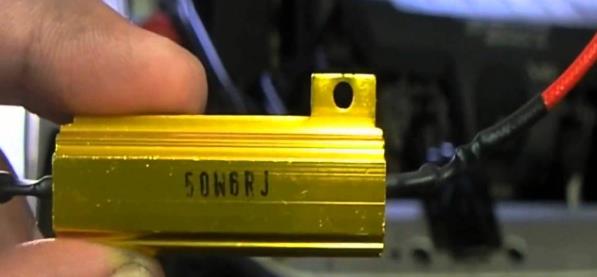

Select a resistor to limit current and prevent overheating. For turn signals, 50W 6 OHM load resistors are commonly used. These resistors should be mounted in a well-ventilated area to prevent overheating.

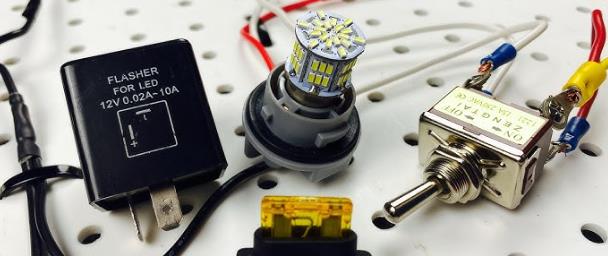

Assemble the LED, resistor, connecting wires, and a power source. Ensure the power is off during assembly to avoid electrical shock.

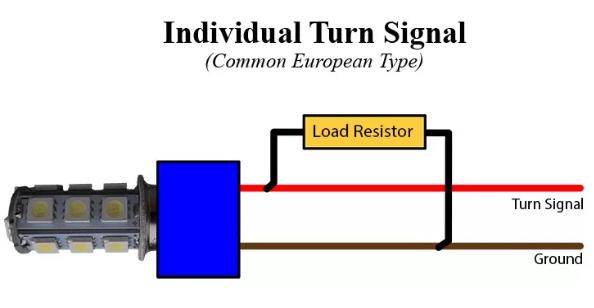

- For Single Filament Bulbs (e.g., 1156, 3156, 7440): Connect the load resistor in parallel between the positive and negative wires. This setup ensures that the turn signal flasher sees the correct load.
- For Double Filament Bulbs (e.g., 1157, 3157, 7443): Connect the load resistor between the brighter/blinker wire and the negative wire. This configuration is necessary because double filament bulbs have separate circuits for the brake and turn signal functions.
Test the turn signal to ensure it flashes correctly without hyper flashing. If hyper flashing persists, check the resistor installation or consider using a different type of resistor.
Relays can simplify complex wiring and ensure safety by isolating the circuit from the vehicle's electronics. This is particularly useful when installing multiple LED lights or when dealing with high-power applications.
Example Relay Wiring:
- Input from Turn Signal Switch → Relay Coil
- Relay Contacts → LED Turn Signal Bulbs
Relays also help reduce the load on the vehicle's wiring, which can prevent overheating and electrical fires.
Diode kits can fix issues where the turn signal light stays on instead of flashing, especially when using LED bulbs. This is common in vehicles where the turn signal circuit is shared with other functions.
1. Locate the Dash Indicator Light Wires: Use a wiring diagram to find these wires. They are usually connected to the dashboard turn signal indicators.
2. Cut and Splice Wires: Cut the wires and connect the diode kit according to the manufacturer's instructions. Ensure the diodes are installed correctly to prevent incorrect operation.
3. Test the Turn Signals: Ensure proper flashing after installation. If issues persist, check the wiring for any mistakes.
- Hyper Flashing: Check that load resistors are installed correctly. If the issue persists, try using a different type of resistor or a flasher relay designed for LEDs.
- No Flashing: Ensure all connections are secure and the power source is functioning. Check for any blown fuses or damaged wiring.
- Incorrect Polarity: Verify that the LED is connected with the correct polarity. Incorrect polarity can prevent the LED from working.
- Always disconnect the battery before starting work to prevent electrical shock.
- Use protective gear like gloves and safety glasses when working with electrical systems.
- Ensure all wiring is secure and protected from moisture and heat sources.
Wiring turn signal indicator LEDs requires attention to detail and the right components. By following these steps and using relays, load resistors, or diode kits as needed, you can ensure safe and proper operation of your vehicle's turn signals.
Hyper flashing occurs because LED bulbs consume less power than incandescent bulbs, causing the turn signal flasher to think a bulb is out and flash more rapidly. Load resistors can fix this issue by mimicking the load of incandescent bulbs.
Install load resistors in parallel with the LED turn signal bulbs. For single filament bulbs, connect the resistor between the positive and negative wires. For double filament bulbs, connect it between the brighter/blinker wire and the negative wire.
Diode kits are used to fix issues where the turn signal light stays illuminated instead of flashing when using LED bulbs. They ensure proper operation by isolating the circuit.
Relays are used for safer wiring, especially in complex circuits or when multiple lights are involved. They isolate the circuit from the vehicle's electronics, reducing the risk of electrical shock or damage.
Use a wiring diagram specific to your vehicle to identify the correct wires. You can also use a multimeter to test the wires while activating the turn signals.
