FA9200
FIBOS
460kN
≤2%F.S.
See the detailed dimensions table
Stainless steel
Load Cell Pin Product Description |

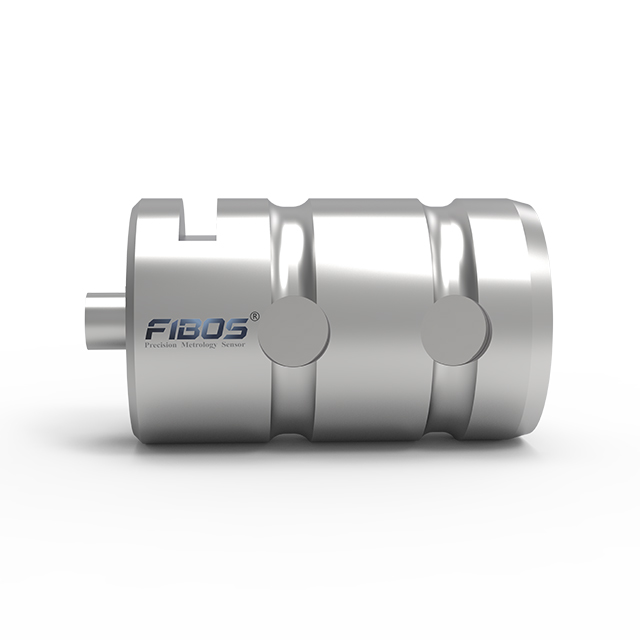

FA9200 shaft pin sensor, with a range of 460 kN, accuracy ≤ 2%, IP67 protection, operating temperature range of -40 to 80℃. It uses 17-4PH stainless steel elastomer, a bidirectional torsion and bending resistance structure, integrates an amplification circuit to output standard analog signals, and is suitable for force measurement in harsh conditions such as heavy lifting, port machinery, and industrial automation.
Load Cell Pin Function Feature |

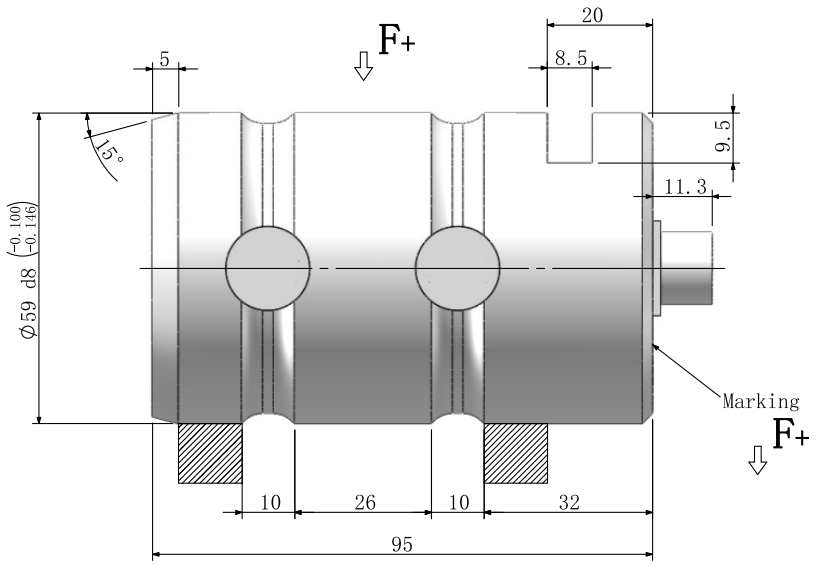

Load Cell Pin Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

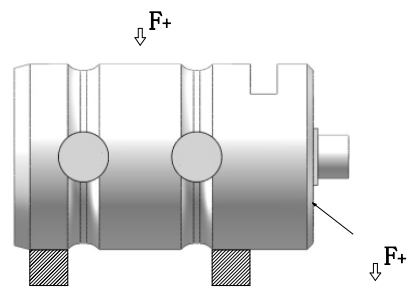

Load Cell Pin Load Direction | Load Cell Pin Wiring |
 |  |
Load Cell Pin Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 460kN |
Deflection at Full Scale | - |
Fundamental resonance frequency (f_G) | - |
Safe Overload | 130%F.S. |
Operating Temperature | -40~80℃ |
Ingress Protection (IP) | IP67 |
Cable | φ6x5m |
Spring Element Material | Stainless steel |
weight | - |
Loading Direction | Two-way |
Sensor Accuracy Parameters | |
Combined Error | ≤2%F.S. |
Non-linearity | ≤2%F.S. |
Repeatability | ≤2%F.S. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Excitation Voltage | 5~10V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9200 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.
A:The FA9200 supports bidirectional force measurement, allowing detection of both tension and compression.
A:The combined accuracy is ≤2%, with excellent linearity (≤2%), repeatability (≤2%), and hysteresis performance.
A: The FA9200 has an IP65 rating and operates reliably in temperatures from -40°C to +80°C, suitable for harsh environments.
A:
Ensure proper alignment with mounting holes
Avoid side loads and impact forces
Install according to load direction
Secure properly to prevent loosening
to facilitate your design of workpiece.
