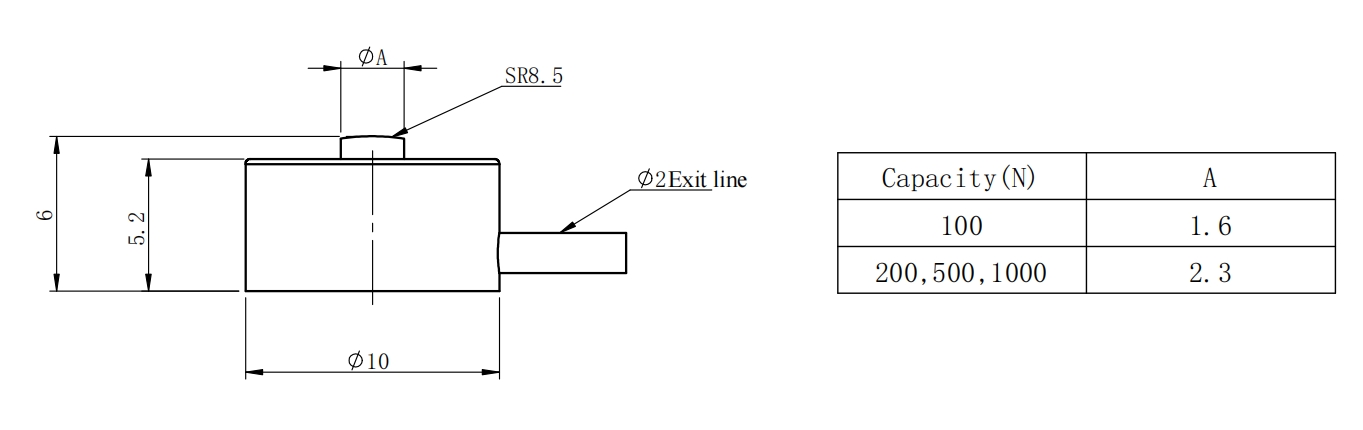

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

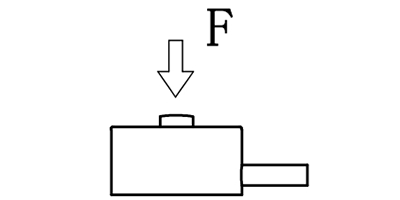

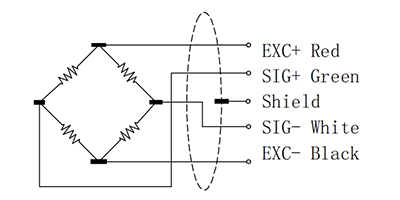

| Load Direction | Wiring |
 |
 |
| Specifications |
Specification |
Technique |
Capacity |
50,100,200,500,1000N |
Sensitivity |
1.0±30%mV/V |
Zero balance |
±2%F.S. |
Creep(30min) |
≤0.5%F.S. |
Non-linearity |
≤0.5%F.S. |
Hysteresis |
≤0.2%F.S. |
Repeatability |
≤0.2%F.S. |
Input impedance |
600~800Ω |
Output impedance |
600~800Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥5000MΩ/100V(DC) |
Recommended excitation |
5~10V |
Maximum excitation |
15V |
Compensated temp. range |
-10~60℃ |
Operating temp. range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
Φ2*3000mm |
Weight |
0.02kg |
Material |
Stainless steel |

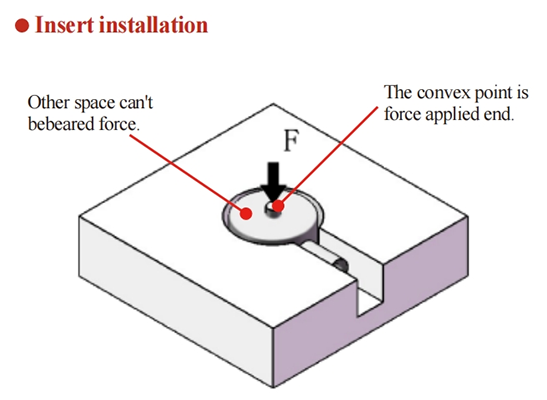

| Installation |
| Delivery Configurations |
Hot Tags: Mini Load Button Force Sensor, China, wholesale, custom, Customized, oem, manufacturers, factory, suppliers
to facilitate your design of workpiece.
