You are here: Home » Products » Tension Sensor » PD2535 Shaft-mounted Tension Sensors

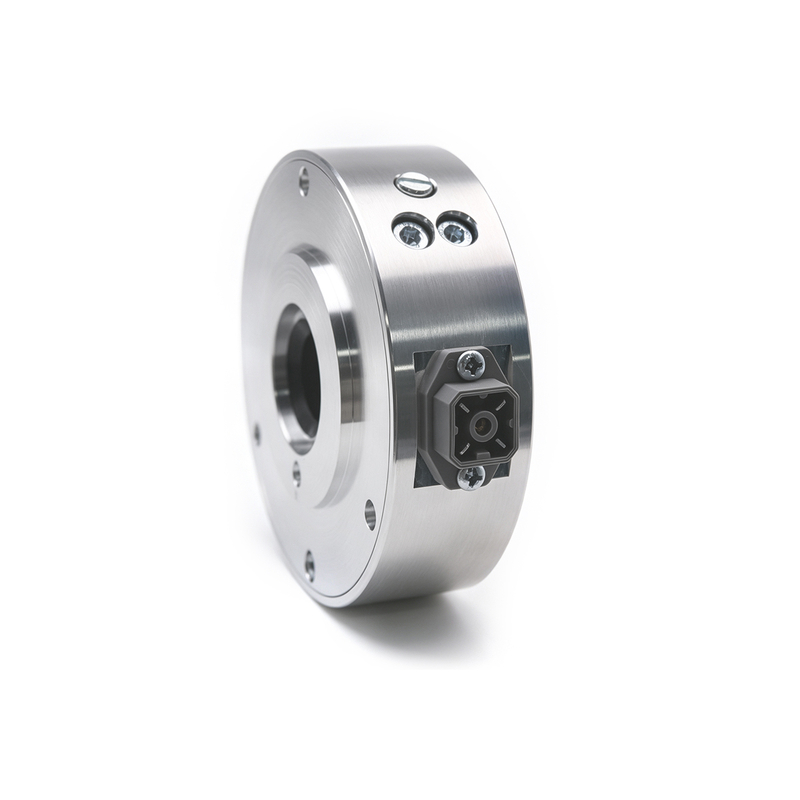

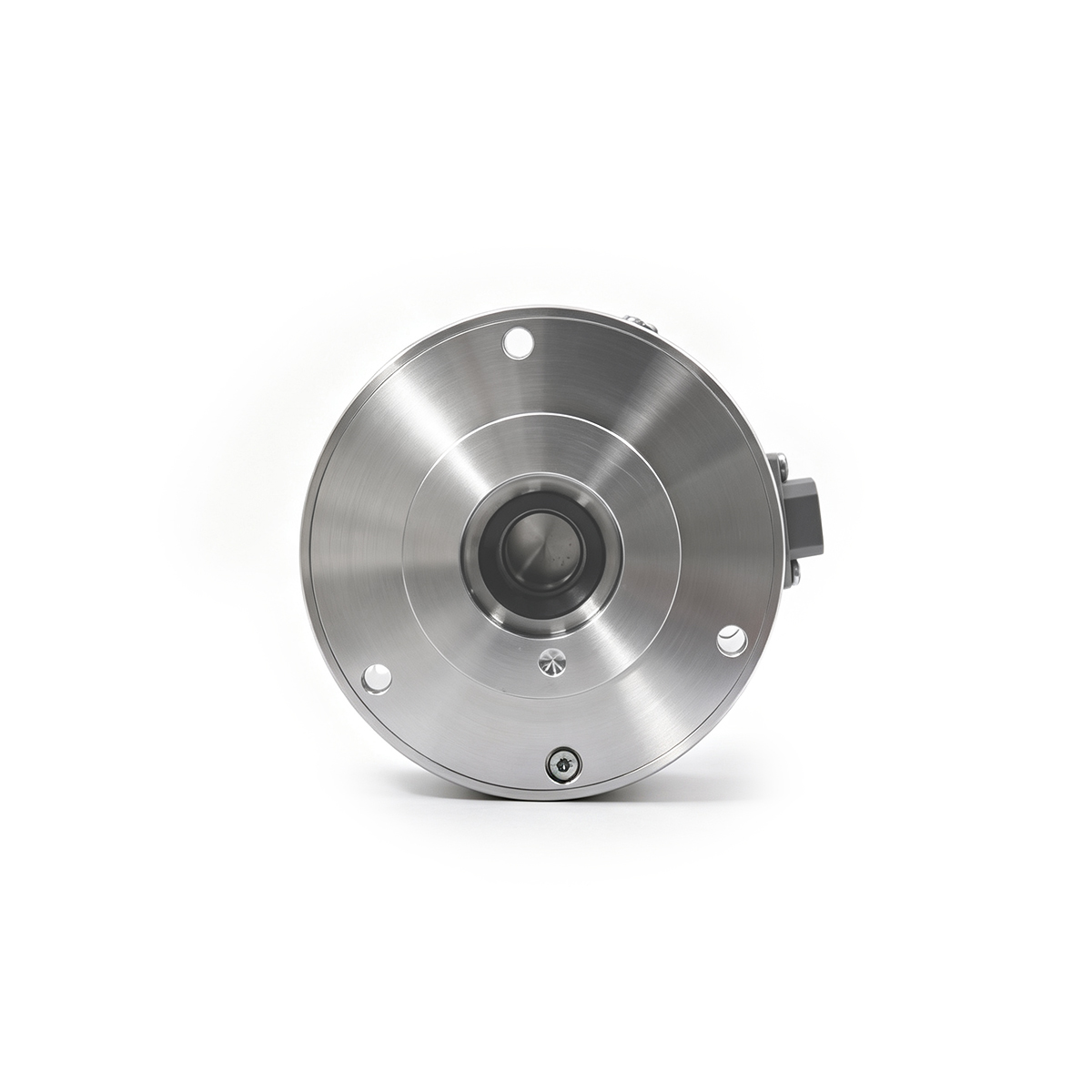

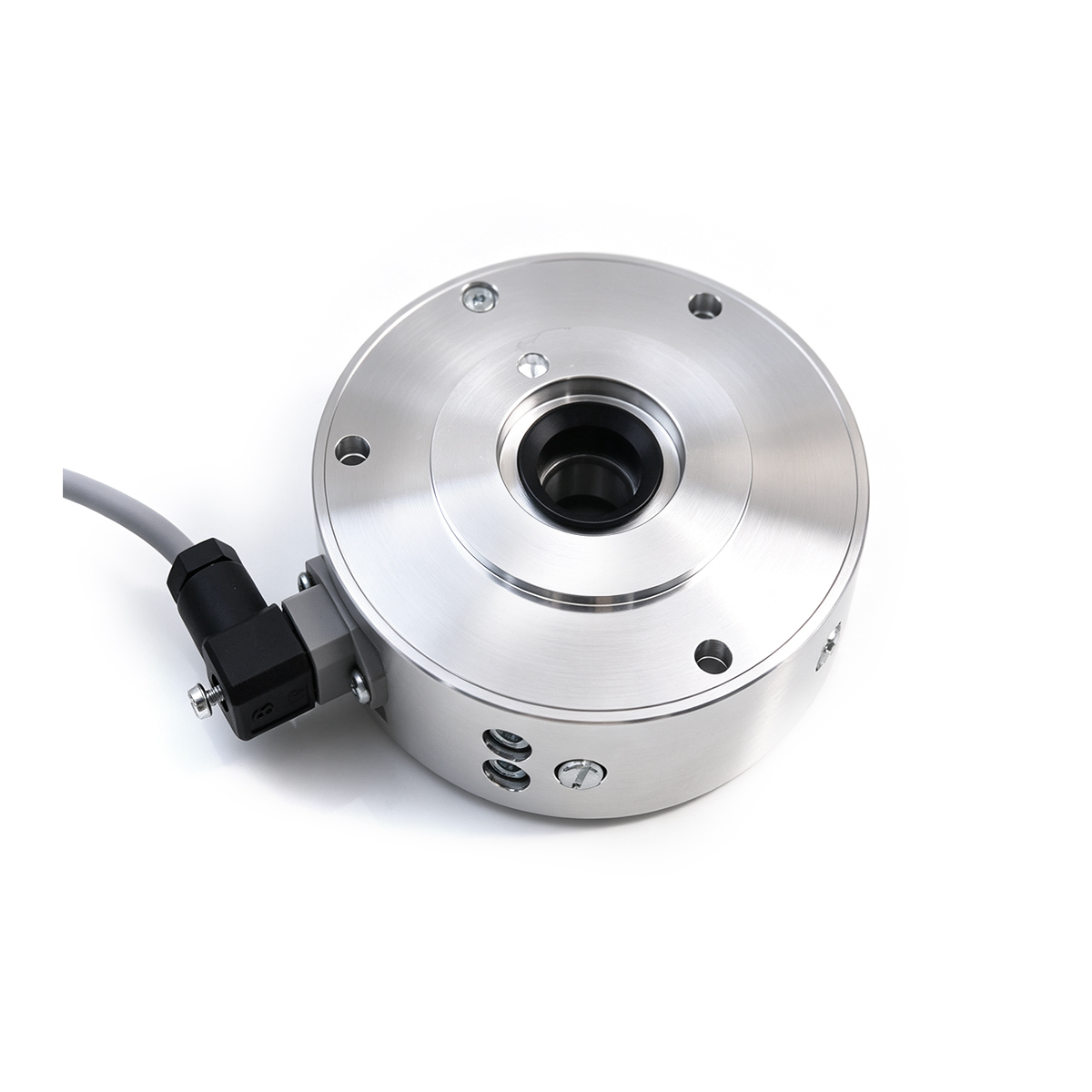

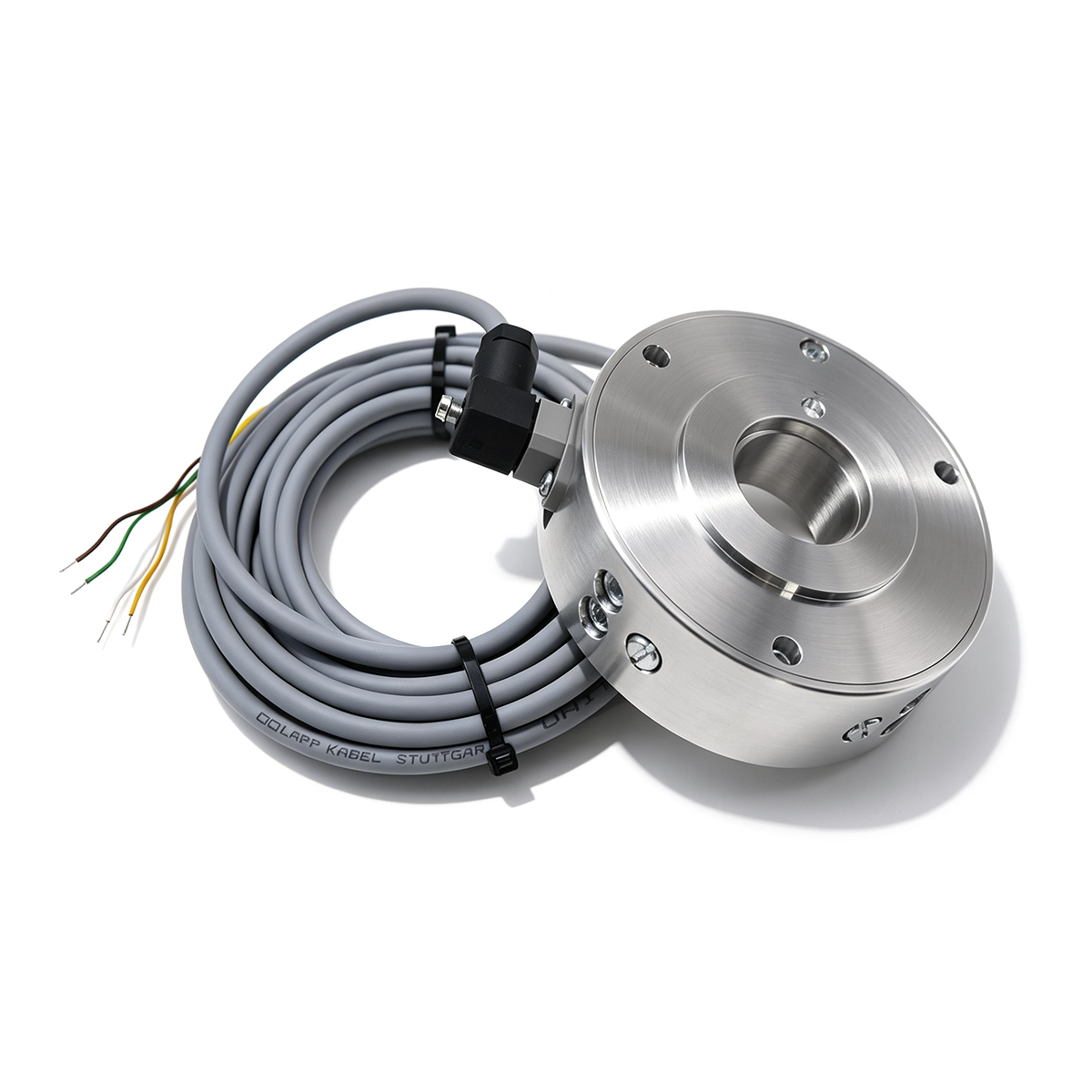

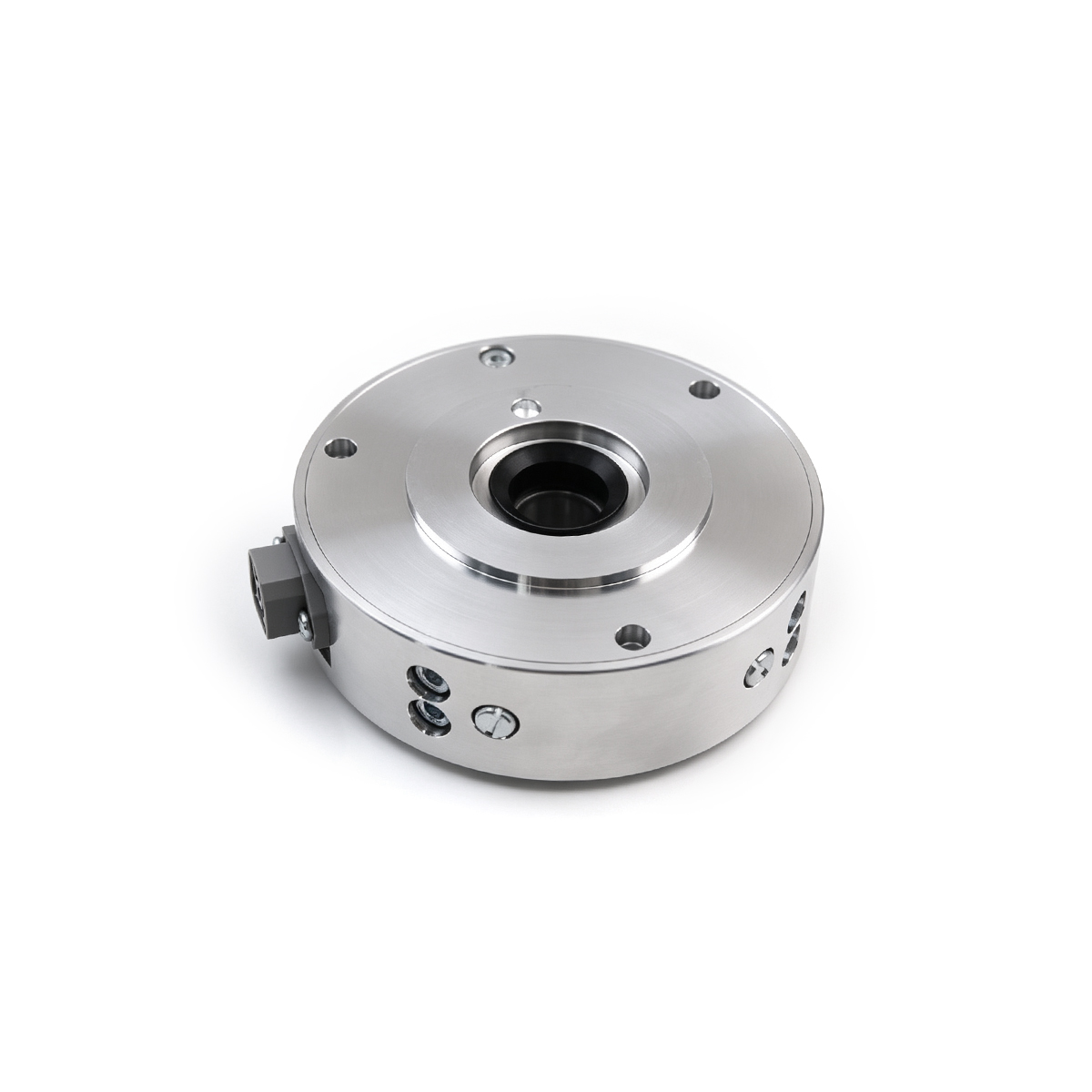

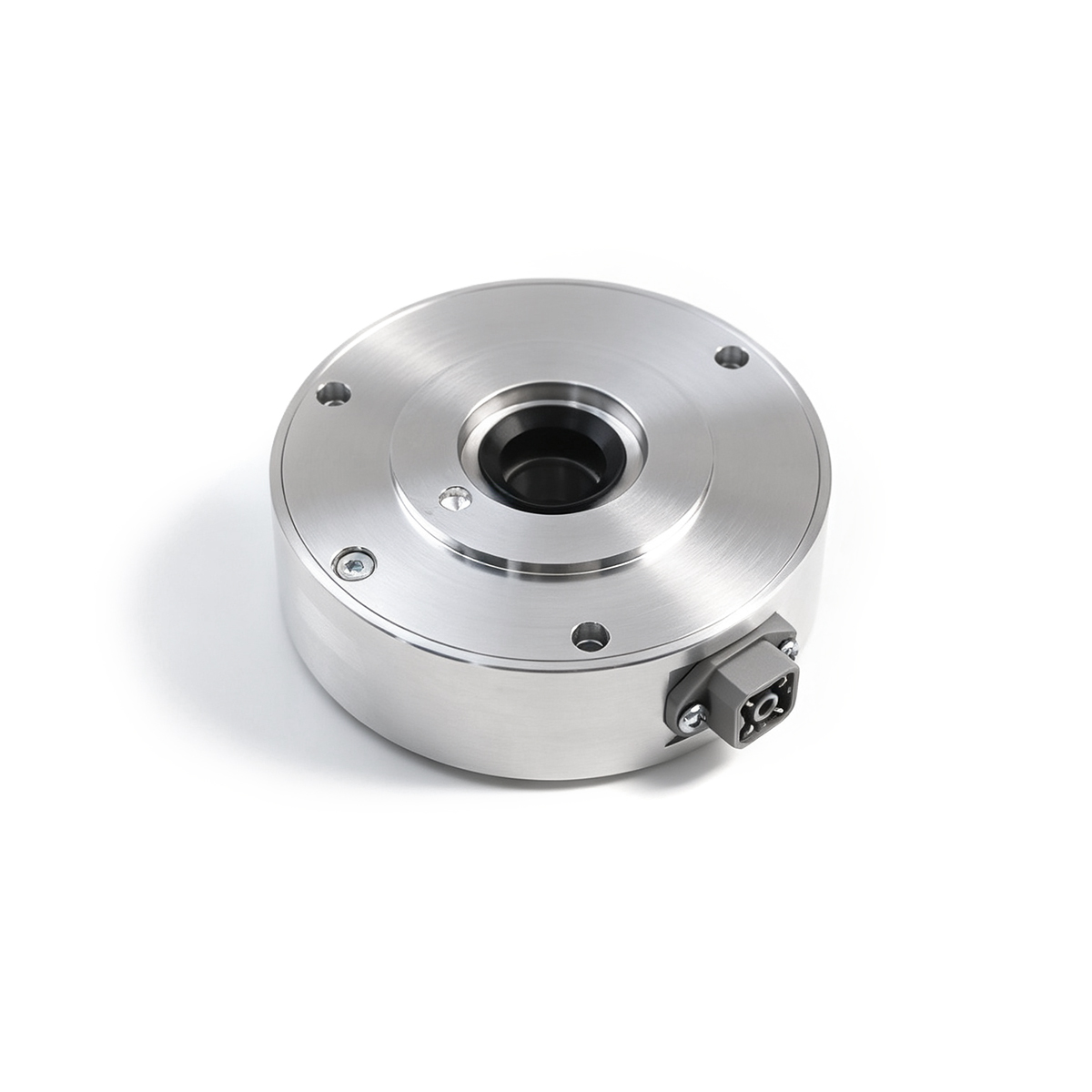

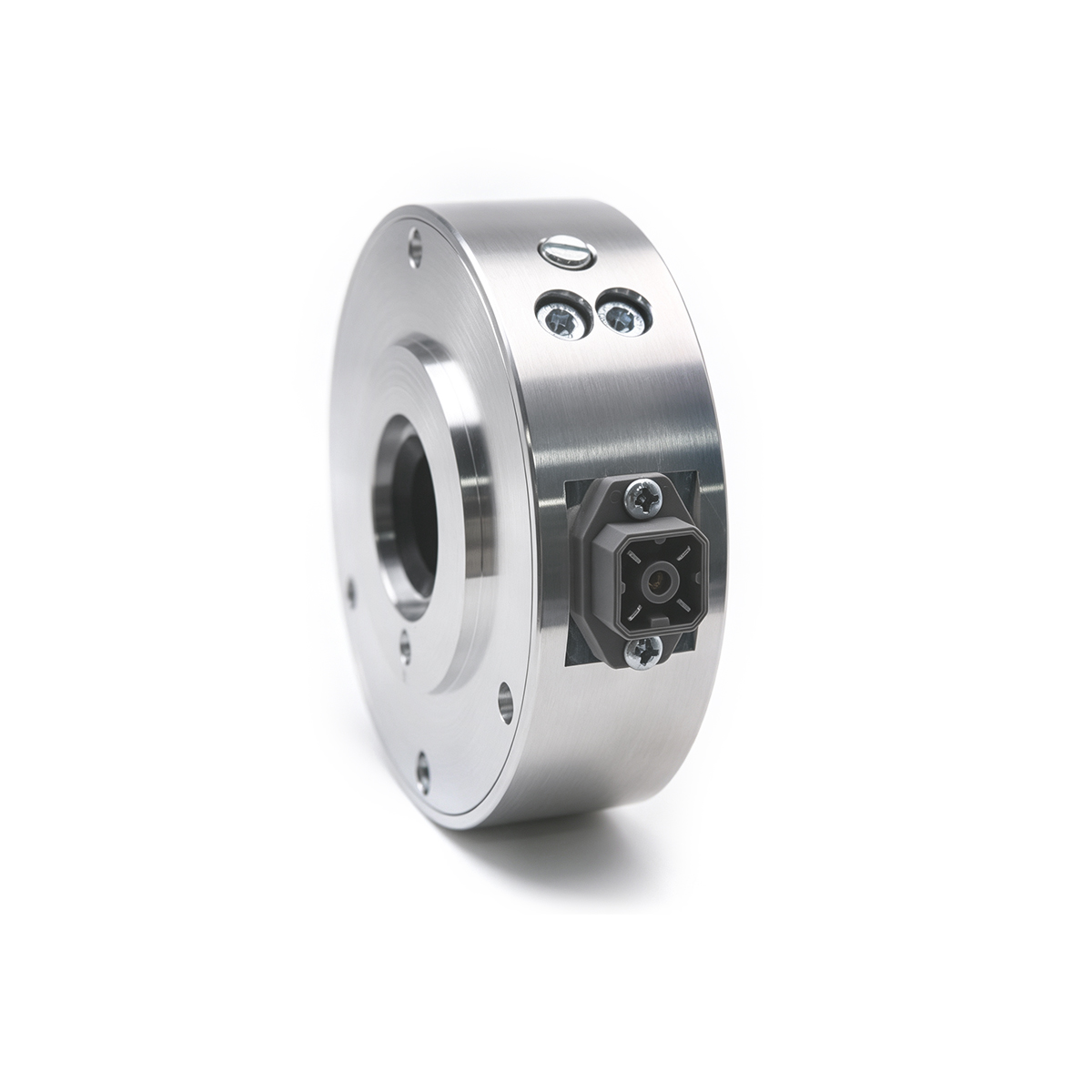

PD2535 Shaft-mounted Tension Sensors

The PD25 series shaft-mounted tension sensors operate on the resistance strain gauge principle
and are highly accurate devices for measuring the tension of belt-type materials.

Model:
PD2535
Brand:
FIBOS
Capacity:
> 10-fold range of quantification


Availability:



Inquire

Product Description

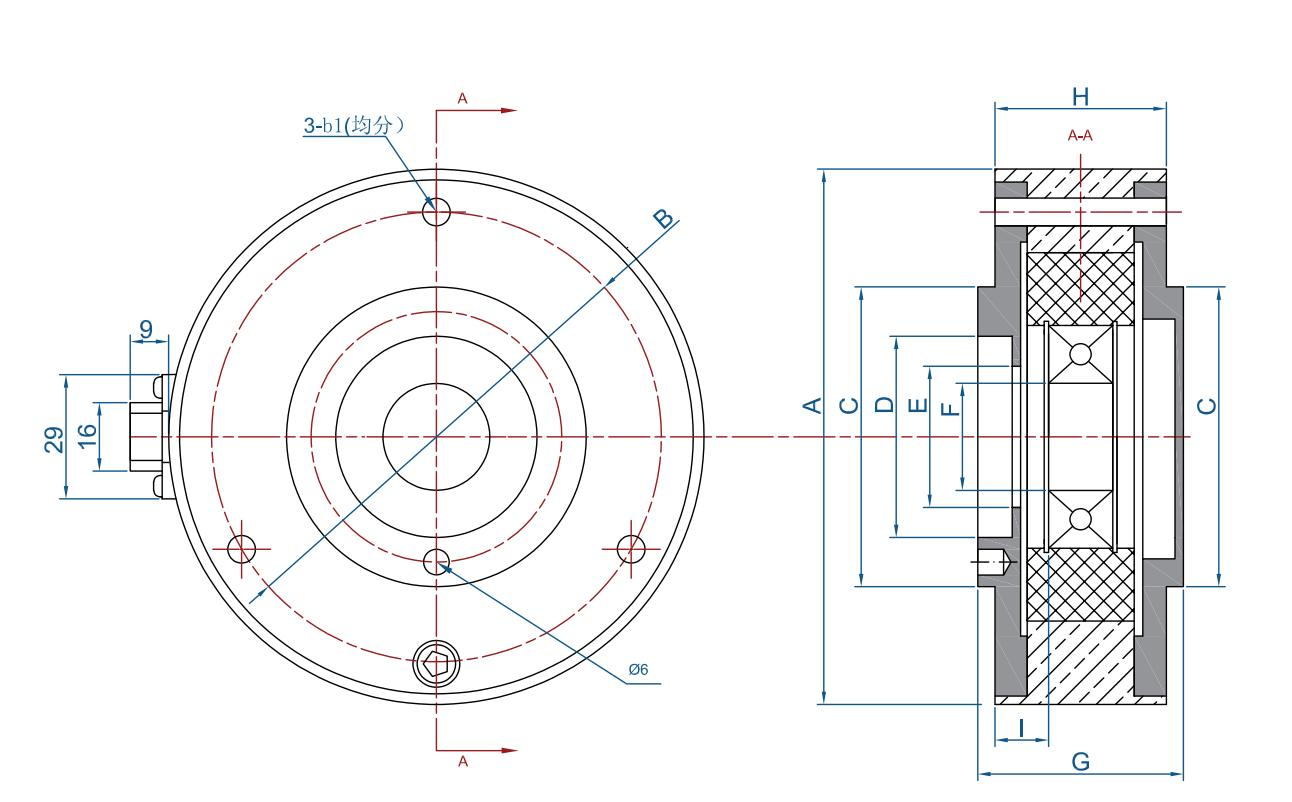

Dimensions（Unit：mm）

We provide 3D model files of our products.

Support to facilitate your design of workpiece.

Load Direction

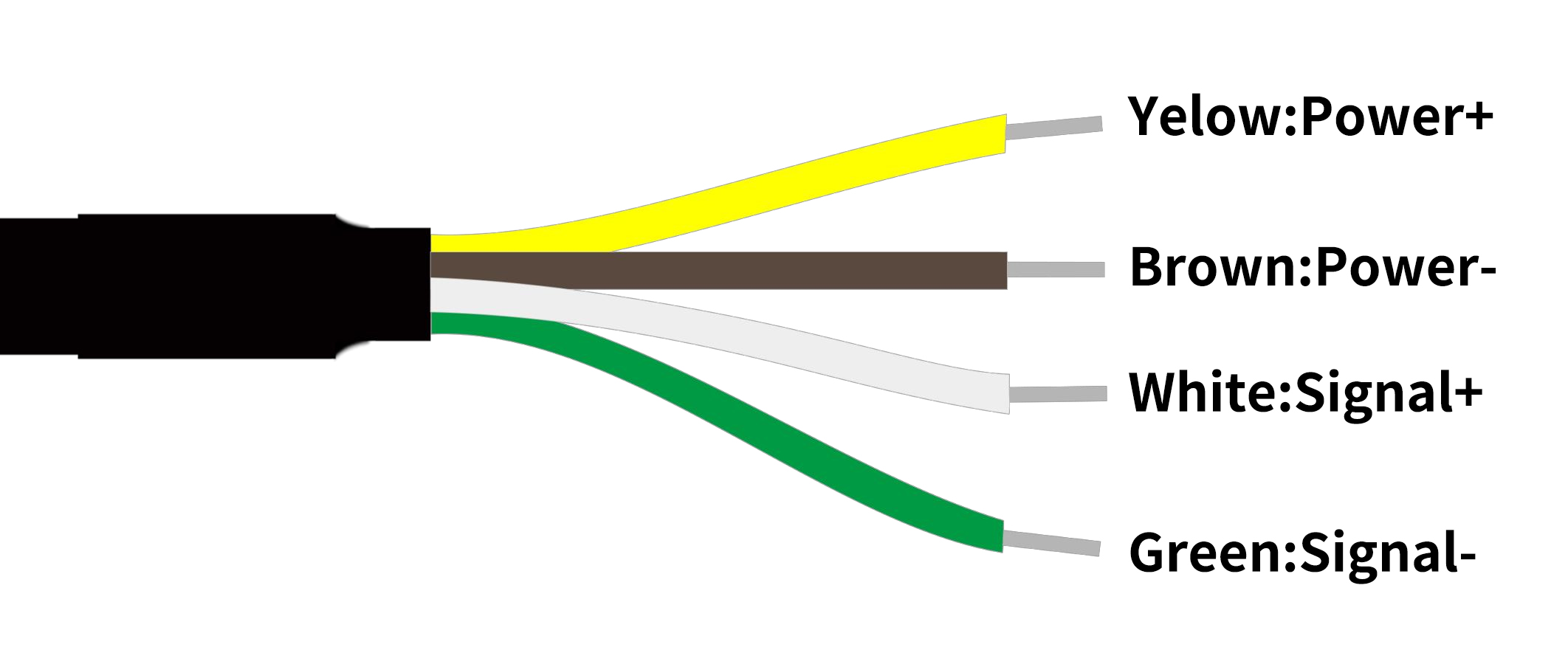

Wiring

Specifications

Qualification	Parameter	Qualification	Parameter
Range	50-2000N	Driving voltage	5-10VDC
Signal sensitivity	1mV/V	Output signal	0-10MV
Temperature coefficient	± 0.1 % / 10 K	Precision Level	± 0.2%
Temperature range	-20— 80℃	Repetitiveness	≤±0.1%F.S.
Compensation temperature rang	-10— 40℃	Zero-point output	±0.1%F.S.
Zero-point temperature drift	0.02%F.S./℃	Input impedence	350Ω / Full Bridge
Material quality	Alufer	Overload capacity	> 10-fold range of quantification
Cable Dimensions	Φ6mm×4M	Levels of protection	IP50 (waterproof, customizable)

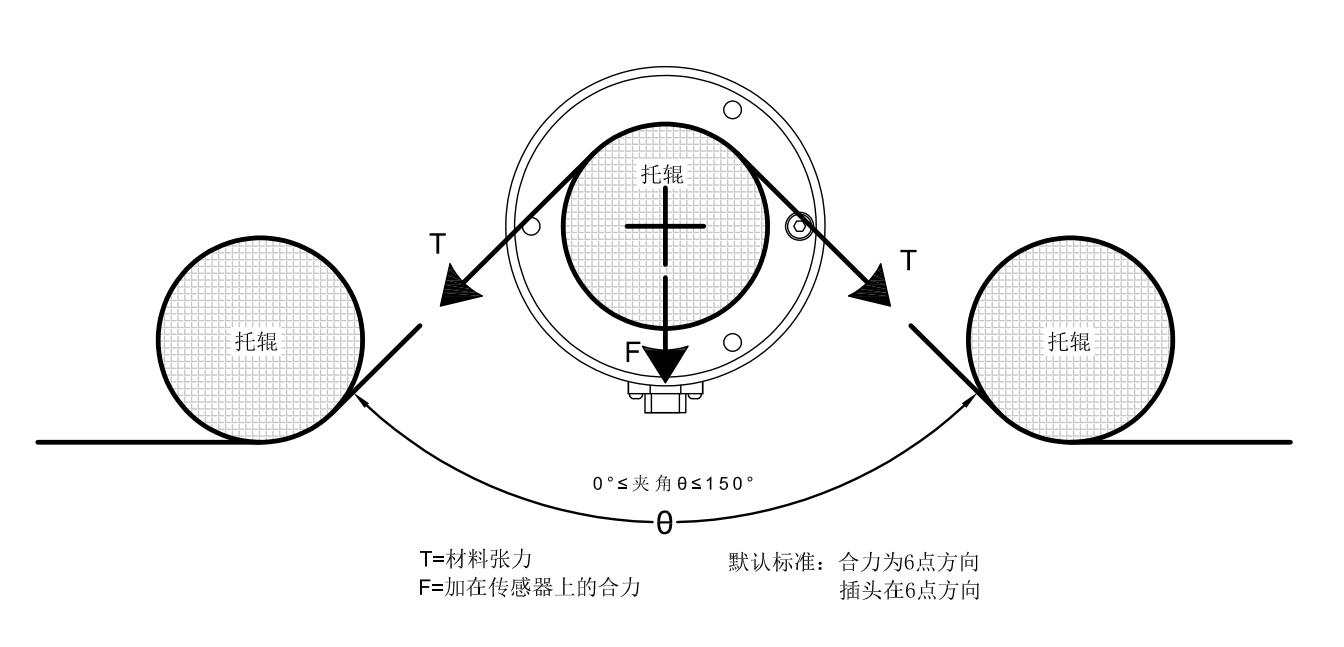

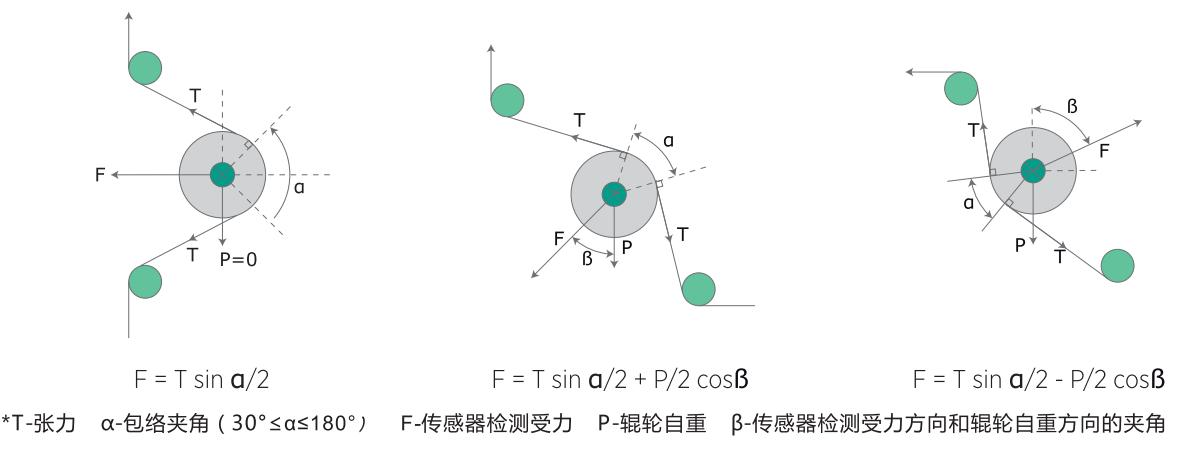

Force calculation

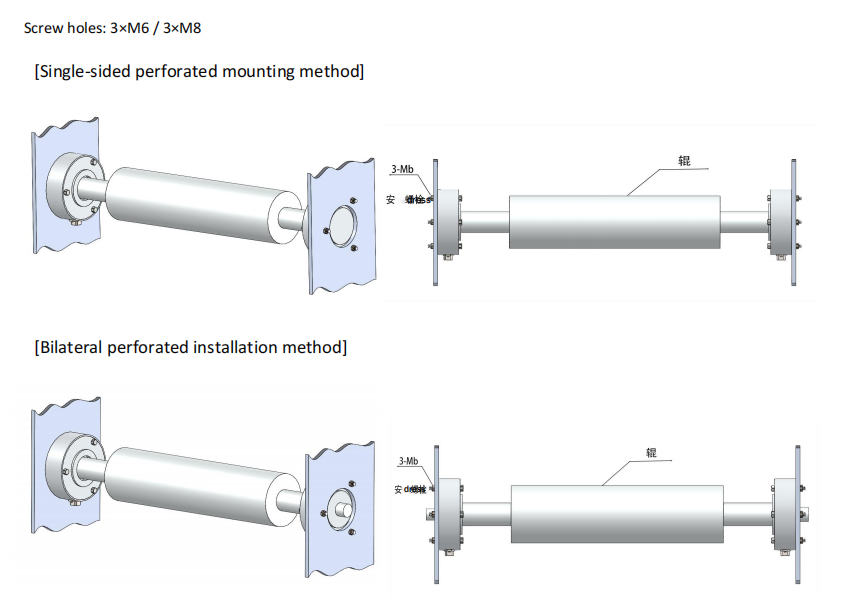

Installation Method

155115

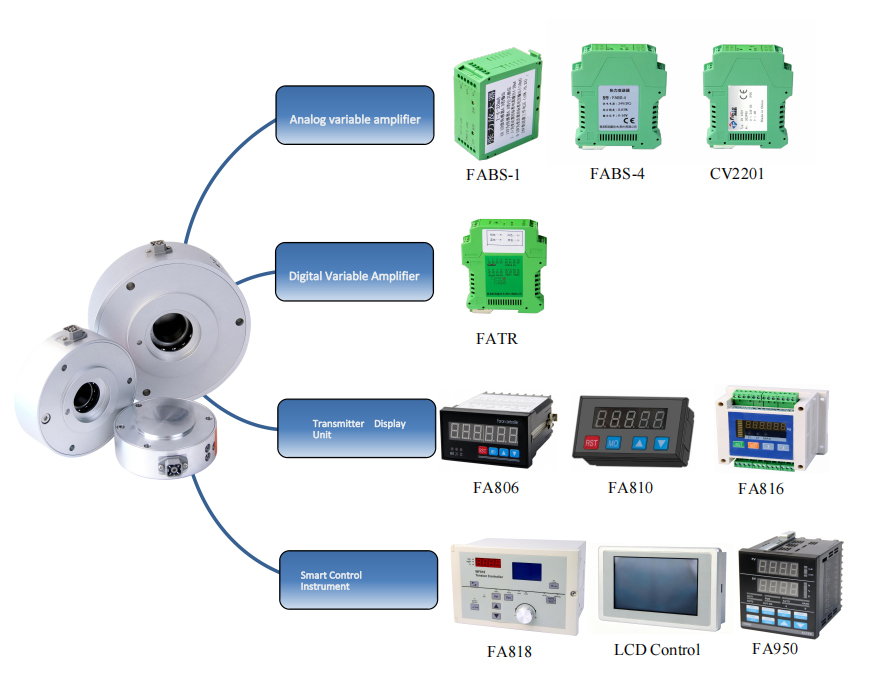

Optional combinations
