FA401
FIBOS
10,20,50,100，200N
≤0.1%F.S.
φ10mm；H22mm
＜0.11mm
＞1KHz
0.1kg
Stainless steel

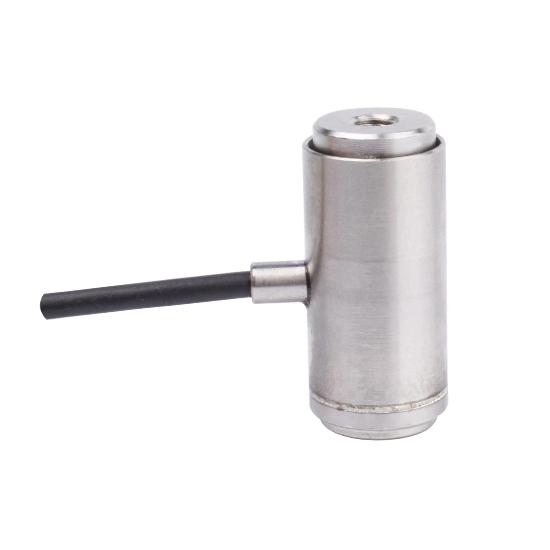

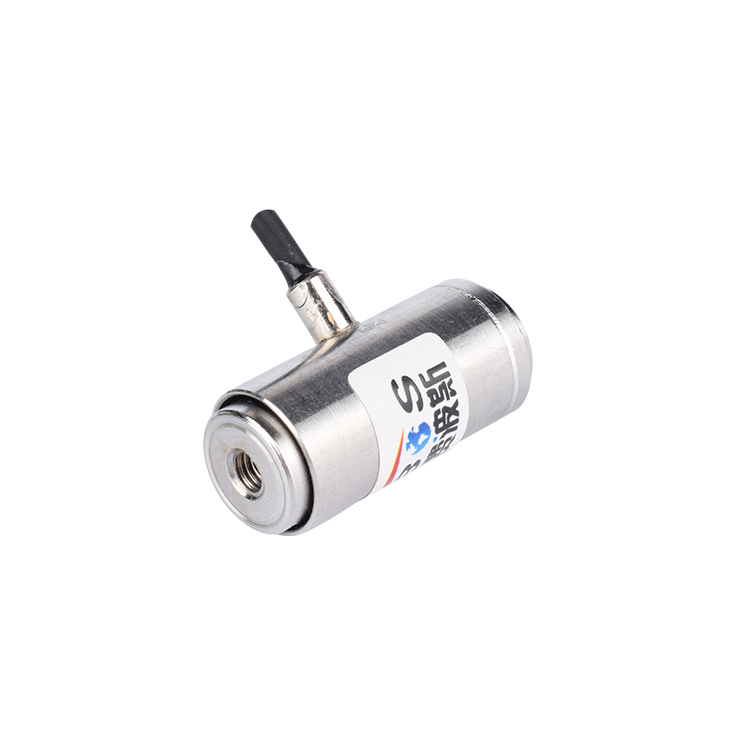

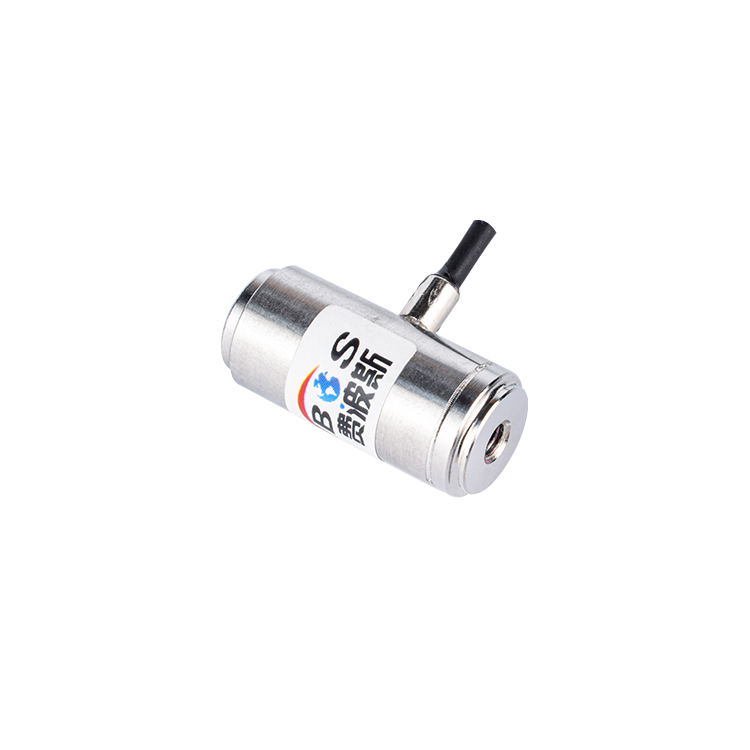

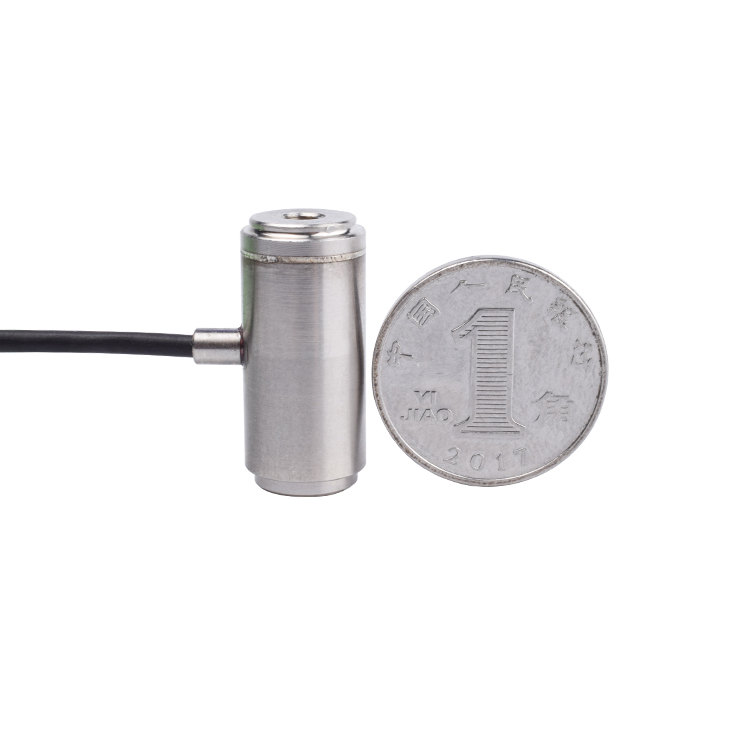

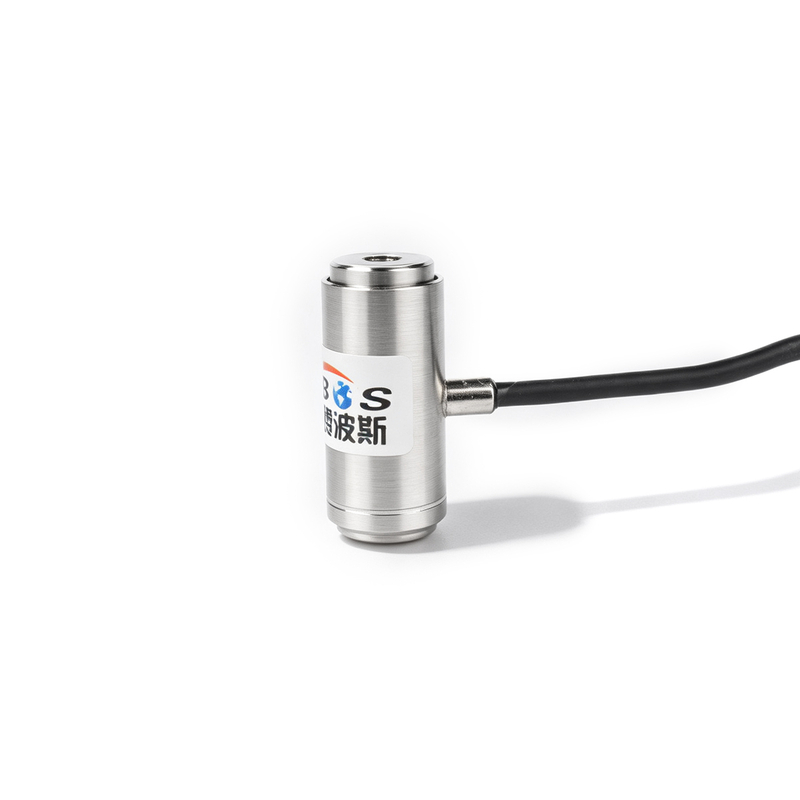

Mini Column Type Force Transducer Product Description |
The FIBOS FA401 is a compact and high-precision stainless steel load cell designed for low-capacity force measurement applications. With a capacity range of 1 kg to 20 kg, it provides accurate and stable performance with excellent linearity, repeatability, and low hysteresis. Its miniature cylindrical design allows easy integration into space-limited systems, while the optimized strain gauge ensures reliable performance under both static and dynamic conditions. Featuring high overload capacity and stable output sensitivity, it is ideal for electronic scales, testing equipment, and precision weighing applications

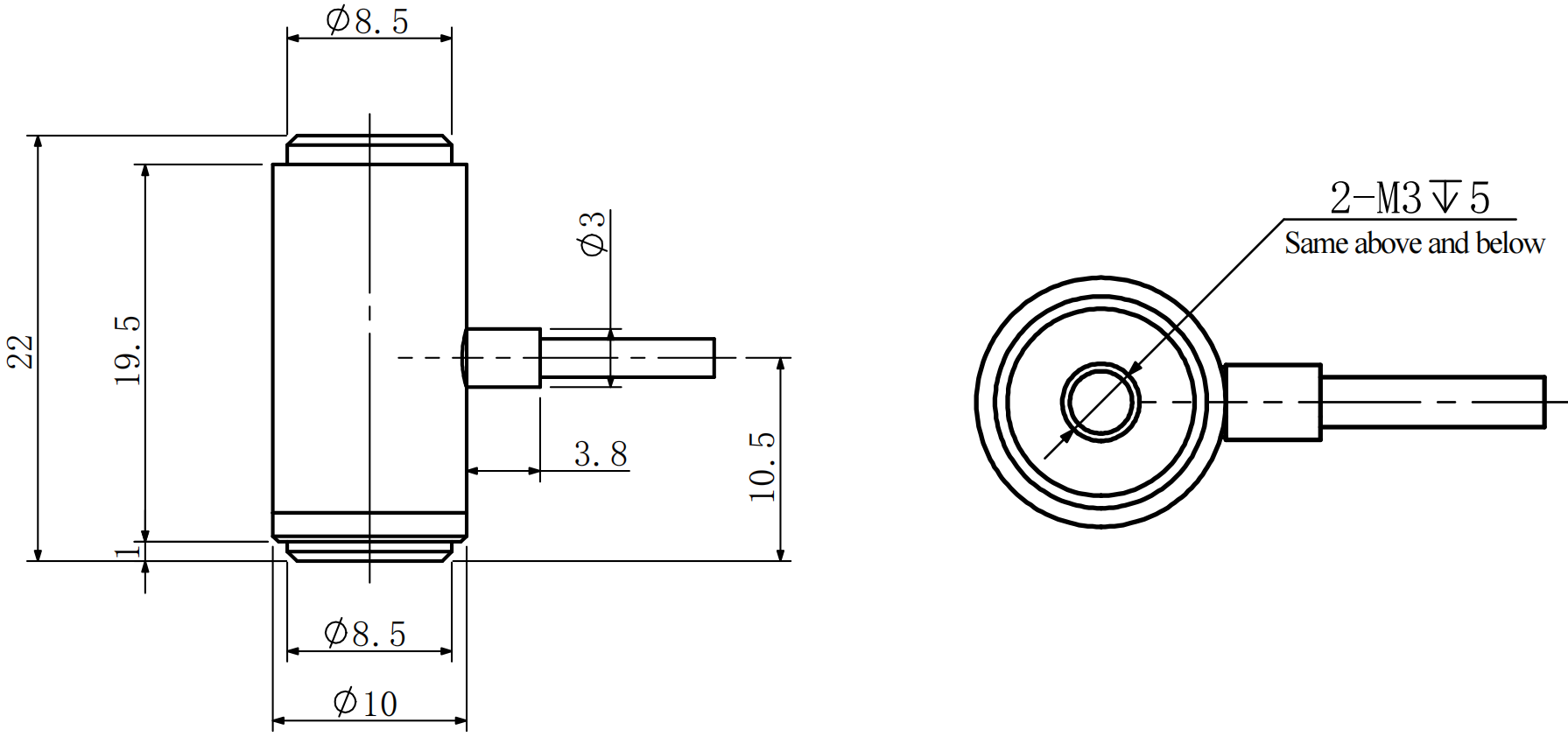

Mini Column Type Force Transducer Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

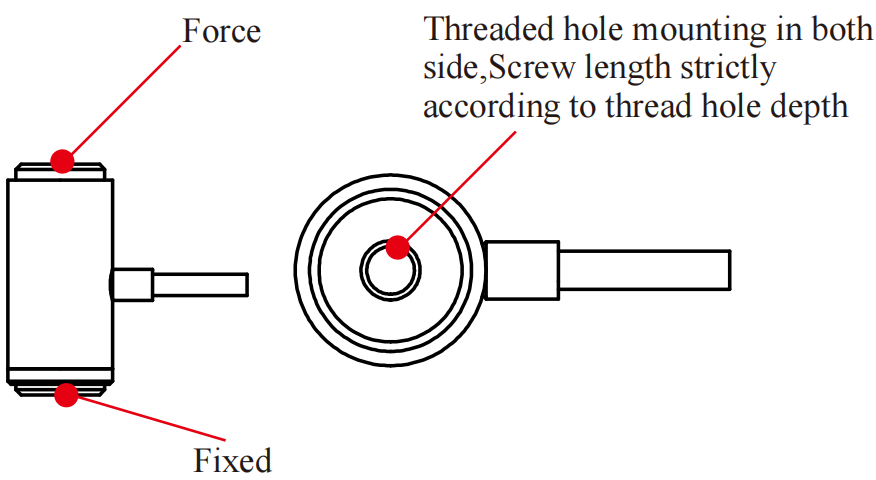

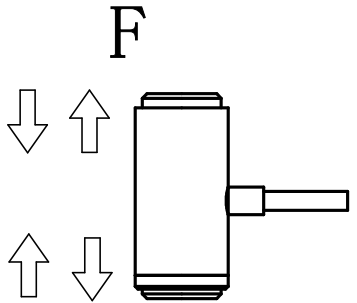

Mini Column Type Force Transducer Load Direction | Mini Column Type Force Transducer Wiring |
 |  |
Mini Column Type Force Transducer Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 10,20,50,100,200N |
Deflection at Full Scale | <0.11mm |
Fundamental resonance frequency (f_G) | >1KHz |
Safe Overload | 150%F.S. |
Operating Temperature | -20~70℃ |
Ingress Protection (IP) | IP65 |
Cable | φ2x3m |
Spring Element Material | 17-4PH |
weight | 0.02kg |
Loading Direction | Tension and Compression |
Sensor Accuracy Parameters | |
Combined Error | ≤0.1%F.S. |
Non-linearity | ≤0.1%F.S. |
Hysteresis | ≤0.1%F.S. |
Repeatability | ≤0.1%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 2.0±10%mV/V |
Excitation Voltage | 5~12V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Mini Column Type Force Transducer Installation |
 |
| Ensure that the force is applied evenly at the center of the load cell. Eccentric loading can cause measurement errors and poor repeatability. |
Recommended force sensor combinations |
 |
Force sensor manufacturing process |
Process for Customising Non-Standard Sensors |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A:When installing the FA401:
Ensure axial alignment of the force
Keep contact surfaces flat
Use spherical washers or self-aligning mounts if needed
Proper installation improves accuracy and durability.
A: Yes, the FA401 is specifically designed for heavy-duty applications with high capacity ranges, making it ideal for industries such as metallurgy, construction, and energy.
A: Yes, FIBOS offers customization options including capacity, dimensions, mounting methods, and output signals (mV/V, 4–20mA, 0–10V).
A: Column load cells feature high load capacity, strong rigidity, and excellent overload resistance. They are ideal for high-tonnage applications and offer stable performance in static or quasi-static measurements.
A: Yes, the FA401 supports both tension and compression measurement, making it suitable for applications requiring bidirectional force monitoring.
A: The FA401 is made of high-strength stainless steel, offering excellent compression resistance, corrosion resistance, and fatigue durability, making it suitable for harsh and continuous industrial use.
