FA410
FIBOS
50kN,100,200,500,1000,2000,3000,5000,10000,20000,50,000kN
â¤0.1%F.S.
Please refer to detail for specific models dimensions
0.43mm
5K Hz
17-4PH

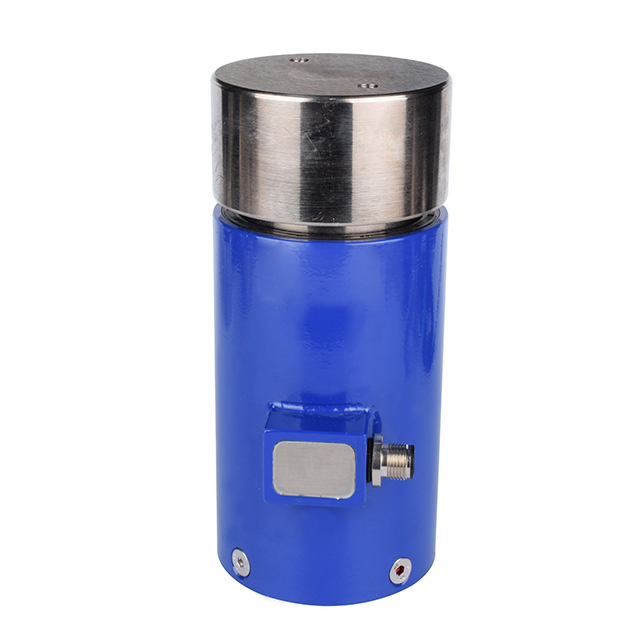

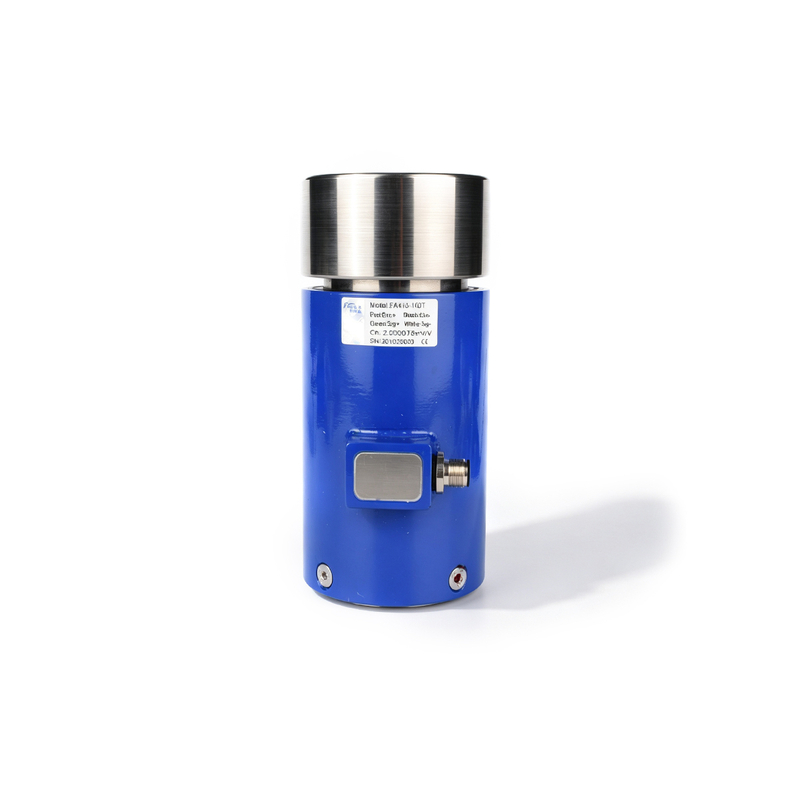

Column Compression Load Cell 50â50000kN FA410 Product Description |
The FIBOS FA410 is a high-capacity load cell designed for heavy-duty industrial force measurement across a wide range from 50 kN up to 50,000 kN. It delivers reliable and stable performance with excellent accuracy, strong repeatability, and low deviation under load. Its robust alloy steel/stainless steel construction ensures durability in demanding environments. Featuring IP67 protection and high overload capacity, it is suitable for extreme conditions. Ideal for applications such as structural testing, heavy machinery, and large-scale force monitoring systems.

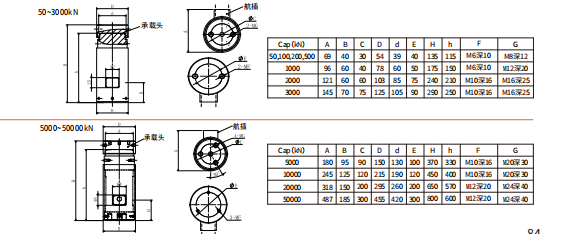

Column Compression Load Cell 50â50000kN FA410 DimensionsďźUnit:mmďź |
We provide 3D model files of our products.Support |
load cell Direction | load cell Wiring |
 |  |
Column Compression Load Cell 50â50000kN FA410 Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 50kN,100,200,500,1000,2000,3000,5000,10000,20000,50,000kN |
Fundamental resonance frequency (f_G) | 0.43 |
Safe Overload | 150%F.S. |
Operating Temperature | -20~80â |
Ingress Protection (IP) | IP65 |
Cable | 3m |
Spring Element Material | 17-4PH |
weight | - |
Loading Direction | Compression |
Sensor Accuracy Parameters | |
Combined Error | â¤0.1%F.S. |
Non-linearity | â¤0.1%F.S. |
Hysteresis | â¤0.1%F.S. |
Repeatability | â¤0.1%F.S. |
Creep(30min) | â¤0.1%F.S. |
Temperature Effect on Output | 0.1%F.S./10â |
Electrical Parameters | |
Rated Output | 2.0±10%mV/V |
Excitation Voltage | 5-10V DC |
| Insulation Resistance | âĽ5000MΊ/100V(DC) |

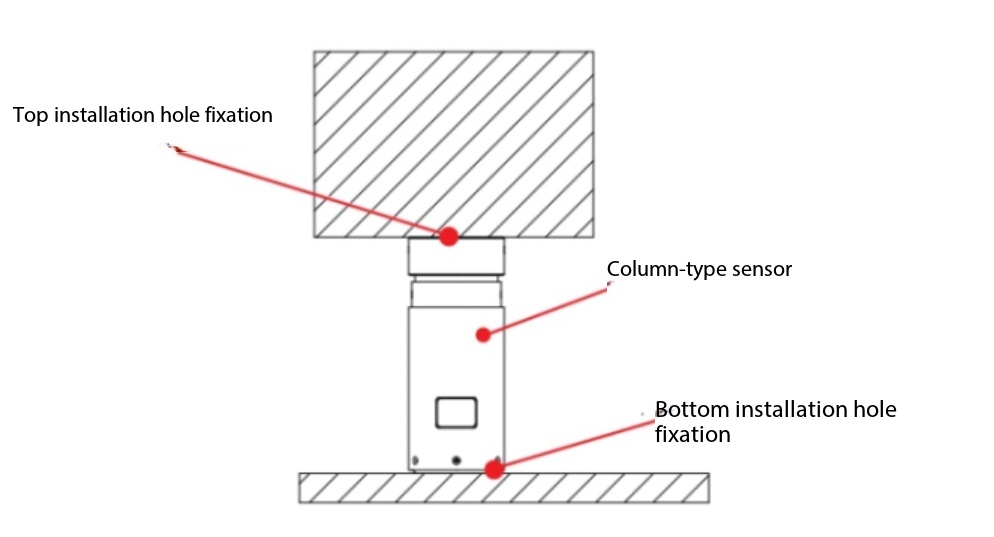

Column Compression Load Cell 50â50000kN FA410 Installation |
 |
Column Compression Load Cell 50â50000kN Styling Suggestions |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: TThe FA410 is designed for compression force measurement, ideal for industrial weighing, automation systems, and force monitoring application
A: This model supports a rated capacities up to 50000kN, suitable for heavy-duty industrial force measurement.
It provides a standard analog output (mV/V), which can be connected to controllers, amplifiers, or data acquisition systems.
A:Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments.Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments..
A:FIBOS provides customization options including:
Capacity range
Thread specifications
Output signals (mV/V, 4-20mA, 0-10V)
Dimensions and structure
Ideal for OEM and special applications.
