Tire pressure sensors are an essential component of modern vehicles, ensuring that drivers maintain optimal tire pressure for safety and efficiency. These sensors are part of the Tire Pressure Monitoring System (TPMS), which alerts drivers to underinflated tires, helping prevent accidents and improve fuel efficiency. But where exactly are these sensors located?

Introduction to Tire Pressure Monitoring Systems (TPMS)

TPMS systems have become a standard feature in vehicles manufactured after 2007 in the United States, following the TREAD Act of 2000. These systems are designed to monitor the air pressure in each tire and alert the driver if the pressure falls below a certain threshold. There are two main types of TPMS systems: direct and indirect.

- Direct TPMS: This system uses sensors inside each tire to directly measure the pressure. These sensors are typically located within the tire assembly, attached to the valve stem or banded to the wheel. Direct TPMS provides real-time pressure readings for each tire, offering precise monitoring and alerts.

- Indirect TPMS: This system uses the vehicle's anti-lock braking system (ABS) to estimate tire pressure by monitoring wheel speed. It does not provide real-time pressure readings for each tire but can detect significant changes in tire pressure by comparing the rotational speed of each wheel. Indirect systems are less common in modern vehicles due to their lower accuracy compared to direct systems.

Direct TPMS Sensors

Direct TPMS sensors are the most common type found in modern vehicles. They are usually located inside the tire, either attached to the valve stem or banded to the wheel. This positioning allows them to accurately measure the pressure and temperature of the air inside the tire.

Valve Stem-Mounted Sensors

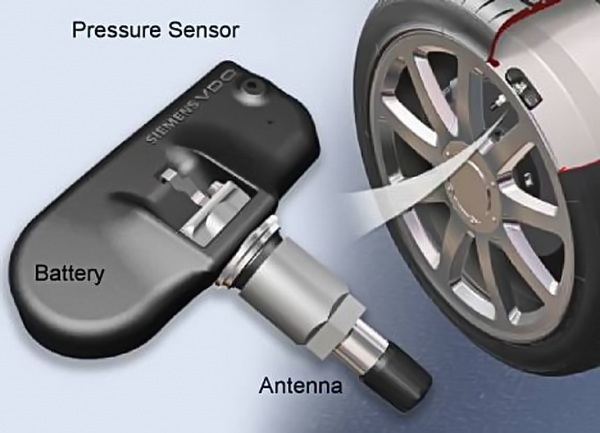

These sensors are integrated into a specialized tire valve, typically at the base of the valve stem. They are common in many modern vehicles and require the tire to be removed for access. Valve stem-mounted sensors are convenient for maintenance and replacement, as they are easily accessible once the tire is off the wheel.

Banded Sensors

Some vehicles use sensors that are banded to the wheel. These are less common but still provide accurate pressure readings. Banded sensors are typically more challenging to access than valve stem-mounted sensors, as they require specialized tools to remove and reinstall.

Indirect TPMS Sensors

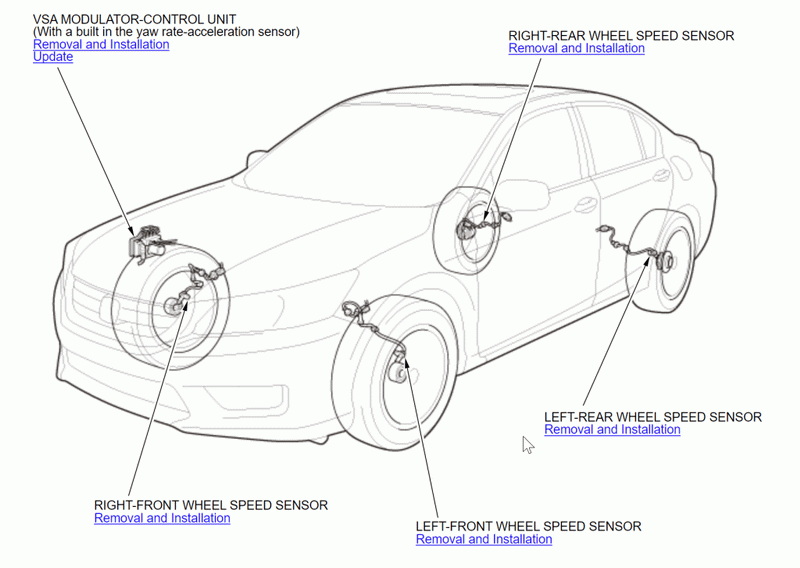

Indirect TPMS systems do not use sensors inside the tires. Instead, they rely on the vehicle's ABS system to monitor wheel speed and estimate tire pressure. This method is less accurate and does not provide real-time pressure readings for each tire. However, it can still detect significant underinflation by comparing the rotational speed of each wheel.

How TPMS Sensors Work

TPMS sensors work by continuously monitoring the air pressure inside each tire. They transmit this data wirelessly to a central control module in the vehicle, which analyzes the information and alerts the driver if the pressure is too low. The central module typically uses a dashboard display or warning light to notify the driver of underinflation.

Functionality and Benefits

- Real-Time Monitoring: Direct TPMS systems provide real-time pressure readings, allowing drivers to adjust tire pressure promptly.

- Safety Alerts: The system alerts drivers to underinflation, reducing the risk of tire failure and accidents.

- Efficiency: Proper tire pressure improves fuel economy and extends tire life by preventing uneven wear.

Accessing and Replacing TPMS Sensors

To access a TPMS sensor, you must remove the tire. This process requires care to avoid damaging the sensor or the valve stem.

Steps to Replace a TPMS Sensor

1. Remove the Tire: Use a lug wrench to remove the wheel and then the tire from the rim.

2. Locate the Sensor: The sensor will be attached to the valve stem or banded to the wheel.

3. Remove the Old Sensor: Use a T10 Torx driver to remove the screw holding the sensor in place.

4. Install the New Sensor: Mount the new sensor securely and ensure it is properly seated.

5. Reassemble: Put everything back together in reverse order, ensuring all parts are securely tightened.

Programming TPMS Sensors

After replacing a TPMS sensor, it may need to be programmed to communicate with the vehicle's central control module. This process typically involves using a TPMS tool to relearn the sensor's ID and synchronize it with the vehicle's system. Some vehicles may require a visit to a dealership or a professional mechanic for this step.

Importance of TPMS

TPMS systems are crucial for maintaining vehicle safety and efficiency. Proper tire pressure improves handling, reduces the risk of tire failure, and enhances fuel economy.

Benefits of TPMS

- Safety: Reduces the risk of accidents caused by underinflated tires.

- Efficiency: Improves fuel economy by ensuring optimal tire pressure.

- Longevity: Extends the life of tires by preventing uneven wear.

Impact on Vehicle Performance

Maintaining optimal tire pressure through TPMS can significantly impact vehicle performance. It improves traction and handling, making the vehicle more responsive and stable on the road. Additionally, proper tire pressure reduces the risk of hydroplaning on wet surfaces, further enhancing safety.

Troubleshooting Common Issues

Common issues with TPMS systems include sensor malfunctions, incorrect readings, and failure to communicate with the vehicle's central module. Troubleshooting these issues often involves checking sensor batteries, ensuring proper installation, and using a TPMS tool to diagnose problems.

Conclusion

Tire pressure sensors are a vital component of modern vehicles, providing real-time monitoring of tire pressure to enhance safety and efficiency. Understanding their location and function is essential for vehicle maintenance and troubleshooting. Whether attached to the valve stem or banded to the wheel, these sensors play a critical role in ensuring that drivers maintain optimal tire pressure.

FAQ

1. Where are tire pressure sensors typically located?

Tire pressure sensors are typically located inside the tire, attached to the valve stem or banded to the wheel.

2. What types of TPMS systems are there?

There are two main types of TPMS systems: direct and indirect. Direct systems use sensors inside each tire, while indirect systems use the vehicle's ABS to estimate pressure.

3. How do TPMS sensors work?

TPMS sensors continuously monitor the air pressure inside each tire and transmit this data wirelessly to a central control module, which alerts the driver if the pressure is too low.

4. Can I replace a TPMS sensor myself?

Yes, you can replace a TPMS sensor yourself if you have the necessary tools and knowledge. However, proper installation and programming may require professional assistance.

5. Why is TPMS important?

TPMS is important for maintaining vehicle safety by reducing the risk of accidents caused by underinflated tires, improving fuel efficiency, and extending tire life.
