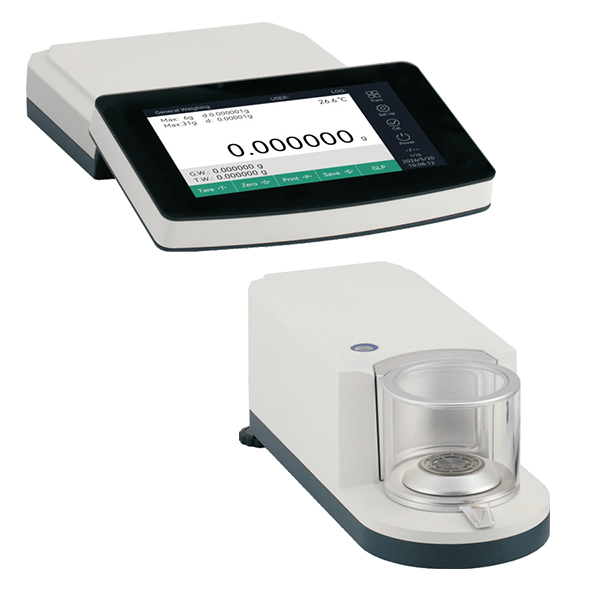

FEB-C Micro Balance Product Overview |
The FEB-C Micro Balance is a high-performance laboratory weighing instrument specifically designed for ultra-precise micro weighing applications. Utilizing advanced electromagnetic force restoration technology and a self-developed high-precision micro sensor, it delivers exceptional accuracy, repeatability, and stability for measuring extremely small sample quantities.
Featuring a 7-inch high-resolution full-touch graphic display, intelligent operating software, and a compact weighing chamber, the CEB-C Micro Balance provides a user-friendly operating experience while ensuring reliable weighing performance in demanding laboratory environments.
With readability down to 0.001 mg (1 μg) and capacity options ranging from 2.1 g to 10 g, the CEB-C series is ideal for pharmaceutical research, analytical chemistry, material science, semiconductor manufacturing, environmental testing, and other applications requiring microgram-level precision.
Built with an all-aluminum alloy housing, tempered glass touchscreen, and precision-engineered weighing chamber, the balance offers outstanding durability, excellent environmental resistance, and long-term measurement stability.
FEB-C Micro Balance Technical Features |
Durable Construction
The whole machine adoptsan all-aluminum alloy shell,conductive coated glassand a tempered glass touchdisplay.
Full-range Multi-point Temperature Compensation
With multi-point temperature compensation covering 0 to full scale, it ensures long-termstable data output after a single calibration.
Compliant Settings
It is equipped with a three-level permission system, whichautomatically saves weighing and calibration data for easy datatraceability, and supports GLP/GMP-compliant data printing.
High-precision Sensor
Adopts self-developed micro-sensor technology, which owns invention patents.
）

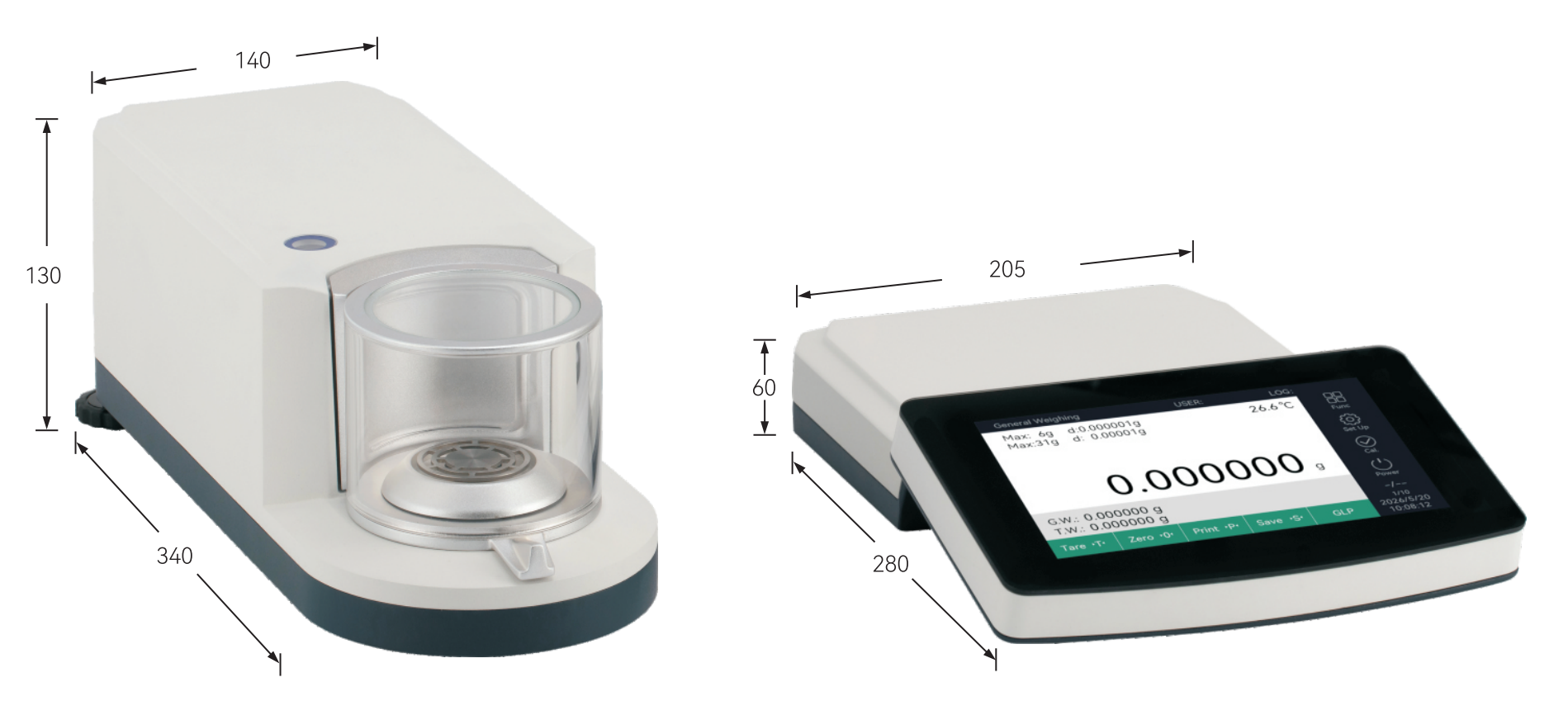

FEB-C Micro Balance Dimensions（Unit:mm） |
![FEB-C Micro Balance 尺寸]()
FEB-CMicro Balance Technical parameters |
Model | FEB2C | FEB3C | FEB6C | FEB10C |
| Capacity | 31g/2.1g | 31g/3.1g | 31g/6.1g | 31g/10g |
| Readability | 0.01mg/0.001mg |
| Repeatability | ±0.02mg/±0.005mg | ±0.02mg/±0.006mg |
| Linearity | ±0.02mg/±0.003mg | ±0.02mg/±0.005mg |
| Sensitivity drift | ±3ppm/°C |
| Stabilization Time | ≤4s/≤2s |
| Accuracy Class | I |
| Operating environment | 18-23℃ |
| Net Weight(Display unit+Weighing unit + breezebreak unit) | 4680g |
| Displayer | 7" high resolution full-touch graphic display |
| Unit | g，mg |
| PC/Printer Function | Yes
|
| Communication interface | RS232, USB-b |
| Pan size | φ40mm | φ40mm | φ40mm | φ40mm |
| Plate Material | 304SS |
| Volt | AC110-220V |
| Frequency | 50-60Hz |
| Power | 10W
|
Force sensor manufacturing process |
![Incoming Material Inspection]()
01 Incoming Material Inspection
![Laser Marking]()
02 Laser Marking
![Cleaning and Placement]()
03 Cleaning and Placement
![Pressure curing]()
04 Pressure curing
![Bridge Assembly Welding]()
05 Bridge Assembly Welding
![Test Compensation]()
06 Test Compensation
![Adhesive application and curing]()
07 Adhesive application and curing
![Laser welding]()
08 Laser welding
![Finished Product Re-testing]()
09 Finished Product Re-testing
![Cleaning and packaging]()
10 Cleaning and packaging
Non-standard customisation process |
![Non-Standard Customization Process]()
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
FEB-CMicro Balance Applications |
![Pharmaceutical Laboratories]()
Pharmaceutical Laboratories
![Chemical Analysis]()
Chemical Analysis
![Jewelry Industry]()
Jewelry Industry
![Food Laboratories]()
Food Laboratories
![Industrial Quality Control]()
Industrial Quality Control
![Environmental Laboratories]()
Environmental Laboratories
Frequently Asked Questions about FEB-CMicro Balance |
Q1：What is the minimum readability?
A: The FEB-C Micro Balance offers readability as low as 0.001 mg (1 μg), depending on the selected model.
Q2：What communication interfaces are available?
A:Standard models include RS232 and USB-B interfaces for data transmission and printer connection.
Q3：Does it support GLP/GMP requirements?
A: Yes. The balance supports user permission management, calibration records, weighing logs, and GLP/GMP-compliant data output.
Q4：Can the balance be customized?
A: Yes. FIBOS provides OEM and ODM services, including customized communication protocols, software functions, calibration options, and project-specific configurations.
Q5：Which industries commonly use this micro balance?
A:IIt is widely used in pharmaceutical laboratories, chemical analysis, research institutes, universities, semiconductor manufacturing, environmental testing, biotechnology, and precision material research.
