S beam tension load cells, also known as S-type or Z-beam load cells, are widely recognized for their versatility and accuracy in measuring both tension and compression forces. Their unique design allows them to be used in a variety of applications, ranging from industrial weighing to material testing. This article explores the suitability of S beam tension load cells for heavy-duty applications, highlighting their features, benefits, limitations, and specific use cases.

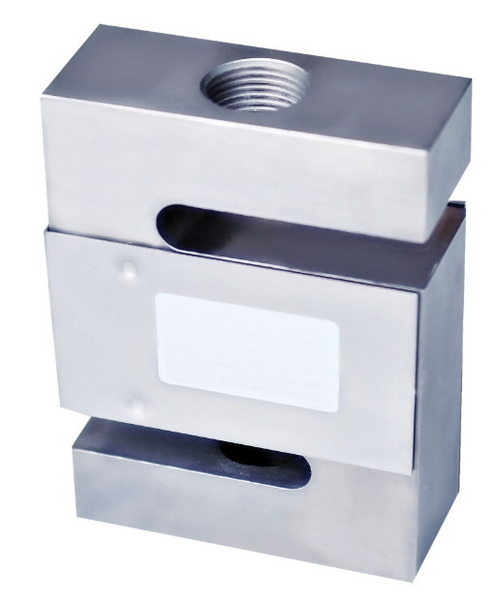

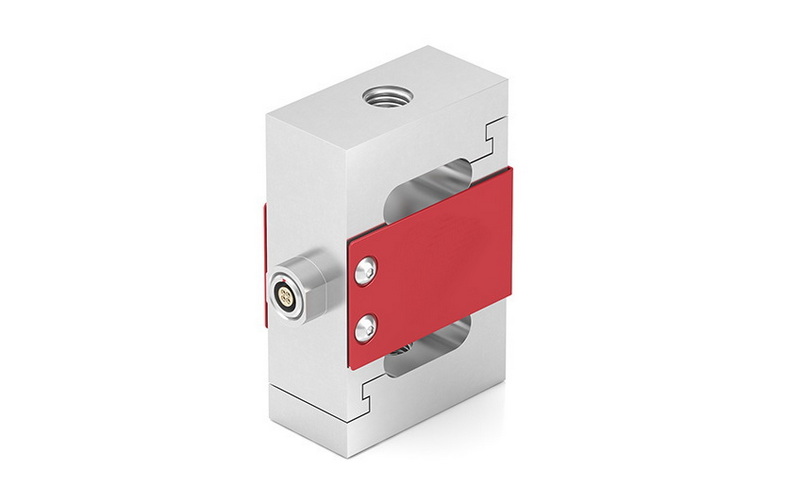

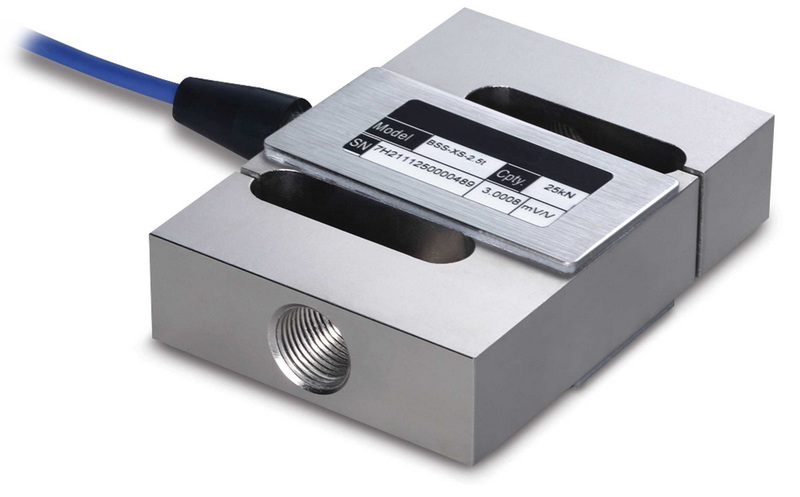

S beam load cells are named for their distinctive "S" shape, which facilitates the measurement of forces applied in both tension and compression. They typically consist of a metal beam with strain gauges attached, which convert mechanical stress into an electrical signal. This signal can then be processed to determine the amount of force being applied.
- Dual Functionality: Capable of measuring both tension and compression forces.
- High Accuracy: Offers precision measurements essential for critical applications.
- Wide Capacity Range: Available in various capacities from a few grams up to several tons.
- Durability: Many models are hermetically sealed, making them resistant to environmental factors.
- Compact Design: Their small footprint allows for easy integration into existing systems.
S beam tension load cells find applications across various industries due to their adaptability. Some common uses include:
- Industrial Weighing: Used in scales for weighing goods and materials.
- Material Testing: Employed in laboratories to test the strength and durability of materials under load.
- Medical Devices: Integrated into patient lifting systems and dialysis machines to ensure safe weight measurements.
- Automation Systems: Used in robotic applications for precise force measurement during operations.
- Construction Industry: Utilized in monitoring the weight of construction materials during transport and placement.
- Food Industry: Implemented in packaging lines to ensure accurate portion control and compliance with regulations.
The adoption of S beam load cells offers several compelling advantages:
- Exceptional Accuracy: Making them ideal for applications where precise measurement is critical. This is particularly important in industries such as pharmaceuticals and aerospace, where even minor measurement errors can lead to significant issues. Their ability to measure small changes in force allows for detailed analysis and quality control processes.
- Versatility: The S-shaped design enables these load cells to measure both tension and compression forces, allowing them to serve multiple purposes within a single system. This flexibility simplifies inventory management and reduces maintenance costs. For example, a single S beam load cell can be used in both weighing applications and tensile testing equipment.
- Ease of Installation: Thanks to their compact size and straightforward design, S beam load cells are easy to install in various setups. They come with top and bottom threaded through-holes that facilitate quick mounting in suspended tension weighing or compression applications. This ease of installation can significantly reduce downtime during setup or maintenance.
- Cost-Effectiveness: Compared to other types of load cells, S beam load cells are generally more affordable while still providing high accuracy and reliability. This cost-effectiveness makes them an attractive option for businesses looking to optimize their weighing systems without compromising on quality. The long lifespan of these devices further enhances their value proposition by reducing replacement costs over time.
S beam tension load cells can indeed be suitable for heavy-duty applications when selected and installed correctly. Here are some specific scenarios where they excel:
Crane scales often utilize S beam load cells due to their ability to measure large loads suspended from a hook or other lifting device. The robust design allows them to handle dynamic loads while maintaining accuracy.
In laboratories, S beam load cells are used in material testing machines that require precise measurements of tensile and compressive forces. Their high accuracy is crucial for ensuring compliance with industry standards.
In construction, S beam load cells can monitor the weight of materials being lifted or transported. They provide essential data that helps prevent overload situations, ensuring safety on job sites.
The automotive industry employs S beam load cells for component testing and crash testing. Their ability to accurately measure forces is vital for ensuring safety standards are met.
In agriculture, these load cells facilitate monitoring grain silos and weighing livestock, optimizing feeding processes based on accurate weight measurements.
The adoption of S beam load cells offers several compelling advantages:
- High Tenacity: These load cells exhibit high tenacity, allowing them to withstand significant stresses without deformation or failure.
- Wide Temperature Range: Many models operate effectively across a wide range of temperatures, making them suitable for various environments including extreme conditions found in industrial settings.
- Improved Sealing: Enhanced sealing options protect against dust and moisture ingress, increasing the lifespan and reliability of the device.
- Built-in Overload Protection: Many models feature built-in overload protection mechanisms that prevent damage during excessive loading conditions.
While S beam load cells have many benefits, there are also considerations to keep in mind:
- Load Capacity Limitations: While they are versatile, S beam load cells may not be suitable for extremely high-capacity applications compared to specialized load cells designed for heavy-duty use.
- Sensitivity to Bending Moments: Their geometry can make them susceptible to large bending moments, which can affect accuracy if not properly installed with rod-end bearings or clevises.
When selecting an S beam tension load cell for heavy-duty applications, consider the following factors:
- Capacity Requirements: Ensure the selected model can handle the maximum expected loads without exceeding its rated capacity.
- Environmental Conditions: Choose models with appropriate sealing (e.g., IP67) if they will be exposed to moisture or dust.
- Installation Needs: Evaluate if additional components like rod-end bearings are necessary to mitigate bending moments during operation.
Proper installation is crucial for achieving accurate measurements with S beam tension load cells:
1. Keep Forces Centrally Aligned: To reduce off-axis loading, forces must be centrally aligned through the center of the load cell.
2. Avoid Overtightening Components: When using rod ends or other attachments, avoid overtightening as this can damage the load cell.
3. Leave a Gap Between Components: Ensure that attachments do not touch the central beam; this allows it to move freely when force is applied.
4. Mount on a Flat Surface: The mounting surface should be clean and flat (better than 0.005mm flatness) to ensure accurate readings.
5. Apply Load Only at Active Areas: Make sure that the force is applied only at designated active areas on the load cell[5][13].
S beam tension load cells are indeed suitable for heavy-duty applications when chosen correctly. Their versatility, high accuracy, and robust design make them ideal for a wide range of industries including construction, automotive testing, material handling, and agriculture. However, it is essential to consider specific application requirements such as capacity limits and environmental conditions when selecting an appropriate model. With proper installation and usage, these load cells can provide reliable performance even under demanding conditions.
An S beam tension load cell is a type of sensor designed to measure both tension and compression forces using a metal beam with integrated strain gauges that convert mechanical stress into an electrical signal.
Typical applications include industrial weighing systems, material testing machines, medical devices, construction monitoring, automotive testing among others.
Installation typically involves securing the load cell using threaded holes at both ends while ensuring it is aligned correctly to avoid bending moments that could affect accuracy.
Yes, many models are designed with weather-resistant features that allow them to be used outdoors; however, it is essential to check specific product specifications for environmental suitability.
Consider factors such as capacity requirements, environmental conditions (e.g., moisture exposure), installation needs (e.g., additional components like rod-end bearings), accuracy specifications, and output type compatibility with existing systems.
