High-precision force sensors are the backbone of modern measurement technology, enabling accurate quantification of forces in fields as diverse as robotics, aerospace, automotive, medical devices, and industrial automation. Among these, tension and compression force sensors are particularly vital, as they measure both pulling (tension) and pushing (compression) forces with exceptional accuracy. But what makes these sensors so precise? The answer lies in their construction, especially the choice of materials and the underlying sensing technologies.
High-precision force sensors are devices engineered to detect and quantify the magnitude of force applied to them, often with extremely low error margins. In tension and compression force sensors, the goal is to measure both the stretching and compressing forces acting along a single axis.
These sensors are essential in applications where even minor inaccuracies can lead to significant issues, such as in robotic surgery, aerospace testing, or industrial quality control. The performance of these sensors depends on several factors:
- Accuracy: The closeness of the measured value to the true value.
- Resolution: The smallest change in force the sensor can detect.
- Repeatability: The sensor's ability to provide consistent readings under identical conditions.
- Durability: The ability to withstand repeated loading and harsh environments.
At the heart of these characteristics is material choice—both for the sensor's body and its sensing elements.
Before examining materials, it's crucial to understand the main sensing technologies used in high-precision force sensors:
- Strain Gauge Sensors: Use thin metal foils or wires that change resistance when stretched or compressed. Most common for tension and compression force sensors.
- Piezoelectric Sensors: Employ crystals (like quartz) that generate an electric charge under mechanical stress.
- Capacitive Sensors: Detect force by measuring changes in capacitance between conductive plates as they move closer or farther apart under load.
- Piezoresistive Sensors: Use semiconductor materials whose resistance changes under mechanical deformation.
- Optical and Magnetic Sensors: Rely on changes in light or magnetic properties due to force, often for specialized or miniature applications.
Each technology leverages different material properties to maximize sensitivity, stability, and reliability.
Metals are the most common structural materials for high-precision force sensors, particularly for tension and compression force sensors. Their mechanical properties—strength, elasticity, and resistance to deformation—are critical for accurate and repeatable measurements.
- Stainless Steel: The gold standard for high-precision force sensors. It offers:
a. High strength and stiffness
b. Excellent corrosion resistance
c. Long-term stability, even in harsh industrial environments
d. Suitability for both static and dynamic force measurement
- Aluminum: Used in some sensors for its lightweight properties and ease of machining. However, it is less suitable for permanent or high-load applications due to higher creep and lower long-term stability compared to stainless steel.
- High-Strength Alloys: Custom alloys may be used for specialized applications requiring a balance of strength, weight, and corrosion resistance. Nickel-based alloys and titanium alloys, for example, are chosen for their exceptional mechanical properties and resistance to fatigue.
Table: Comparison of Common Metals in Force Sensors
| Material | Strength | Corrosion Resistance | Weight | Suitability for High Precision |
|---|---|---|---|---|
| Stainless Steel | High | Excellent | Medium | Excellent |
| Aluminum | Medium | Good | Low | Good (limited applications) |
| Alloys | Varies | Varies | Varies | Application-specific |
- Silicon: Widely used in piezoresistive force sensors, especially in miniature and MEMS devices. Silicon's electrical properties make it ideal for detecting minute changes in resistance due to force. Its crystalline structure ensures consistent performance at the micro and nano scale.
- Quartz: The primary material in piezoelectric force sensors. Quartz crystals generate a measurable voltage when mechanically deformed, enabling highly sensitive and dynamic force measurements. Quartz is prized for its stability and repeatability over a wide range of temperatures.
- Other Piezoelectric Ceramics: Materials like lead zirconate titanate (PZT) are also common in piezoelectric sensors for their strong piezoelectric response. These ceramics can be engineered for specific frequency responses and sensitivities, making them suitable for dynamic force measurement.
With advances in nanotechnology, novel materials are being integrated into high-sensitivity force sensors:
- 1D Materials: Carbon nanotubes (CNTs) and nanowires, which offer exceptional sensitivity due to their unique electrical and mechanical properties. CNTs, for example, can detect extremely small deformations, making them ideal for ultra-sensitive applications.
- 2D Materials: Graphene and transition metal dichalcogenides (like MoS₂), which are atomically thin and extremely sensitive to deformation. Graphene, in particular, has a high Young's modulus and superior electrical conductivity, making it a promising material for next-generation force sensors.
- 3D Materials: Engineered nanostructures and single-crystal diamonds, used in specialized sensors for ultra-high precision or extreme environments. Diamond, for instance, is valued for its extreme hardness and thermal conductivity, which can be beneficial in high-stress or high-temperature applications.
These cutting-edge materials are primarily found in research or niche applications where traditional metals cannot deliver the required performance.
Some high-precision force sensors use composite materials, combining metals with polymers, ceramics, or advanced fibers to achieve a balance of strength, flexibility, and sensitivity. These composites can be engineered for specific needs, such as minimizing thermal expansion or enhancing fatigue resistance.
For example, fiber-reinforced polymers may be used in aerospace applications where weight savings are critical, while ceramic-metal composites can provide enhanced durability and resistance to wear in industrial environments.

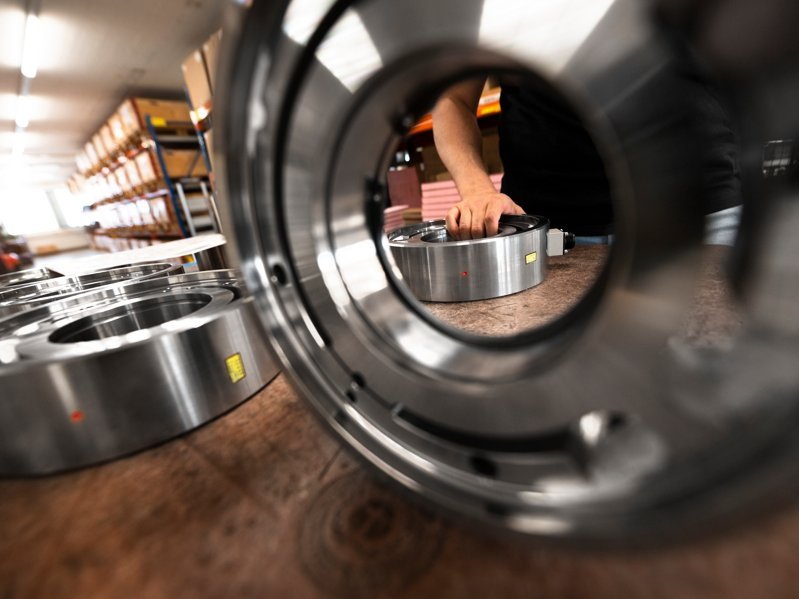

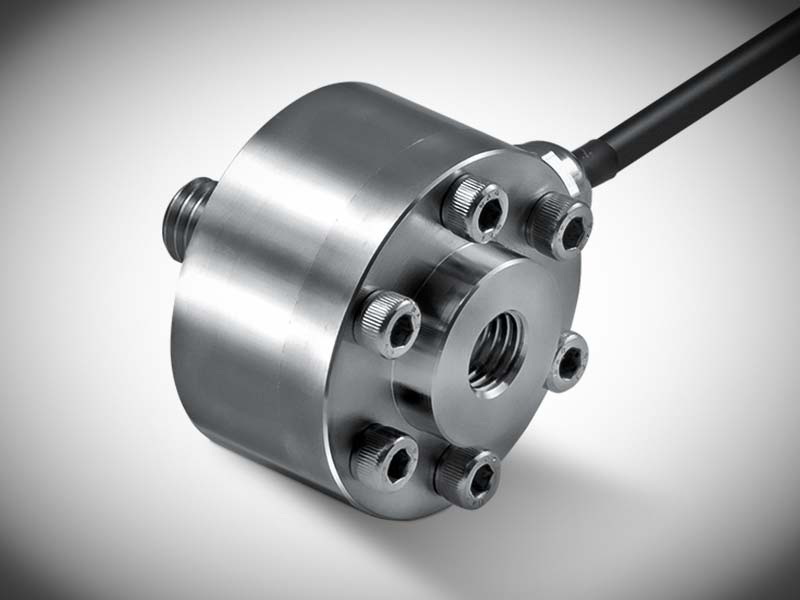

The mechanical design of a tension and compression force sensor is as crucial as its materials. Most commonly:
- Diaphragm or Spring Element: The core structure that deforms under load, typically made of stainless steel or high-strength alloy. The geometry is optimized to ensure predictable and linear deformation under both tension and compression.
- Strain Gauges: Thin metal foils or wires (often constantan or nickel-chromium alloys) bonded to the spring element. Their resistance changes with deformation, forming the heart of the strain gauge sensor. The bonding process and adhesive materials are also carefully chosen to ensure long-term stability and minimal creep.
- Wheatstone Bridge Circuit: Four strain gauges are arranged in a bridge configuration to maximize sensitivity and compensate for temperature effects. This configuration helps to cancel out the influence of temperature changes and provides a differential measurement for improved accuracy.
- Housing: Provides environmental protection, often made of stainless steel for durability and ingress protection (e.g., IP65 rating). In some cases, hermetic sealing is used to protect sensitive components from moisture, dust, and chemicals.
- Cable and Connector Materials: The choice of cable insulation and connector materials is also important, especially in harsh environments. Silicone, polyurethane, and Teflon are common choices for their flexibility and resistance to chemicals.
The operating environment often dictates material choice:
- Corrosive or Wet Environments: Stainless steel is preferred for its corrosion resistance. For even harsher environments, sensors may be coated with additional protective layers or constructed from specialty alloys.
- Clean Rooms or Vacuum: Sensors may use special alloys or coatings to prevent contamination and outgassing. Materials must be selected to minimize particle generation and chemical reactivity.
- High Temperatures: Materials must maintain stability and sensitivity without drifting. High-temperature alloys, ceramics, or even sapphire may be used in extreme cases.
- Miniaturized or Flexible Applications: Advanced materials like silicon, graphene, or composites are used for their small size and unique properties. Flexible force sensors, for example, may use polymer substrates embedded with conductive nanomaterials for wearable or biomedical applications.
Application Examples:
- Industrial Automation: Robust stainless steel tension and compression force sensors monitor pressing, joining, or robotic gripping forces.
- Medical Devices: Miniature silicon or composite sensors provide high sensitivity in compact spaces, such as in minimally invasive surgical instruments.
- Aerospace: Sensors with advanced alloys or composites withstand extreme temperatures and vibrations, ensuring reliability in critical flight systems.
The performance of high-precision force sensors depends not only on material selection but also on rigorous testing and calibration. Each sensor is typically subjected to:
- Static and Dynamic Load Testing: Ensures the sensor responds accurately to both constant and rapidly changing forces.
- Temperature Cycling: Verifies that the sensor maintains accuracy across its specified temperature range.
- Creep and Fatigue Testing: Assesses long-term stability and durability under repeated loading and unloading cycles.
Calibration is performed using traceable standards, and many high-end sensors include built-in calibration data or temperature compensation algorithms. The longevity of a tension and compression force sensor is directly related to the quality of its materials and the precision of its manufacturing processes.
One of the main challenges in force sensor design is material fatigue—the gradual weakening of a material due to repeated stress. Stainless steel and high-strength alloys are chosen for their excellent fatigue resistance, but even these materials can degrade over time if not properly engineered.
Creep—the slow, permanent deformation of a material under constant load—is another concern, especially in aluminum and polymer-based sensors. Advanced alloys and composites are engineered to minimize creep, ensuring long-term accuracy.
Hysteresis refers to the difference in sensor output when a force is applied and then removed. High-quality materials and precise manufacturing help minimize hysteresis, which is critical for applications requiring high repeatability.
Temperature changes can cause materials to expand or contract, affecting sensor readings. The use of materials with low coefficients of thermal expansion, as well as temperature compensation circuits, helps maintain accuracy in varying environments.
Recent years have seen significant advances in material science, leading to:
- Development of ultra-pure metals and alloys with enhanced mechanical properties.
- Introduction of nanostructured materials for improved sensitivity and miniaturization.
- Hybrid designs that combine metals, ceramics, and polymers for tailored performance.
The future of high-precision force sensors, especially tension and compression force sensors, will be shaped by ongoing research in materials science and engineering. Key trends include:
- Integration of Smart Materials: Materials that can self-heal, adapt to environmental changes, or provide real-time feedback are being explored for next-generation sensors.
- Increased Use of Nanomaterials: As manufacturing techniques improve, nanomaterials like graphene and carbon nanotubes will become more common in commercial sensors, enabling unprecedented sensitivity and flexibility.
- Sustainability and Environmental Impact: There is growing interest in developing sensors from recyclable or biodegradable materials, particularly for disposable medical devices and environmental monitoring.
- Wireless and Flexible Sensors: The demand for wearable technology and soft robotics is driving the development of flexible, stretchable force sensors using advanced polymers and conductive inks.
These trends will further expand the capabilities and applications of tension and compression force sensors across industries.
The precision and reliability of high-precision force sensors—especially tension and compression force sensors—are fundamentally determined by their material composition. Stainless steel remains the dominant choice for its strength, stability, and corrosion resistance, while aluminum and high-strength alloys serve specific needs. For cutting-edge applications, semiconductors, piezoelectric crystals, and advanced nanomaterials like graphene and carbon nanotubes are pushing the boundaries of sensitivity and miniaturization.
The careful selection and combination of materials, along with precise engineering and rigorous testing, ensure that these sensors deliver accurate and repeatable measurements in even the most demanding environments. As technology advances, the integration of novel materials and hybrid structures will continue to enhance the performance and versatility of force sensors across industries, supporting innovation in automation, healthcare, aerospace, and beyond.
Tension and compression force sensors are specifically designed to measure both pulling (tension) and pushing (compression) forces along a single axis. Unlike general force sensors, which may only measure force in one direction or use different sensing principles, these sensors are optimized for bidirectional force measurement, making them ideal for applications like material testing, robotics, and industrial automation.
Stainless steel offers a unique combination of high strength, excellent corrosion resistance, and long-term stability. These properties ensure that the sensor maintains its accuracy and durability even under repeated loading and in harsh environments, which is essential for reliable tension and compression force measurement.

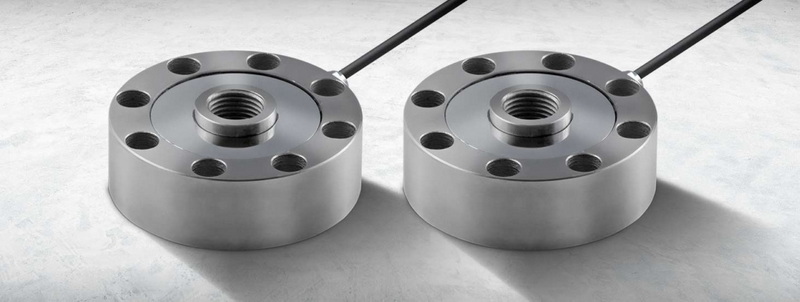

Strain gauge sensors use thin metal foils or wires bonded to a spring element. When a force is applied, the element deforms, causing the strain gauges to stretch or compress. This changes their electrical resistance, which is measured using a Wheatstone bridge circuit and converted into a precise force reading.
Graphene and carbon nanotubes offer extraordinary sensitivity due to their atomic-scale thickness and unique electrical properties. These materials enable the development of ultra-miniaturized, highly sensitive force sensors, which are especially valuable in scientific research, medical devices, and emerging technologies.
Yes, with the right material selection and protective housing, tension and compression force sensors can operate in extreme conditions, including high temperatures, corrosive atmospheres, vacuum, or high-vibration settings. Stainless steel and specialized alloys are commonly used for such applications, while advanced coatings or composite structures may be employed for added protection.
