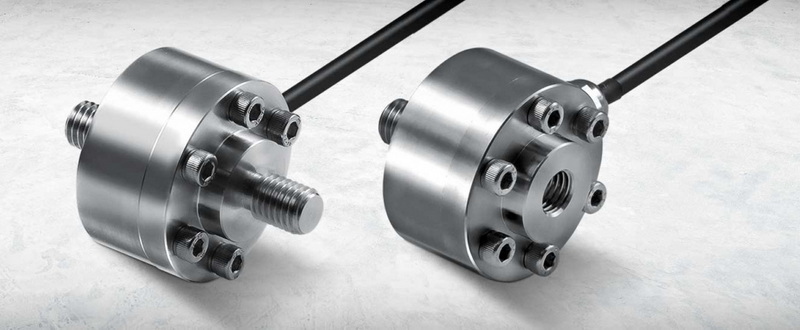

Accurate tension measurement at changing angles remains one of the most complex challenges in industrial instrumentation. This guide provides a technical deep dive into selecting, configuring, and maintaining angle-compensated tension sensors across manufacturing, robotics, and aerospace applications.
Vector resolution fundamentals dictate that tension force ( F ) applied at angle θ generates measurable components:
- Axial force: Fx=F⋅cos(θ)
- Shear force: Fy=F⋅sin(θ)

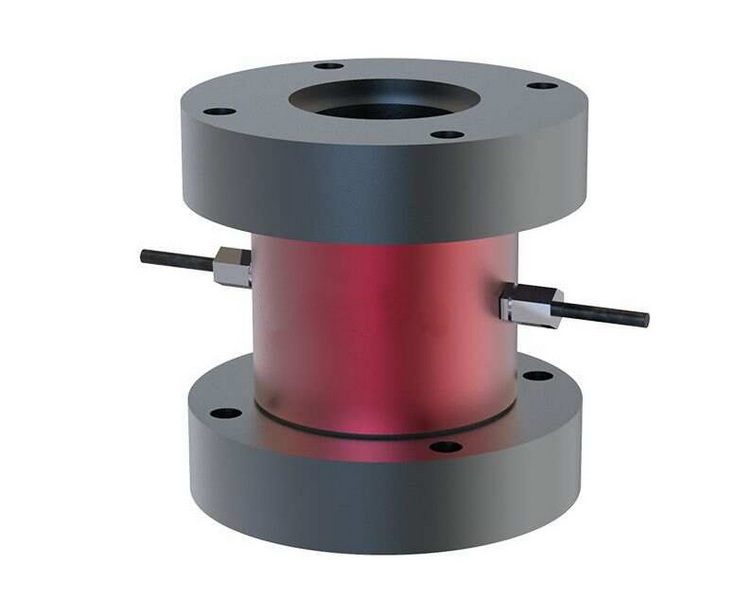

Traditional single-axis sensors only detect Fx, leading to systematic underreporting. Advanced systems combine triaxial load cells and inertial measurement units (IMUs) to reconstruct true tension through vector summation. Key error sources include:
- Cosine error: Up to 13.4% at 30° misalignment
- Bending moments: Induced by off-axis loading
- Temperature drift: 0.02%/°C typical in strain gauge systems
Advanced configurations now integrate rosette strain gauges in Wheatstone bridge arrangements:
- 3-gauge systems: Detect axial and bending loads
- 6-gauge systems: Full temperature compensation
- Limitations:
a. 50Hz maximum sampling rate
b. 0.1-0.5% nonlinearity
Installation criticalities:
- Mounting surface flatness 3µm RA)
- Torque uniformity during fastening (±5% tolerance)
Roller-based designs dominate web handling applications with:
- Tension range: 0.1N to 200kN
- Speed capacity: 0-50m/s linear motion
- Wrap angle optimization:
- Ideal: 150-170° (avoids slip/stick transitions)
- Minimum: 30° (requires surface roughness >3µm RA)
Fourth-generation MEMS devices now feature:
- Integrated signal conditioning: 24-bit ADCs
- Wireless protocols: Bluetooth 5.2, LoRaWAN
- Environmental hardening:
a. IP69K ingress protection
b. 50g shock resistance
| Parameter | Entry-Level | Industrial-Grade |
|---|---|---|
| Angular resolution | 0.5° | 0.01° |
| Dynamic range | ±90° | ±180° |
| Temperature drift | 0.05%/°C | 0.002%/°C |
3.1 Accuracy Requirements
- Static systems: ±1% FS sufficient
- Dynamic systems: ±0.25% FS minimum
- Critical applications (e.g., aircraft control cables): ±0.1% FS with NIST-traceable calibration
3.2 Environmental Factors
- Temperature:
a. Standard: -20°C to +85°C
b. Extended: -55°C to +150°C (requires silicon-on-insulator MEMS)
- Vibration: MIL-STD-810H compliance for >15g RMS environments

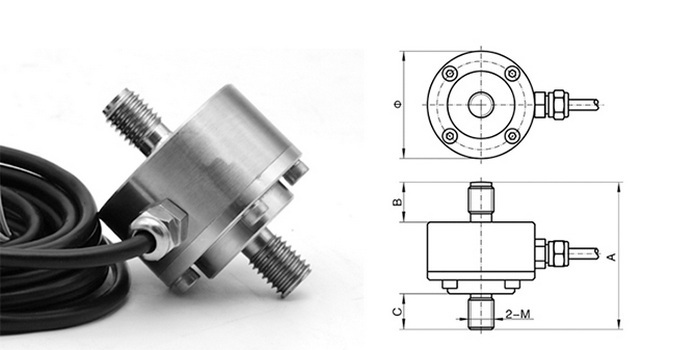

3.3 Mechanical Integration
- Mounting configurations:
a. Double shear: For pure tension/compression
b. Bending beam: Allows ±5° misalignment
c. S-type: Compact multi-axis installations
4.1 Alignment Procedures
1. Laser-align sensor axis with force vector (±0.1° tolerance)
2. Use precision levels with 0.01° resolution
3. Perform static calibration at 0°, 45°, and 90° orientations
4.2 Signal Conditioning
- Analog front-end requirements:
a. CMRR >100dB at 60Hz
b. 1kSPS minimum sampling rate
- Digital filtering:
a. 50Hz notch filters for AC interference
b. Kalman filtering for dynamic angle compensation
4.3 Maintenance Protocols
- Quarterly:
a. Re-torque mounting hardware
b. Clean optical encoder surfaces (if equipped)
- Annual:
a. Full metrological calibration
b. Bearing replacement in roller systems
5.1 Composite Material Manufacturing
- Challenge: Measure 0-500N tension on carbon fiber tow at 70° feed angle
- Solution: Water-cooled radial sensor with:
a. 1000Hz sampling rate
b. AlSiC ceramic roller
- Result: 0.2% CV across 8-hour production runs
5.2 Automotive Seatbelt Pretensioners
- Requirements:
a. 0-6000N dynamic range
b. 180° direction changes in <50ms
- Implementation: Piezoelectric sensor array with:
a. 10kHz response rate
b. CAN FD output
5.3 Deep-Sea ROV Tether Management
- Conditions:
a. 6000m depth rating
b. 360° continuous rotation
- Technology: Optical torque sensors with:
a. Laser-based angle encoding
b. Pressure-balanced oil filling
Selecting tension-at-angle force sensors demands rigorous analysis of vector mechanics, environmental extremes, and dynamic response requirements. Modern solutions combining MEMS angular sensors, advanced signal processing, and IoT connectivity enable unprecedented measurement accuracy in rotating and articulated systems. As smart manufacturing accelerates, expect increased adoption of self-calibrating sensors with edge AI capabilities for real-time vector resolution.
Strain gauge sensors experience 0.02-0.05%/°C sensitivity drift. MEMS devices with integrated temperature compensation maintain ±0.005%/°C stability from -40°C to 125°C.
Conventional sensors lose reliability beyond 75° off-axis. Specialized 6-axis load cells maintain ±1% accuracy up to 85° through spherical joint mounting.
Use laser alignment tools with <0.1° resolution or perform live calibration using known weights at 0°, 45°, and 90° orientations.
Yes, but requires bidirectional calibration. Radial force transducers typically handle ±10% FS compression without damage.
Implement TLS 1.3 encryption, MAC address filtering, and certificate-based authentication to prevent data tampering in industrial networks.
