If your Subaru is displaying a seat belt sensor warning light, you may be wondering what's causing it and how to address the issue. This warning is more than just an annoyance—it's a critical safety feature designed to protect you and your passengers. In this comprehensive guide, we'll explore the reasons behind the seat belt sensor warning light, how the Subaru seat belt tension sensor works, troubleshooting steps, and what you can do to resolve the warning. We'll also provide clear explanations and actionable advice to help you understand and fix the problem.

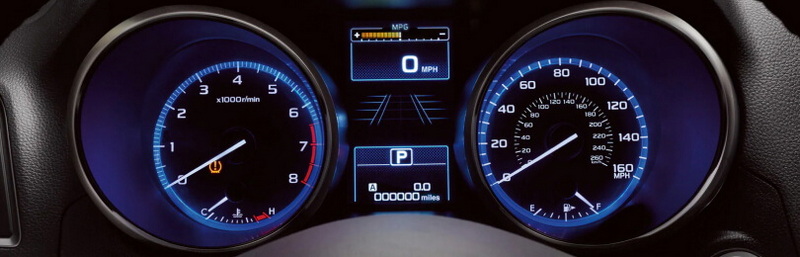

The seat belt sensor warning light on your Subaru's dashboard is designed to alert you when the system detects that a seat belt is not properly fastened or if there is a malfunction in the seat belt system. This warning can be accompanied by a chime, especially if the vehicle is in motion and a seat is occupied without the belt being buckled.
Key Functions:
- Reminds occupants to fasten their seat belts.
- Indicates system malfunctions, such as issues with the seat belt buckle, wiring, or sensors.
- Interacts with the airbag system to ensure proper deployment in a collision.
The warning light is a part of Subaru's comprehensive safety system, which works in tandem with other safety features such as airbags, the Occupant Detection System (ODS), and the seat belt pretensioners. When this light is on, it's a sign that the system has detected something out of the ordinary, and it's important not to ignore it.
The Subaru seat belt tension sensor is a crucial component of the vehicle's Supplemental Restraint System (SRS). Its primary function is to measure the tension in the seat belt and relay this information to the car's control modules, such as the Occupant Detection System (ODS) and the airbag controller.
- Tension Measurement: The sensor detects how tightly the seat belt is fastened. It uses a combination of mechanical and electronic components, such as a magnet, a spring, and a Hall effect device, to generate an electrical signal proportional to the belt's tension.
- Integration with Weight Sensors: The seat belt tension sensor works alongside seat weight sensors to accurately determine the occupant's size and position. This information is vital for deciding whether and how forcefully to deploy the airbags.
- Safety Logic: If a child seat is tightly secured or if the seat belt is overly tightened, the system uses tension data to avoid erroneous airbag deployment.
The Subaru seat belt tension sensor is not just about detecting whether the belt is latched; it's also about ensuring the correct amount of tension is present for optimal safety. This is especially important in modern vehicles, where the deployment of airbags and other safety features depends on accurate, real-time data from multiple sensors.
Several factors can trigger the Subaru seat belt sensor warning light. Understanding these causes can help you pinpoint and resolve the issue more efficiently.
The most straightforward reason is that a seat belt is not buckled, or the buckle is not fully engaged. Sometimes, the latch may seem secure, but if it isn't clicked in all the way, the sensor will still detect it as unfastened.
The buckle contains a switch that detects when the belt is latched. If this switch fails or becomes dirty (e.g., from spilled drinks or debris), it may send a false signal. Over time, wear and tear can also cause the switch to malfunction, leading to persistent warning lights.
If the tension sensor itself is defective, it may misreport the belt's status, triggering the warning light. This can happen due to internal electrical faults, sensor misalignment, or physical damage.
The weight sensor (or occupancy sensor) in the seat can fail or become misaligned, causing the system to think the seat is occupied when it's not, or vice versa. This can result in the seat belt warning light illuminating even when there's no one in the seat.
Damaged wires, loose connectors, or corrosion can disrupt communication between the seat belt tension sensor, the seat belt buckle, and the control modules. Electrical issues are common, especially in older vehicles or those exposed to moisture.
Placing heavy items, such as bags or laptops, on the passenger seat can trigger the sensor, making the system think the seat is occupied and the belt is unfastened. Even small objects can sometimes cause false positives, especially if the seat's sensitivity is high.
After seat or sensor replacement, the system may need recalibration using a Subaru Select Monitor. Failure to calibrate can cause persistent warning lights. Calibration ensures that all sensors are correctly zeroed and communicating with the vehicle's control modules.
Follow these steps to diagnose and possibly resolve the Subaru seat belt sensor warning light issue.
- Ensure all seat belts are properly fastened.
- Remove any objects from the passenger seat.
- Check that the seat belt latches click securely and do not feel loose.
- Look for debris or sticky residue inside the buckle.
- Clean the buckle carefully with compressed air or a small brush.
- Test the buckle by inserting and removing the seat belt several times to see if the warning light goes off.
- Buckle and unbuckle the seat belt several times to see if the warning light turns off.
- If the light persists, the switch inside the buckle may be faulty and require replacement.
- Inspect the wiring and connectors under the seat for signs of damage or disconnection.
- If you recently had seat work done, ensure all connectors are reattached.
- Gently move the seat forward and backward to see if the warning light flickers, which can indicate a loose connection.
- If the warning light is on with no one in the seat, the weight sensor may be malfunctioning.
- Avoid placing objects on the seat that could trigger the sensor.
- If the seat has been removed or replaced, ensure the sensor has been recalibrated.
- Many Subaru models require a Subaru Select Monitor to read error codes and recalibrate sensors after repairs or part replacements.
- Use an OBD-II scanner to check for stored trouble codes related to the seat belt system.
- Check for frayed wires, loose connectors, or corrosion under the seat and along the seat belt assembly.
- Repair or replace any damaged wiring as needed.
- If the above steps do not resolve the issue, visit a Subaru dealership or qualified mechanic. They can use advanced diagnostic equipment to pinpoint the problem.
When the seat belt sensor warning light remains on, your Subaru's onboard computer may store specific diagnostic trouble codes (DTCs) that can help identify the exact problem. These codes can be read using a Subaru Select Monitor or a compatible OBD-II scanner.
Common DTCs related to the seat belt system might include:
- Codes for seat belt buckle switch failure
- Codes for seat belt tension sensor circuit malfunction
- Codes for occupancy sensor errors
Understanding these codes can save time and prevent unnecessary part replacements.
If diagnostics indicate a faulty Subaru seat belt tension sensor, replacement is usually the best option. This process generally involves:
- Disconnecting the vehicle battery to prevent accidental airbag deployment
- Removing the seat or seat belt assembly to access the sensor
- Disconnecting the old sensor and installing the new one
- Reconnecting all wiring and calibrating the system using a Subaru Select Monitor
It is strongly recommended to have this work performed by a qualified technician, as improper installation or calibration can compromise your vehicle's safety systems.
To minimize the chances of future seat belt sensor warnings:
- Keep seat belt buckles clean and free of debris
- Avoid placing heavy items on the passenger seat
- Have your seat belt system inspected regularly, especially after any collision or seat repairs
- Address any warning lights promptly to avoid further complications
While some seat belt sensor issues can be resolved with basic troubleshooting, others require specialized tools and expertise.
- Persistent Warning Light: If the warning light remains on after checking the basics, there may be a deeper issue with the Subaru seat belt tension sensor, the airbag system, or the vehicle's wiring.

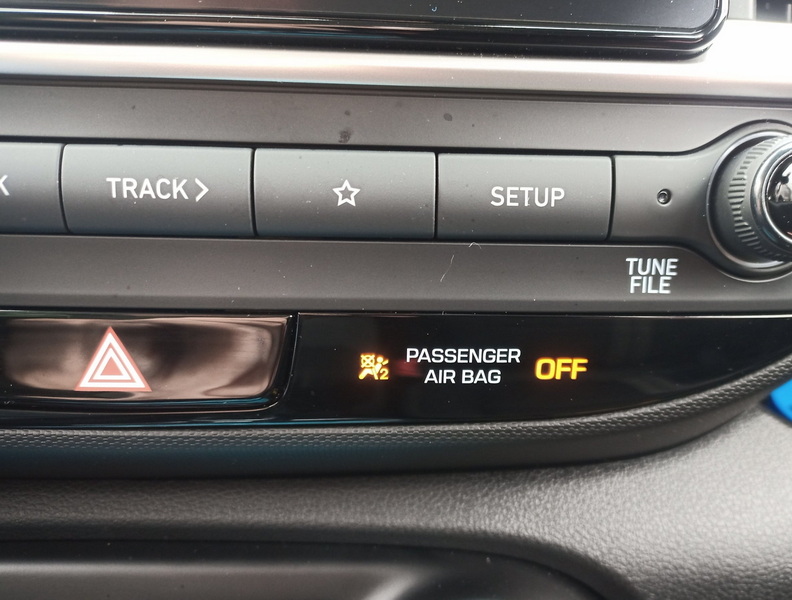

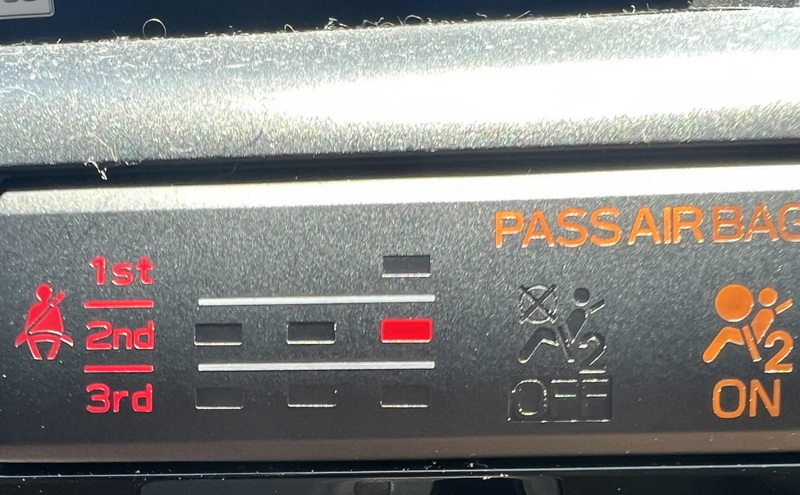

- Airbag Warning Light: If the seat belt warning is accompanied by an airbag warning light, this indicates a potential fault in the Supplemental Restraint System (SRS) and should be addressed immediately.
- Calibration Needed: After replacing parts like the seat belt tension sensor or occupant weight sensor, professional calibration is necessary to ensure proper system function.
- Electrical or Wiring Repairs: If you suspect wiring issues or cannot identify the source of the problem, a professional technician will have the tools and experience to diagnose and repair the system safely.
Warning: Disabling the seat belt warning system is not recommended, as it removes a critical safety reminder. However, for those who need to reset the system after a repair or for diagnostic purposes, here's how it's done in some Subaru models:
1. Turn the ignition on (engine off).
2. Buckle and unbuckle the seat belt 20 times within 30 seconds.
3. Turn the ignition off.
4. Restart the vehicle to check if the warning light is reset.
This process may vary by model and year. Always consult your owner's manual.
Some owners may be tempted to disable the seat belt warning chime or light. While there are methods to do this (such as disconnecting the seat belt buckle switch or using aftermarket devices), it is not recommended. Doing so can compromise your safety and may affect other systems, such as airbag deployment.
The Subaru seat belt sensor warning light is a vital component of your vehicle's safety system. It works in conjunction with the Subaru seat belt tension sensor, occupant weight sensor, and airbag system to ensure optimal protection for you and your passengers. Most issues can be traced to simple causes like an unfastened belt, a dirty buckle, or objects on the seat. However, persistent or complex problems may require professional diagnosis and repair.
Ignoring the warning light can compromise your safety and the effectiveness of your Subaru's advanced restraint systems. Always address warning lights promptly and seek professional help if needed. Regular inspection and maintenance of your seat belt system will help keep your Subaru's safety features working as intended, providing peace of mind for every journey.
The seat belt tension sensor measures how tightly the seat belt is fastened and sends this information to the vehicle's control modules. This data helps determine airbag deployment and ensures the seat belt system is functioning correctly.
Yes. If the seat belt tension sensor or occupant weight sensor malfunctions, it can provide incorrect data to the airbag controller, potentially causing the airbag to deploy incorrectly or not at all in a crash.
Common reasons include a dirty or faulty seat belt buckle switch, a malfunctioning seat belt tension sensor, or electrical/wiring issues. Sometimes, objects on the seat can also trigger the warning.
Recalibration typically requires a Subaru Select Monitor diagnostic tool. The process involves following on-screen prompts to zero and calibrate the sensor system, ensuring accurate readings.
Disabling the seat belt warning is not recommended, as it removes a critical safety feature. The warning system is designed to remind occupants to buckle up, which is essential for safety. Only disable for diagnostic or repair purposes, and restore functionality afterward.
