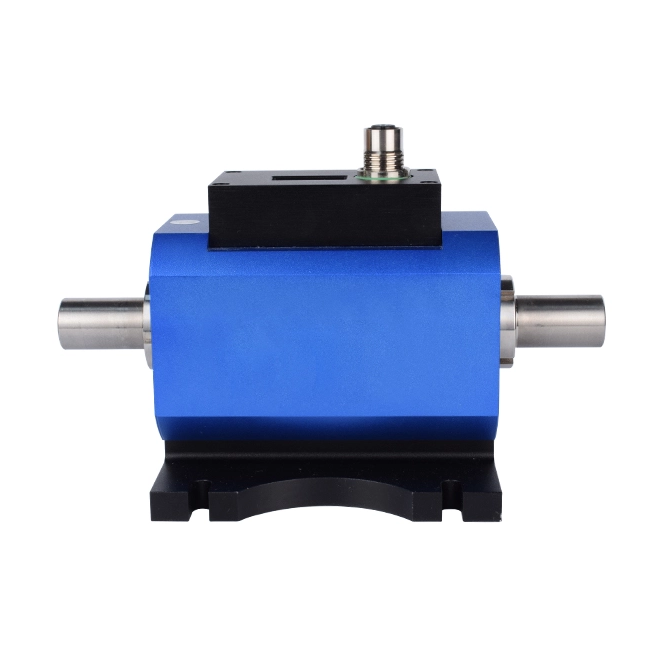

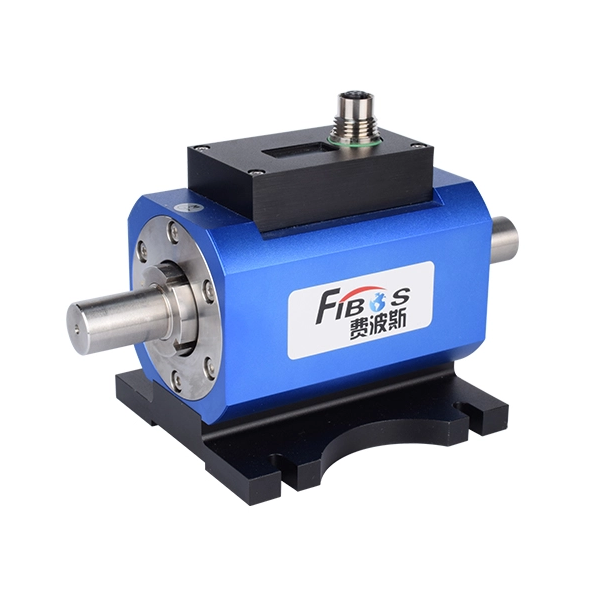

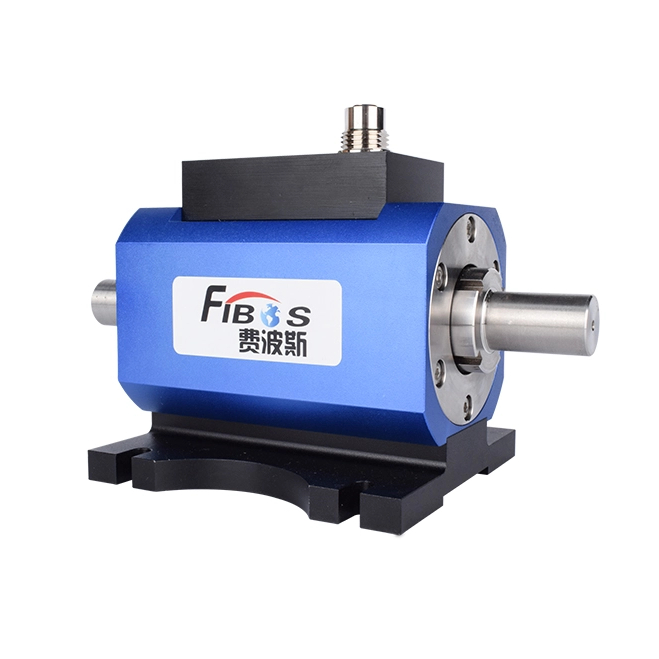

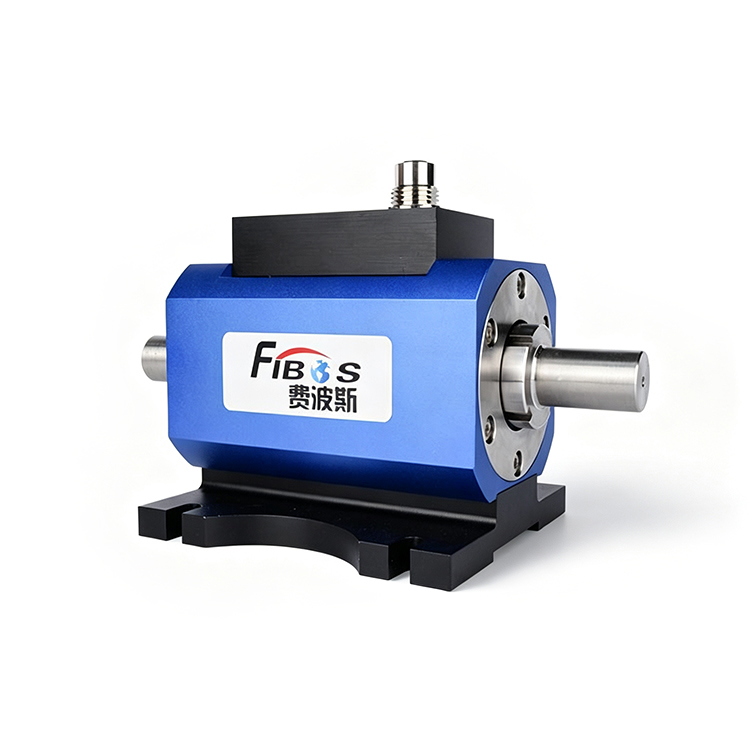

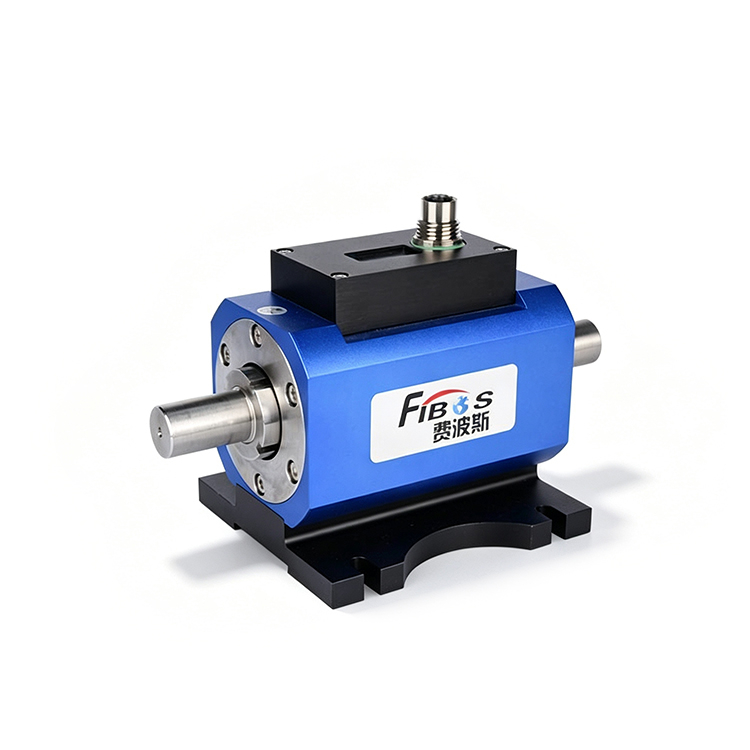

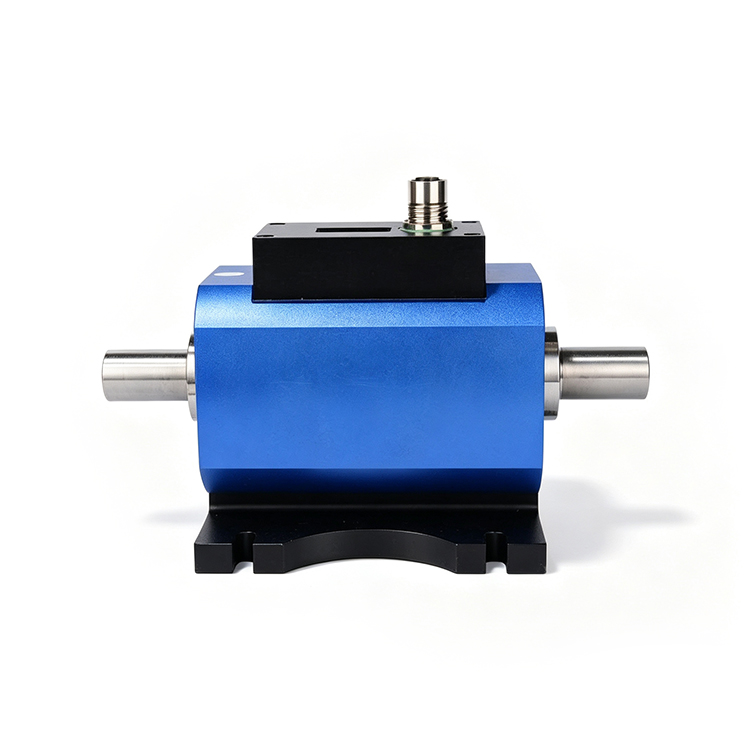

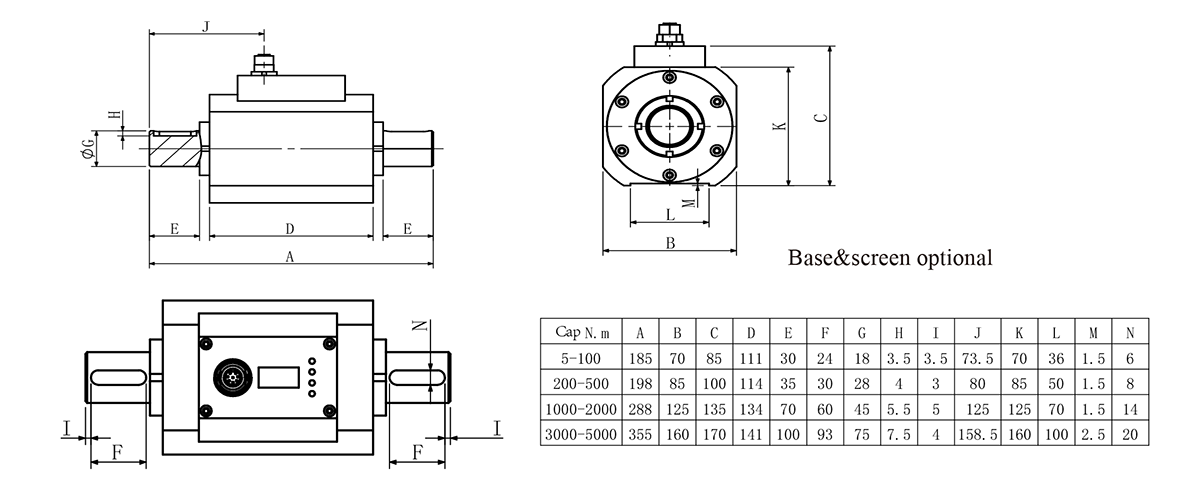

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

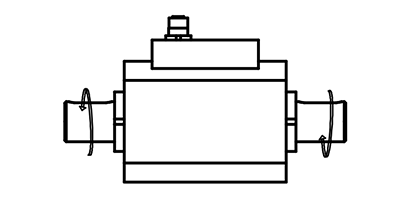

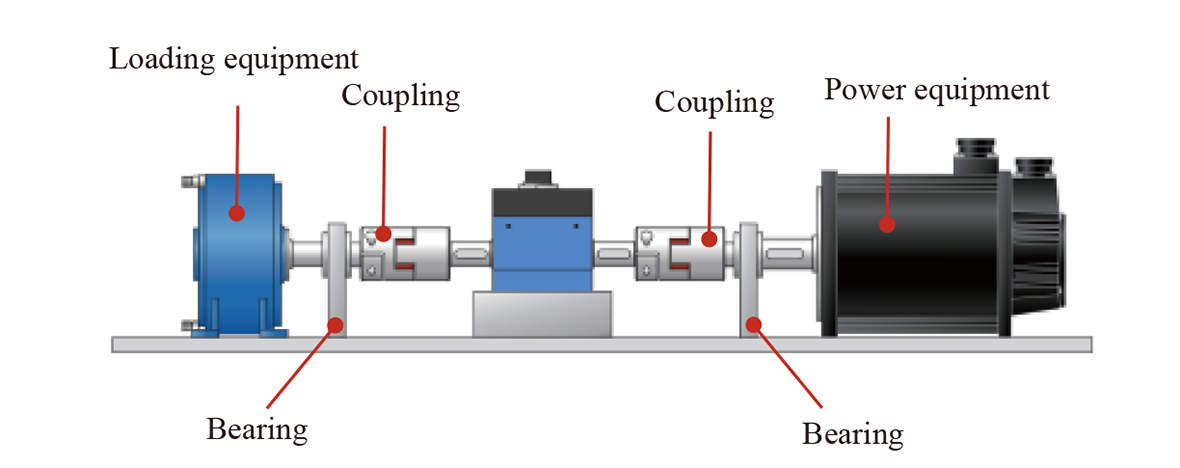

| Load Direction | Function Feature |
 |
▶ It can measure both static torque and dynamic torque High detection accuracy and good stability; Strong anti-interference ability; ▶ Small size, light weight, multiple installation structures, easy to install and use; ▶ Continuous measurement of forward and reverse torque without repeated zeroing. |
| Specifications |
Specifications |
Technique |
Capacity |
0.1,0.2,0.5,1,2,3,5,10N.m |
Sensitivity |
1.5±10%mV/V |
Zero Balance |
±2%mV/V |
Creep |
≤0.05%F.S. |
Non-linearity |
≤0.1%F.S. |
Hysteresis |
≤0.05%F.S. |
Repeatability |
≤0.05%F.S. |
| Input Impedance | 350±5Ω |
| Output Impedance | 350±5Ω |
Temp. effect on sensitivity |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation Resistance |
≥5000MΩ/100V(DC) |
Recommended Excitation |
5~15V |
| Max. Excitation | 20V |
| Compensated Temp. Range | -10~60℃ |
| Operating Temp. Range | -20~80℃ |
| Safe Overload | 120%F.S. |
| Ultimate Overload | 150%F.S. |
| Cable size | Φ3x3000mm |
| Material | Aluminium Alloy |
Red: EXC+; Black: EXC-; Green: Torque A+; Yellow: Speed B+; White: Torque A-; Blue: Speed B-; Brown: RS485 A+/RS232 Txd/CAN H+; Grey: TS485 B-/RS232RxD/CAN L- |
|
