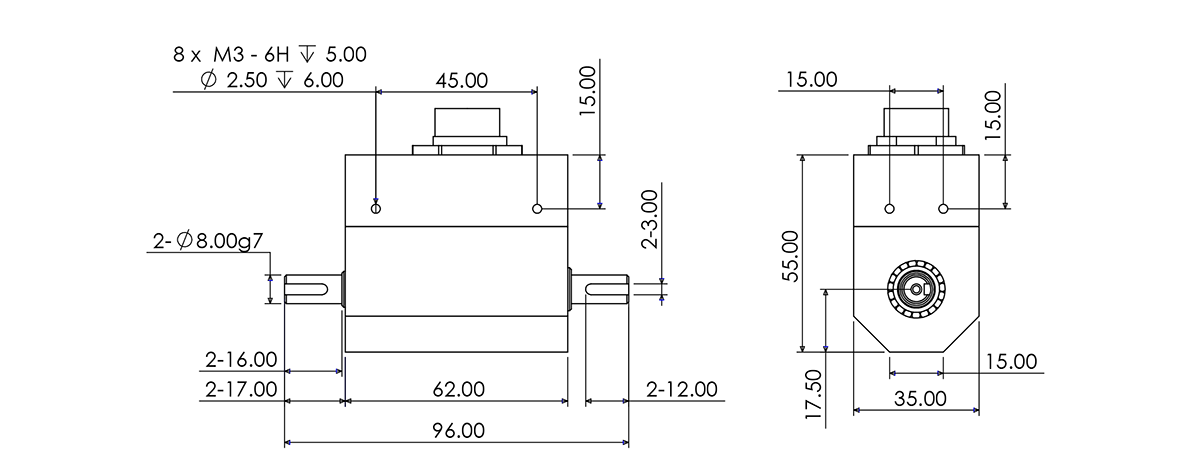

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

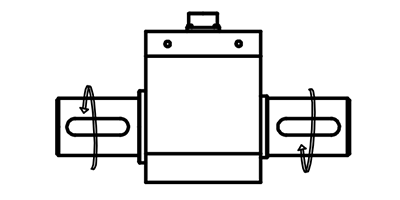

| Load Direction | Wiring |
 |  |
| Specifications |
Specification | Technique |
Rated Torque | 0.1/0.2/0.5/1/2/5N.m |
Speed Range | ≤8000rpm |

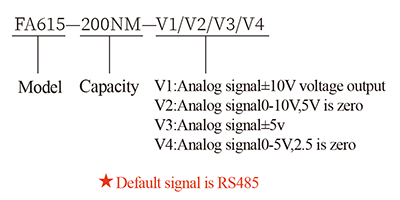

Torque Signal | RS485/±10V/±5V/0-10V/0-5V/5-15KHz |
Speed Signal | RS485/60pulse |
Accuracy | ±0.2%F.S |
Overload Capacity | 150% |
Frequency Response | 1ms |
Operating Temperature | -20~80℃ |
Temp. effect on zero | 0.15%F.S./10℃ |
Temp. effect on sensitivity | 0.15%F.S./10℃ |
Power Supply | 24VDC±15% |
Material | Shell: Aluminium; Axis: 17-4PH |
Cable size | Φ6x3000mm |
Red: 24V+; Black: 24V-; Green: RS485(B); Orange:RS485(A); Brown: Torque frequency output; White: Speed output; Blue: Analog voltage+ Yellow: Signal common | |

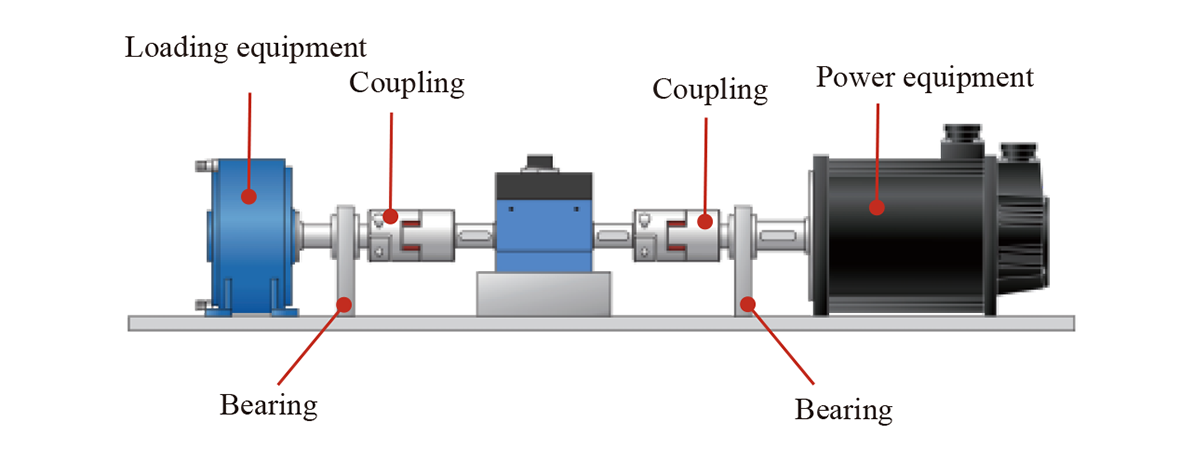

| Installation |
| Delivery Configurations |
