Load cells are essential devices used in various industries to measure force, weight, and load. They convert mechanical force into an electrical signal, enabling precise measurement of forces in applications ranging from industrial weighing to material testing. The question arises: Can one load cell measure both compression and tension forces? This article delves into the capabilities of load cells, particularly focusing on their ability to measure both types of forces, their design, applications, advantages, and more.
Load cells are transducers that convert mechanical force into an electrical signal. They typically consist of a metal body that deforms under load, with strain gauges bonded to this body to measure the deformation. The most common types of load cells include:
- Compression Load Cells: Designed to measure pushing forces.
- Tension Load Cells: Primarily used for measuring pulling forces.
- Universal Load Cells: Capable of measuring both tension and compression forces.
The operation of load cells relies on the principle of strain gauges, which change their electrical resistance when deformed. This change is proportional to the force applied, allowing for accurate measurements. The most common configurations for strain gauge load cells include:
- Wheatstone Bridge Configuration: A circuit that balances two legs of a bridge circuit, enhancing measurement accuracy.
- Shear Beam Load Cells: Typically used in applications requiring high precision.

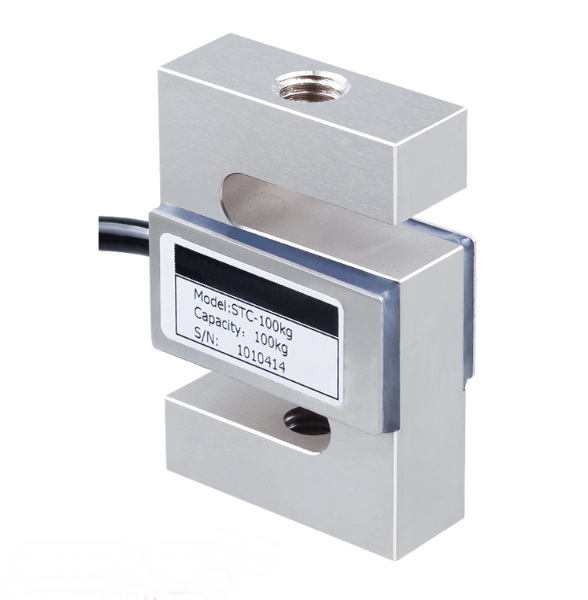

- S-Type Load Cells: Often used in tension applications due to their design.
The primary distinction between compression and tension load cells lies in the direction of the force they measure:
| Type | Measurement Direction | Key Characteristics |
|---|---|---|
| Compression Load Cell | Measures pushing forces | Unidirectional; typically placed beneath the load |
| Tension Load Cell | Measures pulling forces | Can measure both tension and compression; often S-shaped |
Compression load cells are designed to handle downward forces, while tension load cells can be calibrated to handle both directions. This versatility is particularly beneficial in applications where loads may shift between tension and compression.
Yes, certain types of load cells can accurately measure both compression and tension forces. Universal load cells are specifically designed for this purpose. They employ advanced technology that allows them to switch between measuring tension and compression without losing accuracy.
1. Versatility: Ideal for applications that experience varying loads.
2. Cost-Effectiveness: Reduces the need for multiple types of load cells in a single application.
3. Simplified Calibration: Universal load cells can be calibrated for both types of measurements easily.
4. Compact Design: Many universal load cells are designed to be compact, making them suitable for limited spaces.
5. Enhanced Accuracy: Advanced technology ensures that measurements remain accurate across different loading conditions.
Load cells find use in a wide array of applications across different sectors:
- Industrial Weighing: Used in scales for weighing heavy materials and products.
- Material Testing: Employed in laboratories to test the tensile strength of materials.
- Medical Equipment: Utilized in devices that require precise weight measurements, such as patient scales.
- Construction and Engineering: Used for monitoring structural loads and ensuring safety standards.
- Aerospace Testing: In aerospace engineering, load cells are critical for testing components under various stress conditions.
1. Automotive Industry: In automotive manufacturing, load cells are employed during crash testing to measure impact forces on vehicles.
2. Food Processing: In food processing plants, load cells ensure accurate weighing during ingredient mixing and packaging processes.
3. Pharmaceuticals: In pharmaceutical manufacturing, precise weight measurements are crucial for dosage accuracy; hence, load cells play an integral role.
4. Civil Engineering Projects: During construction projects such as bridges or buildings, load cells monitor stress levels on structural components to prevent failures.
5. Research Laboratories: In research settings, scientists use load cells for experiments requiring precise force measurements across various materials.
When selecting a load cell for measuring both compression and tension, several design factors must be considered:
- Material Durability: Load cells should be made from materials resistant to environmental factors such as moisture and corrosion.
- Size and Shape: Depending on the application, the size and shape may impact installation and measurement accuracy.
- Calibration Requirements: Regular calibration ensures long-term accuracy, especially in critical applications.
- Temperature Sensitivity: Some applications may involve extreme temperatures; thus, choosing a temperature-compensated load cell is vital.
- Signal Conditioning Needs: Depending on the application, additional signal conditioning may be required to enhance measurement accuracy.
Proper installation is crucial for ensuring accurate readings from load cells measuring both compression and tension:
1. Alignment: Ensure that the load cell is aligned correctly with the direction of the applied force to prevent measurement errors.
2. Mounting Hardware: Use appropriate mounting hardware that can withstand the expected loads without introducing additional stress on the load cell itself.
3. Environmental Protection: If operating in harsh conditions (e.g., high humidity or dust), consider using protective enclosures or selecting sealed load cell options.
4. Regular Maintenance Checks: Conduct routine inspections to identify any wear or damage that could affect performance over time.
5. Electrical Connections: Ensure all electrical connections are secure and insulated to prevent interference from external sources.
While universal load cells offer many advantages, there are challenges associated with measuring both compression and tension:
1. Calibration Complexity: Calibrating a universal load cell requires careful attention to ensure it accurately measures both types of forces without bias toward one direction over another.
2. Signal Noise Interference: Electrical noise can affect readings; therefore, using proper shielding techniques is essential during installation.
3. Temperature Drift Issues: Changes in temperature can affect measurements; thus, selecting a temperature-compensated model is advisable for critical applications.
4. Mechanical Limitations: Some designs may have mechanical limitations that restrict their effective range when switching between tension and compression measurements.
As technology advances, several trends are emerging within the field of load cell design:
1. Wireless Technology Integration: Wireless load cells allow for remote monitoring without cumbersome wiring systems, enhancing flexibility in various applications.
2. Smart Sensors: The integration of IoT (Internet of Things) technology enables real-time data collection and analysis from load cells across networks.
3. Enhanced Materials: Research into new materials promises improved durability and performance under extreme conditions while reducing weight.
4. Advanced Signal Processing: Innovations in digital signal processing enhance measurement accuracy by filtering out noise more effectively than traditional methods.
5. Sustainability Focus: As industries move toward sustainability goals, manufacturers are developing eco-friendly materials and production processes for load cells.
Load cells are essential tools for accurately measuring both compression and tension forces. While traditional compression and tension load cells serve specific purposes, universal load cells provide a flexible solution capable of handling various applications. Their design allows them to maintain high accuracy across different loading conditions, making them invaluable in industrial settings. As technology continues to evolve, we can expect further advancements that will enhance the capabilities and applications of these critical devices.
Compression load cells measure downward forces only, while tension load cells measure upward or pulling forces. Some tension load cells can also measure compression.
Yes, universal load cells are designed to accurately measure both types of forces.
If you notice discrepancies in measurements or if it has been a significant amount of time since its last calibration, it may need recalibration.
Load cells are widely used in industries such as manufacturing, construction, healthcare, aerospace testing, food processing, pharmaceuticals, civil engineering projects, automotive industry research laboratories among others.
Ensure proper installation alignment, use appropriate mounting hardware, conduct regular calibrations to maintain accuracy while considering environmental factors affecting performance over time.
