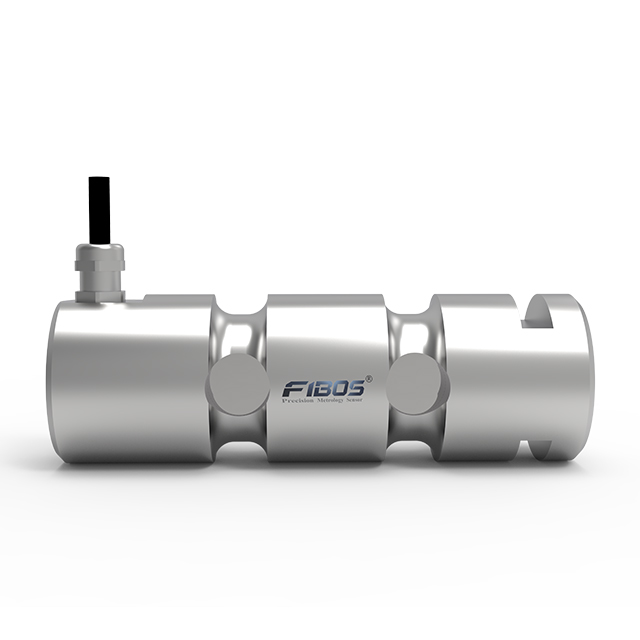

Heavy duty load pin

The FA9192 shaft pin sensor is made of 17-4PH stainless steel, with a measurement range of 100kN, an overall accuracy of ±0.1%, an output of 2.0 mV/V, an overload capacity of 150%, IP66 protection, and a working temperature range of -20 to 70℃. It features a bidirectional torsion and bending resistance structure, making it suitable for precise measurement in various applications such as lifting, ports, automation, and aerospace.

• High precision, excellent stability, compact structure and integrated design

• High torsional and bending resistance

• High sealing performance and environmental adaptability

• Diverse output signals

• Primarily suitable for: lifting machinery, ports and terminals, industrial automation, aerospace and marine applications, electronic crane scales, etc.

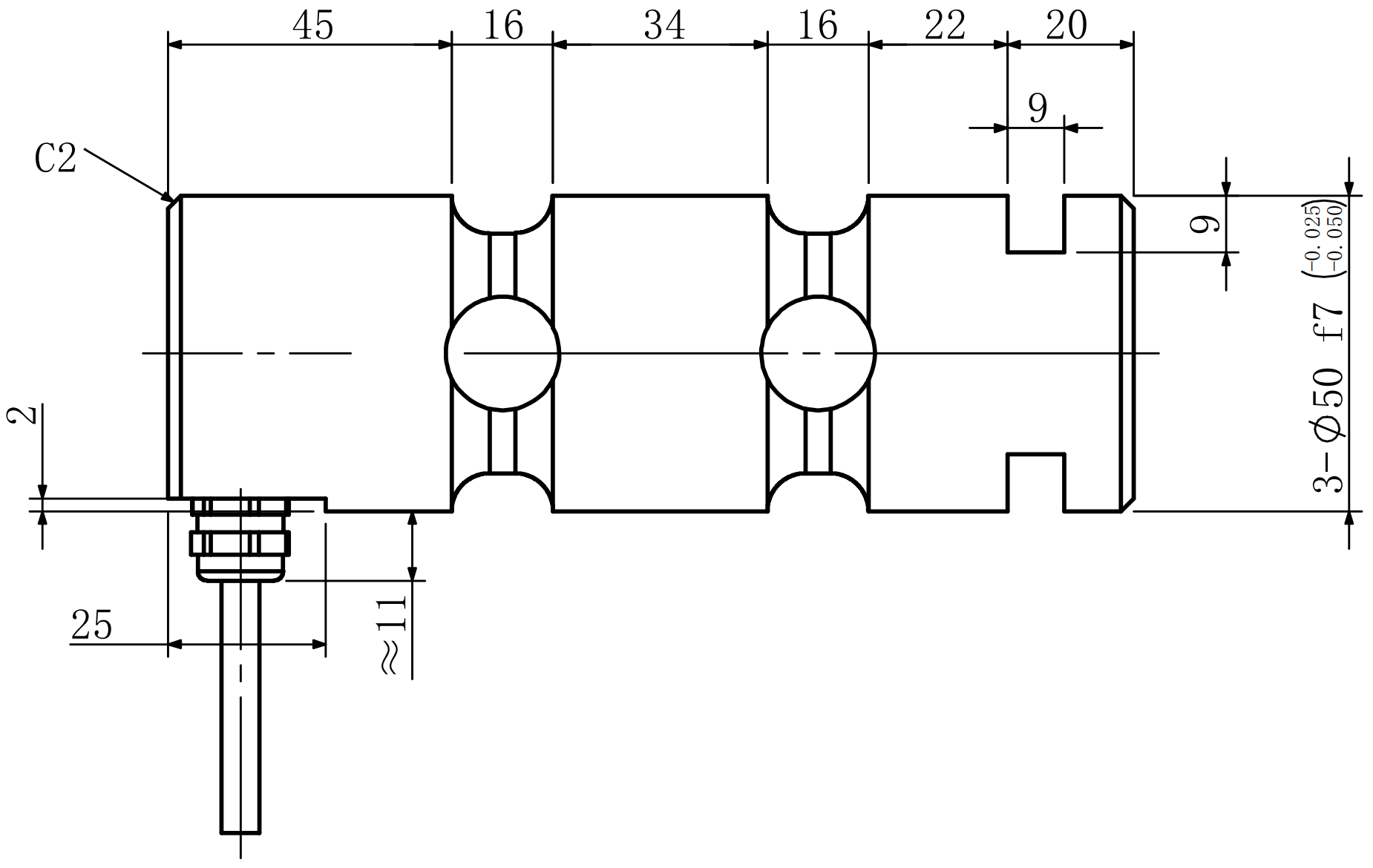

Sensor Physical Parameters
Nominal Capacity	100kN
Deflection at Full Scale	-
Fundamental resonance frequency (f_G)	-
Safe Overload	150%F.S.
Operating Temperature	-20~70℃
Ingress Protection (IP)	IP66
Cable	φ5x3m
Spring Element Material	Stainless steel

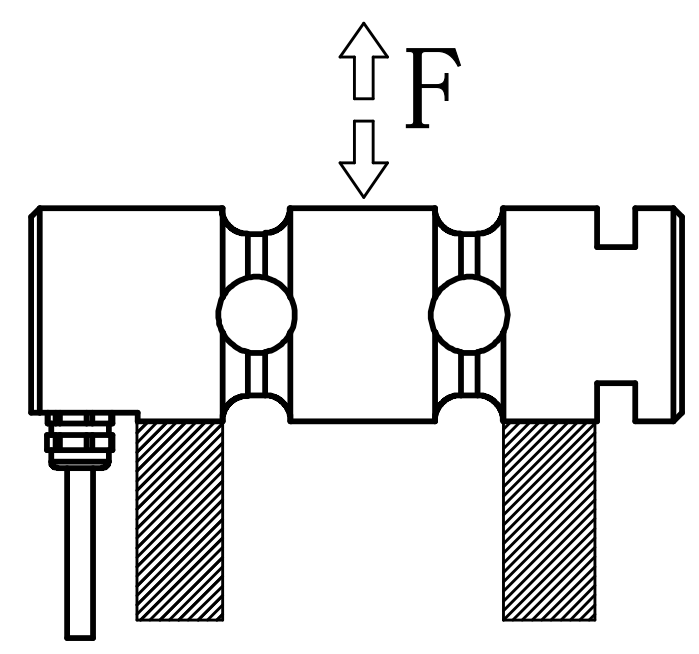

Loading Direction	Two-way
Sensor Accuracy Parameters
Combined Error	±0.5%F.S.
Non-linearity	≤0.5%F.S.
Hysteresis	≤0.2%F.S.
Repeatability	≤0.25%F.S.
Creep(30min)	±0.1%F.S.
Temperature Effect on Output	0.1%F.S./10℃
Electrical Parameters
Rated Output	2.0±10%mV/V
Excitation Voltage	5~10V DC
Insulation Resistance	≥5000MΩ/100V(DC)

Sensor Styling Suggestions

Force sensor manufacturing process

Sensor Non-standard customisation process

Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe.

Customer case studies for the Torque series

Frequently Asked Questions about Force Sensors

Q1：What is a shaft pin sensor and where is FA9192 used?

A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9192 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.

Q2：Does FA9192 support unidirectional or bidirectional measurement?

A:The FA9192 supports bidirectional force measurement, allowing detection of both tension and compression.

Q3：What is the protection rating and environmental capability?

A: The FA9192 has an IP65 rating and operates reliably in temperatures from -20°C to +70°C, suitable for harsh environments.

Q4：What should be considered during installation?

A:

• Ensure proper alignment with mounting holes

• Avoid side loads and impact forces

• Install according to load direction

• Secure properly to prevent loosening
