In various industries, precise measurement of tension forces is crucial. Small load cells, particularly those designed for tension measurement, have become essential tools in applications ranging from material testing to robotics. This article explores the accuracy of small load cells in measuring tension forces, their operational principles, factors affecting their accuracy, and practical applications.

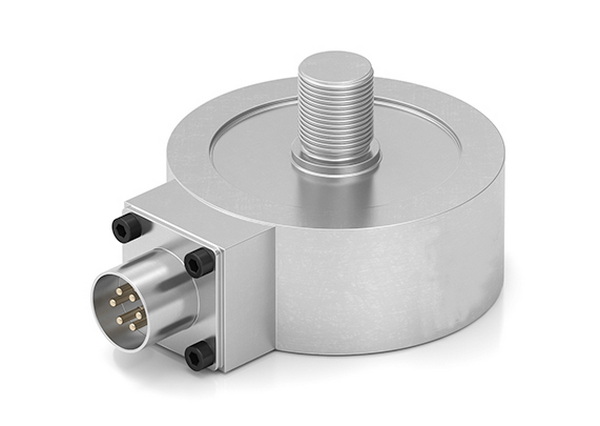

Small load cells, often referred to as miniature load cells, are compact devices that convert mechanical force into an electrical signal. They are equipped with strain gauges that deform under load, producing a change in electrical resistance. This change is then translated into a measurable output that indicates the amount of force applied.

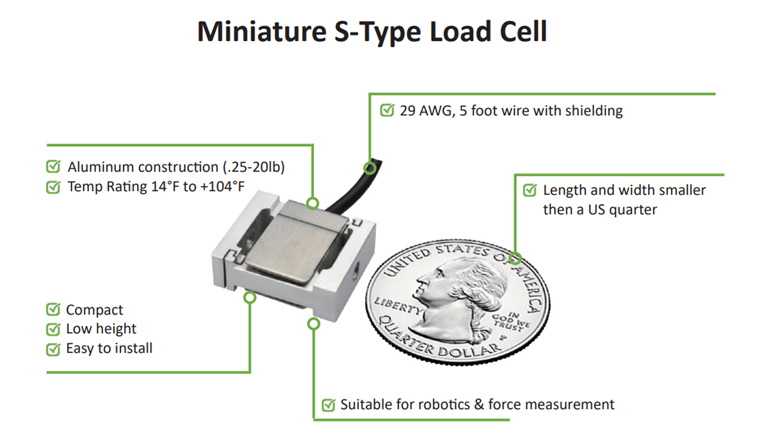

- S-Type Load Cells: These are commonly used for both tension and compression measurements. Their design allows for high accuracy and versatility in various applications.
- Miniature Load Cells: These are specifically designed for applications where space is limited but require high precision. They can measure forces as low as a few grams up to several hundred pounds.

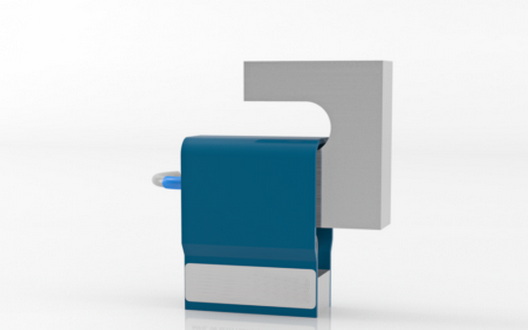

- Tension Load Cells: Specifically designed to measure tension forces, these load cells are often used in hanging scales and industrial applications where precise force measurement is critical.
The operation of small load cells is based on the principle of strain gauges. When a load is applied:
1. The load cell deforms slightly.
2. Strain gauges bonded to the load cell body also deform.
3. This deformation changes the electrical resistance of the strain gauges.
4. The change in resistance generates a voltage signal proportional to the applied force.
The output can be calibrated to provide accurate readings across a specified range of forces.
The accuracy of small load cells in measuring tension forces can be influenced by several factors:
- Calibration: Proper calibration is essential for ensuring accurate measurements. Load cells should be calibrated regularly to maintain their accuracy.
- Non-Linearity: This refers to how much the output deviates from a straight line when plotted against the input force. High-quality load cells exhibit minimal non-linearity.
- Hysteresis: This is the difference in output when loading and unloading the cell with the same force. A low hysteresis percentage indicates higher accuracy.
- Temperature Effects: Temperature variations can affect the performance of strain gauges, leading to inaccuracies if not properly compensated.
- Mechanical Installation: Improper installation can introduce errors in measurements due to misalignment or external forces acting on the load cell.
Small load cells typically offer high accuracy levels, often expressed as a percentage of full scale (FS). For instance:
- Many miniature S-type load cells provide accuracies better than ±0.1% of full scale.
- Some advanced models achieve accuracies as low as ±0.01%, making them suitable for high-precision applications like aerospace testing and medical devices.
Calibration is a critical process that ensures small load cells provide accurate readings. The process generally involves:
1. Setting Up Calibration Equipment: Use certified weights or calibration standards.
2. Zeroing the Load Cell: Ensure that the output reads zero before applying any weight.
3. Applying Known Weights: Gradually apply known weights and record the output at each step.
4. Creating a Calibration Curve: Plot the recorded outputs against known weights to create a calibration curve.
5. Adjusting Settings: If discrepancies are found, adjustments may be made to the load cell settings or software to ensure accuracy.
Small load cells are used across various industries due to their compact size and high accuracy:
- Material Testing: In laboratories, they measure tensile strength and other mechanical properties of materials.
- Robotics: Used in robotic arms for precise control and feedback on applied forces during operations.
- Medical Devices: In applications such as prosthetics and rehabilitation equipment where accurate force measurement is critical.
- Industrial Automation: Employed in assembly lines for quality control and monitoring of forces exerted during manufacturing processes.
- Aerospace Testing: In aerospace engineering, small load cells are used to measure forces on components during stress testing.
1. Compact Size: Ideal for applications with limited space.
2. High Sensitivity: Capable of detecting minute changes in force, which is crucial for precision tasks.
3. Versatility: Can be used for both tension and compression measurements depending on design.
4. Durability: Many small load cells are built to withstand harsh environments, ensuring longevity and reliability.
5. Ease of Integration: Their compact design allows easy integration into existing systems without significant modifications.
6. Cost-Effectiveness: While high precision may come at a premium, many small load cells offer competitive pricing compared to larger counterparts without sacrificing performance.
Despite their advantages, measuring tension forces using small load cells can present challenges:
- Environmental Factors: Changes in humidity and temperature can affect readings.
- Dynamic Loads: Rapidly changing loads may exceed the capacity or response time of smaller load cells, leading to inaccuracies.
- Installation Issues: Ensuring proper alignment and secure mounting is crucial for accurate measurements.
- Signal Interference: Electromagnetic interference from nearby equipment can affect signal integrity, leading to inaccurate readings if not properly shielded or filtered.
To maximize accuracy and reliability when using small load cells:
1. Regular Calibration: Schedule regular calibration sessions based on usage frequency and environmental conditions.
2. Proper Installation: Follow manufacturer guidelines for installation to avoid misalignment or external stress on the load cell.
3. Environmental Control: If possible, operate within controlled temperature and humidity environments to minimize external influences on measurements.
4. Use Shielded Cables: Employ shielded cables for connections to reduce electromagnetic interference from surrounding equipment.
5. Monitor Performance Regularly: Implement routine checks on performance metrics such as zero balance and linearity to catch potential issues early.
Small load cells play a vital role in accurately measuring tension forces across various applications. Their compact design does not compromise their sensitivity or accuracy, making them indispensable tools in modern engineering and manufacturing environments. Regular calibration and attention to environmental factors are essential for maintaining their performance over time. As technology advances, we can expect further improvements in the design and functionality of small load cells, enhancing their applicability across even more fields.
Most small load cells offer accuracies ranging from ±0.1% to ±0.01% of full scale, depending on their design and calibration.
It is recommended to calibrate small load cells at least once a year or more frequently if used in critical applications or harsh environments.
Yes, many small load cells are designed to measure both tension and compression forces effectively.
Factors include calibration quality, non-linearity, hysteresis, temperature variations, and mechanical installation conditions.
They are widely used in material testing labs, robotics, medical devices, and industrial automation systems due to their precision and compact size.
