Measuring force is a fundamental requirement in many engineering and hobbyist projects. Whether you're building a digital scale, a robotic arm, or a materials testing rig, accurately sensing force is crucial. One versatile and cost-effective solution involves using a sensor tension device with an Arduino microcontroller. This article will guide you through the process of using a tension load cell with an Arduino for force measurement, covering hardware setup, programming, calibration, and practical applications.
Before diving into the specifics of using a sensor tension device with an Arduino, it's essential to understand the types of force sensors available and their principles of operation. Force sensors, also known as force transducers, convert mechanical force into an electrical signal that can be measured and interpreted by a microcontroller like the Arduino.
1. Force Sensitive Resistors (FSRs):
- FSRs are variable resistors whose resistance changes with the applied force[1]. They are simple to use but generally less accurate and more susceptible to drift than other types of force sensors[2].
- Applications: Qualitative force measurement, such as detecting a press or touch[1].
- Advantages: Low cost, ease of use[1].
- Disadvantages: Non-linear response, sensitivity to force distribution, less accurate[2].
2. Load Cells:
- Load cells measure force by detecting the deformation of a mechanical structure under load[7]. They typically use strain gauges arranged in a Wheatstone bridge configuration to measure this deformation[7].
- Applications: Precise weight and force measurements, digital scales, materials testing[9].
- Advantages: High accuracy, linear response, robust[9].
- Disadvantages: More complex circuitry, higher cost[7].
3. Strain Gauges:
- Strain gauges are small resistors that change resistance when subjected to mechanical strain[7]. They are often bonded to a structure to measure its deformation under load[5][7].
- Applications: Measuring stress and strain in structures, force measurement in control sticks[5].
- Advantages: High sensitivity, can be applied to various surfaces[7].
- Disadvantages: Requires stable power supply and instrumentation amplifiers, sensitive to temperature changes[5].
- Accuracy: Determine the required accuracy for your application. Load cells and strain gauges generally offer higher accuracy than FSRs[9].
- Force Range: Select a sensor with a force range that matches the expected forces in your application[9].
- Sensitivity: Consider the sensitivity of the sensor, which determines the change in output signal for a given change in force[9].
- Environmental Conditions: Ensure the sensor can operate reliably in the expected temperature, humidity, and other environmental conditions[5].
- Cost: Balance the performance requirements with the budget constraints of your project.

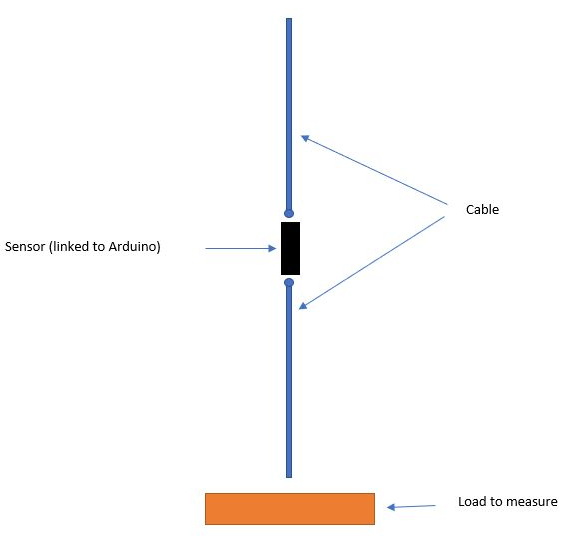

Tension load cells are specifically designed to measure tensile forces. These are ideal for applications where you need to measure how much something is being pulled. Here's how to use them effectively with an Arduino.
- Tension Load Cell: Select a load cell with an appropriate force range and mounting options for your project[9].
- HX711 Amplifier: The HX711 is a specialized amplifier designed for load cells. It amplifies the small voltage changes from the load cell and provides a digital output that can be easily read by the Arduino[7].
- Arduino Board: An Arduino Uno or Nano is suitable for most force measurement applications[1].
- Connecting Wires: For connecting the load cell, amplifier, and Arduino[1].
- Power Supply: A stable 5V power supply for the HX711 and Arduino[5].
1. Excitation Voltage (E+ and E-): Connect the E+ (excitation positive) and E- (excitation negative) wires from the load cell to the corresponding E+ and E- pins on the HX711[7]. These pins provide the power to the Wheatstone bridge inside the load cell.
2. Signal Wires (A+ and A-): Connect the A+ (amplifier positive) and A- (amplifier negative) wires from the load cell to the A+ and A- pins on the HX711[7]. These pins carry the small differential voltage signal from the Wheatstone bridge.
1. Data Pin (DT): Connect the DT (data) pin on the HX711 to a digital pin on the Arduino. For example, connect it to digital pin A1[9].
2. Clock Pin (SCK): Connect the SCK (clock) pin on the HX711 to another digital pin on the Arduino. For example, connect it to digital pin A0[9].
3. Power (VCC and GND): Connect the VCC pin on the HX711 to the 5V pin on the Arduino, and connect the GND pin on the HX711 to the GND pin on the Arduino[5].
To read the force measurements from the load cell, you'll need to use the HX711 library for Arduino. This library simplifies the process of reading the digital output from the HX711 amplifier.
1. Install the HX711 Library:
- Open the Arduino IDE.
- Go to Sketch > Include Library > Manage Libraries.
- Search for "HX711" and install the library by Bogdan Necula[5].
2. Basic Code Structure:
#include "HX711.h"
#define DT_PIN A1
#define SCK_PIN A0
HX711 scale;
void setup() {
Serial.begin(9600);
scale.begin(DT_PIN, SCK_PIN);
scale.set_scale();
scale.tare();
}
void loop() {
Serial.print("Reading: ");
Serial.print(scale.get_units(), 1);
Serial.println(" kg");
delay(1000);
}
Include the Library:
#include "HX711.h"
includes the necessary library for using the HX711 amplifier[9].
Define Pins:
#define DT_PIN A1
and
#define SCK_PIN A0
define the Arduino pins connected to the DT and SCK pins of the HX711[9].
Create HX711 Object:
HX711 scale;
creates an object of the HX711 class[9].
Initialize Serial Communication:
Serial.begin(9600);
initializes serial communication for displaying the readings on the serial monitor[9].
Begin Scale:
scale.begin(DT_PIN, SCK_PIN);
initializes the HX711 with the specified pins[9].
Set Scale:
scale.set_scale();
sets the scaling factor. This will be calibrated later[9].
Tare:
scale.tare();
sets the current reading as zero[9].
Read and Print Values: In the
loop()
function,
scale.get_units()
reads the force measurement, and
Serial.print()
displays the value on the serial monitor[9].
Calibration is crucial for obtaining accurate force measurements. The following steps outline the calibration process:
1. Determine Known Weights: Gather a set of known weights that cover the range of forces you expect to measure[9].
2. Place Known Weights on the Load Cell: Place each known weight on the load cell and record the corresponding readings from the serial monitor[9].
3. Calculate the Calibration Factor: Use the following formula to calculate the calibration factor:
Calibration Factor = (Known Weight) / (Reading)
Average the calibration factors obtained from each weight to get a more accurate value[9].
4. Update the Code: Modify the
scale.set_scale()
function in your code with the calculated calibration factor. For example:
scale.set_scale(122.0); // Replace 122.0 with your calibration factor
- Inconsistent Readings: Ensure the load cell is mounted securely and is not subjected to external vibrations[4].
- Drifting Values: Use a stable power supply and allow the load cell and HX711 to warm up before calibration[5].
- Incorrect Values: Double-check the wiring and calibration factor[4].
A digital scale is a common application for tension load cells and Arduino. By mounting a platform on top of the load cell, you can measure the weight of objects placed on the platform[9]. The Arduino can display the weight on an LCD screen or send the data to a computer for further analysis[7].
In robotics, tension load cells can be used to measure the forces exerted by a robotic arm[9]. This allows the robot to perform tasks that require precise force control, such as delicate assembly operations or handling fragile objects[5].
Tension load cells are essential in materials testing for measuring the tensile strength of materials[9]. By applying a controlled force to a sample and measuring the resulting deformation, engineers can determine the material's properties[7].
- Cost-Effectiveness: Arduino boards and force sensors are relatively inexpensive compared to specialized force measurement equipment[1].
- Ease of Use: The Arduino IDE and libraries simplify the programming process, making it accessible to beginners[1].
- Versatility: Arduino can be easily integrated with other sensors and devices, allowing for a wide range of applications[1].
- Customization: The open-source nature of Arduino allows for extensive customization and modification of the code[1].
Using a sensor tension device with an Arduino is a versatile and cost-effective solution for force measurement in various applications. By understanding the principles of operation, properly setting up the hardware, and carefully calibrating the sensor, you can achieve accurate and reliable force measurements. Whether you're building a digital scale, a robotic arm, or a materials testing rig, the combination of sensor tension and Arduino provides a powerful platform for your projects.

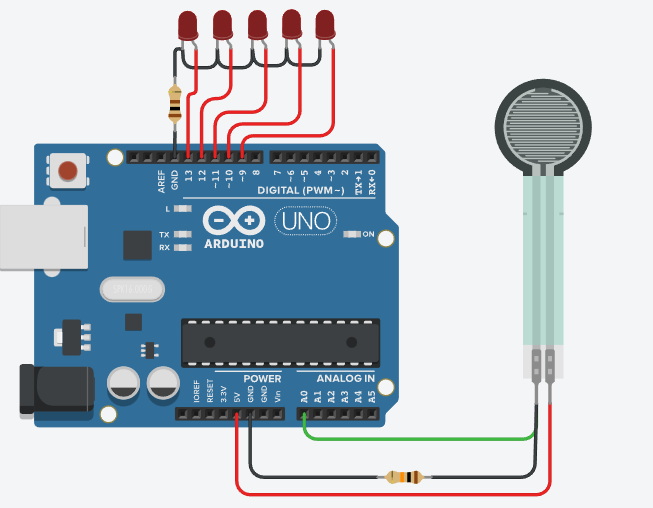

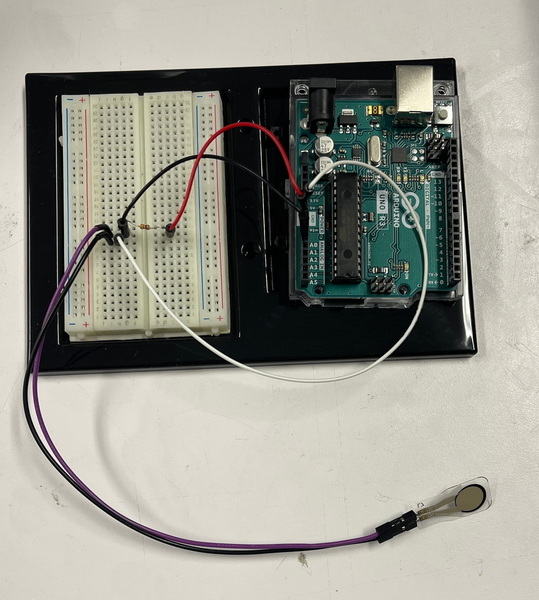

An FSR is a type of sensor whose resistance changes based on the amount of pressure applied to its surface[1]. When used with an Arduino, it's typically connected in a voltage divider configuration[1]. As pressure increases, the resistance of the FSR decreases, which in turn changes the voltage that the Arduino reads[1]. This voltage change can be interpreted by the Arduino to determine the amount of force applied[1].
Load cells generally offer higher accuracy and reliability compared to FSRs[7]. They use strain gauges to measure force, providing a more linear and stable output[7]. However, load cells are typically more expensive and require more complex circuitry, such as an HX711 amplifier[7]. FSRs, on the other hand, are cheaper and easier to use but are less accurate and can be affected by factors like temperature and the distribution of force on their surface[1].
To calibrate a load cell connected to an Arduino, you'll need known weights[9]. First, record the raw readings from the load cell with no weight applied (tare)[9]. Then, place known weights on the load cell and record the corresponding readings[9]. Use these data points to calculate a calibration factor (the ratio of weight to reading)[9]. Apply this calibration factor in your Arduino code to convert the raw readings into accurate force measurements[9].
The HX711 is a specialized amplifier designed for load cells[7]. Load cells produce very small voltage changes in response to applied force, often in the millivolt range[7]. The HX711 amplifies this small voltage change, making it readable by the Arduino[7]. It also provides a stable and accurate digital output, reducing noise and improving the overall precision of the force measurement[7].
Yes, you can use multiple force sensors with a single Arduino, but the approach depends on the type of sensors[1]. For FSRs, you can use multiple analog pins on the Arduino, each connected to a separate FSR circuit[1]. For load cells with HX711 amplifiers, you'll need multiple digital pins for each HX711[7]. If you run out of pins, you can use multiplexers to expand the number of sensors you can read[1]. Keep in mind that using multiple sensors may require more complex code to manage and process the data from each sensor[1].
