Coating machines are essential in various industries, including manufacturing, packaging, and electronics, where they apply coatings to materials like paper, plastic, and metal. One critical component that ensures consistent coating quality is the tension roller sensor. These sensors play a pivotal role in maintaining optimal tension during the coating process, which is crucial for preventing defects and ensuring uniformity.

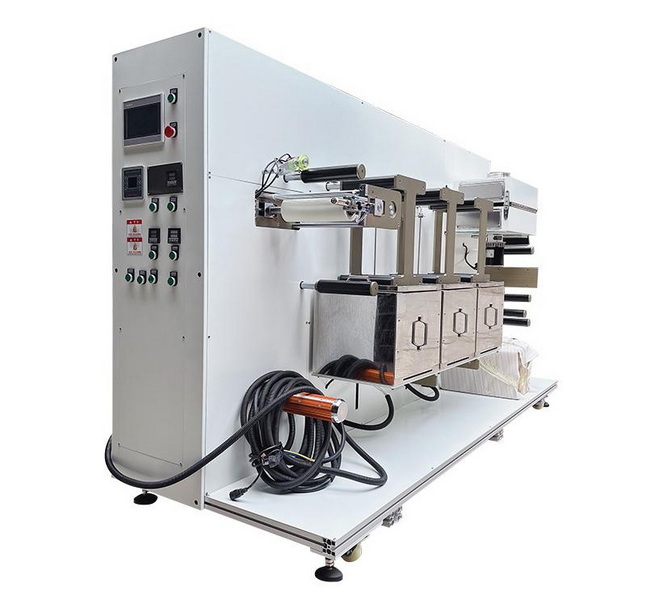

Coating machines are designed to apply a uniform layer of material onto a substrate. This process involves unwinding the substrate from a roll, applying the coating, and then rewinding it. The quality of the coating depends significantly on maintaining consistent tension throughout this process. Tension control systems, including tension roller sensors, are integral to achieving this consistency.
Tension control is vital in coating machines for several reasons:
1. Prevents Defects: Incorrect tension can lead to defects such as wrinkles, bubbles, or uneven coating thickness. Maintaining optimal tension ensures that the coating is applied smoothly and evenly.
2. Ensures Uniformity: Consistent tension helps in achieving uniform coating thickness, which is critical for meeting product specifications and quality standards.
3. Reduces Waste: By preventing defects, tension control minimizes material waste, thereby increasing production efficiency and reducing costs.
Tension roller sensors are designed to measure the tension in the substrate as it passes through the coating machine. These sensors typically use load cells or other force-measuring technologies to detect changes in tension.
There are several types of tension sensors used in coating machines, including:
- Shaft-Mounted Sensors: These are mounted directly on the shaft of the roller and measure the torque or force applied to the shaft.
- Through-Shaft Sensors: Similar to shaft-mounted sensors but are designed for applications where the sensor needs to be integrated into the roller's shaft.
- Cantilevered Sensors: These sensors are mounted on one side of the roller and measure the bending force caused by tension.

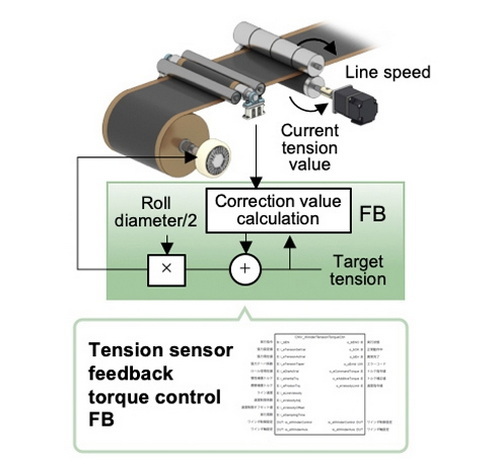

The functioning of tension roller sensors involves converting the mechanical force of tension into an electrical signal. This signal is then used by the control system to adjust the tension as needed. The process typically involves:
1. Measurement: The sensor measures the tension by detecting the force applied to the roller.
2. Signal Conversion: The mechanical force is converted into an electrical signal proportional to the tension.
3. Feedback Loop: The electrical signal is fed back into the control system, which adjusts the tension by controlling actuators such as brakes or clutches.
Recent advancements in tension sensor technology have improved their accuracy, reliability, and versatility. Some of these advancements include:
- High Precision Sensors: Modern sensors offer high precision measurements, ensuring that even slight changes in tension can be detected and corrected.
- Real-Time Monitoring: Advanced sensors provide continuous real-time feedback, allowing for immediate adjustments to maintain optimal tension.
- Non-Contact Sensors: Some systems use non-contact methods, such as air turn bars, to measure tension without physically touching the substrate. This reduces wear and tear on the material and the sensor.
Tension roller sensors are used in a wide range of applications beyond coating machines, including:
- Textile and Paper Production: Ensuring consistent tension is crucial in textile and paper manufacturing to prevent stretching or breaking of the material.
- Wire and Cable Production: Tension control is essential for maintaining uniform wire or cable thickness.
- Film and Foil Production: In the production of plastic films or metal foils, consistent tension ensures that the material is wound evenly onto rolls.
Despite the importance of tension roller sensors, there are challenges associated with their use:
- Calibration and Maintenance: Sensors require regular calibration and maintenance to ensure accuracy.
- Material Variability: Different materials have varying tension requirements, which can complicate the setup and operation of tension control systems.
Solutions to these challenges include:
- Advanced Calibration Techniques: Modern systems often include automated calibration features that simplify the process.
- Material-Specific Settings: Many control systems allow for pre-programmed settings tailored to specific materials, making it easier to switch between different substrates.
Tension roller sensors are indispensable components in coating machines, ensuring consistent coating quality by maintaining optimal tension throughout the coating process. Their ability to provide real-time feedback and adjust tension accordingly makes them crucial for preventing defects and improving production efficiency. As technology continues to evolve, we can expect even more precise and versatile tension control systems that adapt to a wide range of materials and applications.
A tension roller sensor measures the tension in the substrate as it passes through the coating machine, providing feedback to the control system to maintain optimal tension.
Non-contact tension sensors use methods like air turn bars to measure the pressure between the substrate and the sensor surface, allowing for tension measurement without physical contact.
Advanced sensors offer high precision, real-time monitoring, reduced material waste, improved efficiency, and enhanced product quality. They also provide versatility in adapting to different materials and production environments.
Tension roller sensors can be used with a variety of materials, including paper, plastic films, metal foils, textiles, and wires.
By maintaining optimal tension, these systems prevent defects such as wrinkles, bubbles, or uneven coating thickness, thereby minimizing material waste and improving production efficiency.
