In the realm of industrial applications, precision and reliability are paramount. One of the critical components that facilitate these attributes is the prime tension load cell. These devices are designed to measure tensile forces and convert them into an electrical signal, providing accurate data that is essential for various operations across multiple industries. This article delves into the workings, applications, benefits, and technological advancements of prime tension load cells, highlighting their significant role in enhancing industrial efficiency.
What is a Load Cell?
A load cell is a transducer that converts force or weight into an electrical signal. In the case of tension load cells, they specifically measure forces applied in tension. The operation of these devices typically involves strain gauges that detect deformation caused by the applied force. This deformation alters the electrical resistance of the strain gauges, allowing for precise calculations of tension.
Types of Tension Load Cells
There are several types of tension load cells designed for specific applications:
- S-Type Load Cells: These versatile cells can measure both tension and compression forces and are commonly used in various industrial applications.
- Tension Links: Designed for measuring in-line tensile loads, often used in crane scales and rigging applications.
- Canister Load Cells: Robust designs suitable for harsh environments, ideal for heavy-duty applications.

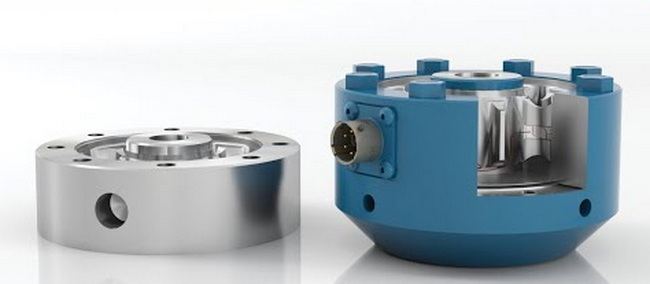

- Pancake Load Cells: Flat designs suitable for low-profile measurements.
The functionality of prime tension load cells is based on the principle of strain gauge technology. When a tensile force is applied to the load cell, it stretches slightly. This deformation changes the electrical resistance of the attached strain gauges. The relationship between this change in resistance and the applied force is linear, allowing for accurate measurements.
- Strain Gauges: These are bonded to the load cell's structure and detect deformation.
- Transducer: Converts mechanical deformation into an electrical signal.
- Signal Conditioning Circuitry: Processes the raw signal from the strain gauges to ensure accuracy and reliability.
Prime tension load cells find extensive use across various industries due to their versatility and precision. Some key applications include:
- Manufacturing: Used in production lines to monitor the tension in cables or wires during manufacturing processes.
- Automotive Testing: Essential for measuring forces during crash tests and component testing.
- Construction: Employed in structural testing to ensure that materials can withstand design loads.
- Aerospace: Used for testing aircraft components to guarantee safety and reliability under extreme conditions.
- Medical Devices: Integrated into equipment such as infusion pumps and rehabilitation devices to monitor forces accurately.
- Energy Sector: Utilized in monitoring cable tensions in wind turbines and power transmission lines, ensuring optimal performance and safety.
- Marine Applications: Applied in mooring systems where accurate tension measurements are crucial for safety during docking operations.
The integration of prime tension load cells into industrial processes offers numerous advantages:
- High Accuracy: They provide precise measurements critical for quality control and safety in manufacturing processes.
- Durability and Reliability: Built to withstand harsh conditions, these load cells maintain performance over time, reducing maintenance costs.
- Real-Time Data Monitoring: They enable continuous monitoring of forces, allowing for immediate adjustments to processes as needed.
- Cost Efficiency: By minimizing waste and ensuring optimal operational conditions, businesses can significantly reduce costs associated with material loss or equipment failure.
- Enhanced Safety Measures: By providing accurate data on tensile forces, these load cells help prevent equipment failures that could lead to accidents or injuries.
Recent advancements in load cell technology have led to enhanced functionalities:
- Wireless Load Cells: These eliminate the need for cumbersome wiring, making installation easier and reducing potential points of failure. Wireless technology allows for greater flexibility in placement and easier access to data remotely.
- Smart Load Cells: Equipped with sensors that provide real-time data analysis and diagnostics, improving operational efficiency. Smart load cells can communicate with other devices over networks, enabling predictive maintenance strategies that anticipate issues before they arise.
- Integration with IoT: The ability to connect with Internet of Things (IoT) platforms allows for better data management and predictive maintenance strategies. This integration facilitates seamless communication between devices and enhances overall operational efficiency by providing insights into performance trends over time.
To illustrate the effectiveness of prime tension load cells in industrial applications, consider the following case studies:
In an automotive manufacturing plant, prime tension load cells were implemented on assembly lines where components were subjected to high stress during assembly. By utilizing these load cells, engineers were able to monitor real-time data on tensile forces applied during assembly processes. This led to a 15% reduction in component failures due to improper torque application, significantly improving product reliability.
A wind farm operator integrated prime tension load cells into their turbine monitoring systems. The load cells measured cable tensions that secure turbine components against wind forces. With real-time monitoring capabilities, operators could predict when maintenance was needed based on tension data trends. This proactive approach reduced downtime by 20% and increased overall energy production efficiency by ensuring optimal turbine performance under varying weather conditions.
In a medical device manufacturing facility, prime tension load cells were used to ensure precise force measurements during the assembly of infusion pumps. By implementing these devices into their quality control processes, manufacturers achieved a significant decrease in product recalls due to malfunctioning pumps—down by 30%—enhancing patient safety while also improving brand reputation within the healthcare sector.
While prime tension load cells offer numerous benefits, there are challenges associated with their implementation:
- Calibration Requirements: Regular calibration is essential to maintain accuracy over time. Failure to calibrate can lead to erroneous readings which may compromise safety or quality standards.
- Environmental Factors: External conditions such as temperature fluctuations or electromagnetic interference can affect performance. It is crucial to select appropriate models designed for specific environmental conditions.
- Initial Costs: The upfront investment in high-quality prime tension load cells may be significant; however, this cost should be viewed against long-term savings from increased efficiency and reduced maintenance needs.
The future of prime tension load cells looks promising as technology continues to evolve:
- Advanced Materials: Research into new materials could lead to even more durable strain gauges capable of withstanding extreme conditions without losing accuracy or reliability.
- AI Integration: The incorporation of artificial intelligence could enhance data analysis capabilities further, allowing for smarter predictive maintenance solutions that learn from historical data patterns.
- Miniaturization: As industries trend towards automation and miniaturization of components, smaller yet highly accurate load cells will become increasingly important across various sectors.
Prime tension load cells play a pivotal role in enhancing industrial applications by providing accurate measurements essential for quality control, safety, and operational efficiency. Their versatility across various sectors—from manufacturing to aerospace—demonstrates their importance in modern industrial practices. As technology continues to evolve, so too will the capabilities of these devices, further solidifying their place as indispensable tools in ensuring precision and reliability in industrial operations.
Prime tension load cells are used primarily to measure tensile forces in various applications such as manufacturing, automotive testing, construction, aerospace, and medical devices.
A tension load cell works by using strain gauges that detect deformation when a tensile force is applied. This deformation changes the electrical resistance of the gauges, which is then converted into an electrical signal proportional to the applied force.
Industries such as manufacturing, automotive, aerospace, construction, medical devices, energy sector (especially wind energy), marine applications benefit significantly from using prime tension load cells due to their accuracy and reliability in measuring tensile forces.
The advantages include high accuracy in measurements, durability under harsh conditions, real-time data monitoring capabilities, cost efficiency by minimizing waste and ensuring optimal operational conditions, as well as enhanced safety measures preventing equipment failures that could lead to accidents or injuries.
Yes, recent advancements include wireless load cells that simplify installation; smart load cells with real-time data analysis capabilities; integration with IoT platforms for improved data management; advanced materials research; AI integration for smarter predictive maintenance solutions; and miniaturization trends within various sectors requiring smaller yet highly accurate measurement solutions.
