How Do Tension Load Cells Function To Measure Tensile Force?

Views: 222     Author: Leah     Publish Time: 2025-02-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

1. Introduction to Tension Load Cells

2. The Working Principle of Tension Load Cells

>> 2.1 How Strain Gauges Work

3. Types of Tension Load Cells

4. Applications of Tension Load Cells

5. Advantages of Using Tension Load Cells

6. Installation and Calibration

>> 6.1 Steps for Installation

>> 6.2 Calibration Procedure

7. Troubleshooting Common Issues

>> 7.1 Inaccurate Readings

>> 7.2 Signal Drift

>> 7.3 Mechanical Damage

8. Future Trends in Tension Load Cell Technology

Conclusion

FAQ

>> 1. What is a tension load cell?

>> 2. How do tension load cells work?

>> 3. What are common applications for tension load cells?

>> 4. How often should tension load cells be calibrated?

>> 5. Can tension load cells measure both tension and compression?

Citations:

Tension load cells are essential instruments in various industries, designed to measure tensile or pulling forces accurately. This article delves into the functioning of tension load cells, their applications, advantages, and how they convert mechanical force into electrical signals for precise monitoring.

tension load cell function

1. Introduction to Tension Load Cells

A tension load cell is a type of transducer that measures the tension or pulling force applied to it from a mechanical load. The primary function of these devices is to convert the mechanical force into an electrical signal that can be quantified and analyzed. This capability makes them invaluable in applications ranging from industrial weighing systems to structural monitoring.

2. The Working Principle of Tension Load Cells

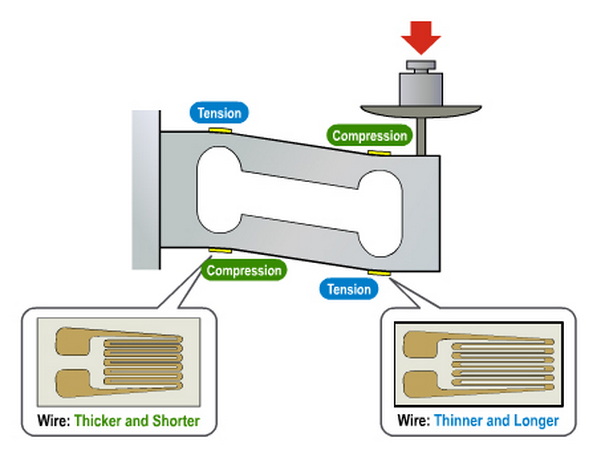

Tension load cells operate on the principle of strain gauge technology. When a tensile force is applied, the load cell deforms, causing changes in electrical resistance within the strain gauges attached to it.

Key Components:

- Strain Gauges: These are bonded to the load cell body and detect deformation.

- Wheatstone Bridge Configuration: This electrical circuit configuration allows for precise measurement of resistance changes.

- Output Signal: The change in resistance generates a voltage signal proportional to the applied force.

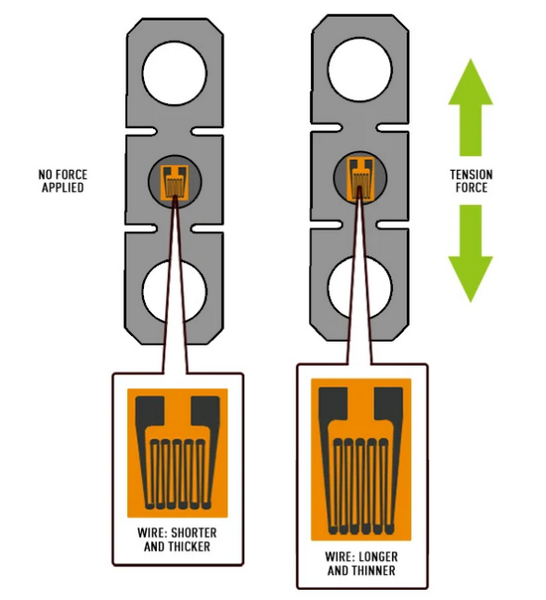

2.1 How Strain Gauges Work

When tension is applied:

- The strain gauges elongate and thin out, increasing their electrical resistance.

- This change in resistance is directly proportional to the amount of force applied, allowing for accurate measurements.

3. Types of Tension Load Cells

Tension load cells come in various designs suited for specific applications:

Type Description
S-Type Load Cells Commonly used for hanging scales and lifting applications.
Z-Type Load Cells Designed for applications requiring bi-directional sensitivity.
Tension Links Ideal for measuring loads in cranes and hoists.

Each type has its unique advantages that cater to specific measurement needs.

4. Applications of Tension Load Cells

Tension load cells are widely utilized across numerous sectors due to their versatility:

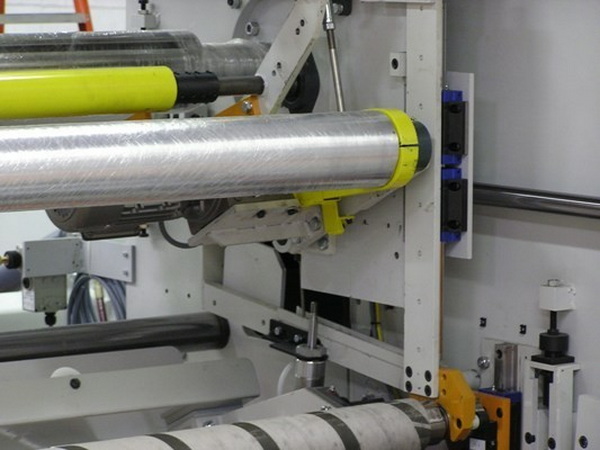

- Manufacturing: Monitoring tension in cables and wires during production processes.

- Aerospace: Measuring tensile forces in aircraft structures, ensuring safety and compliance with regulations.

- Construction: Ensuring structural integrity by measuring forces in bridges and buildings, particularly during load testing.

- Material Testing: Assessing the tensile strength and elasticity of materials in laboratories.

- Marine Applications: Used in mooring systems to monitor the tension on cables and chains.

- Automotive Testing: Evaluating vehicle components under stress conditions during development phases.

load cell function

5. Advantages of Using Tension Load Cells

The benefits of utilizing tension load cells include:

- Accuracy: High precision measurements ensure reliability in critical applications.

- Versatility: Suitable for various industries and applications, making them a go-to solution for many engineers.

- Real-Time Monitoring: Continuous measurement capabilities enhance operational safety by providing immediate feedback on load conditions.

- Durability: Many tension load cells are designed to withstand harsh environmental conditions, ensuring long-term reliability.

- Ease of Integration: They can be easily integrated into existing systems with minimal modifications.

6. Installation and Calibration

Proper installation and calibration are crucial for accurate measurements:

1. Mounting: Ensure that the load cell is aligned with the axis of the applied force. Misalignment can lead to inaccurate readings.

2. Calibration: Regular calibration against known weights helps maintain accuracy. Calibration should be performed under controlled conditions to ensure consistency.

6.1 Steps for Installation

1. Select an appropriate location that minimizes external disturbances such as vibrations or temperature fluctuations.

2. Use appropriate mounting hardware that matches the specifications provided by the manufacturer.

3. Connect the load cell to a data acquisition system or display unit according to wiring diagrams provided in the user manual.

6.2 Calibration Procedure

1. Use certified weights that are traceable to national standards.

2. Apply known weights incrementally while recording output signals until reaching maximum capacity.

3. Adjust calibration settings based on deviations from expected outputs.

7. Troubleshooting Common Issues

Despite their reliability, users may encounter issues with tension load cells over time:

7.1 Inaccurate Readings

- Check for proper alignment and mounting.

- Ensure that there are no external forces acting on the load cell other than the intended tensile force.

7.2 Signal Drift

- Signal drift can occur due to temperature changes or electrical noise; regular calibration can mitigate this issue.

7.3 Mechanical Damage

- Inspect for signs of wear or damage; replace any damaged components immediately to prevent inaccurate measurements.

8. Future Trends in Tension Load Cell Technology

As technology evolves, so do tension load cells:

- Wireless Technology: The integration of wireless communication allows for remote monitoring and data logging without cumbersome wiring.

- Smart Sensors: Incorporating IoT capabilities enables real-time data analysis and predictive maintenance alerts based on usage patterns.

- Enhanced Materials: Advances in materials science lead to more robust designs that can withstand extreme conditions without compromising accuracy.

Load Scale Technology

Conclusion

Tension load cells play a vital role in measuring tensile forces across various industries, providing accurate, reliable data essential for safety and performance monitoring. Understanding their functionality helps industries utilize these devices effectively, ensuring operational efficiency and safety.

As technology continues to advance, we can expect even greater accuracy and versatility from tension load cells, solidifying their place as indispensable tools in modern engineering and manufacturing processes.

FAQ

1. What is a tension load cell?

A tension load cell is a device that measures tensile forces by converting mechanical force into an electrical signal for precise monitoring.

2. How do tension load cells work?

They work by using strain gauges that change resistance when deformed under tensile force, generating a voltage signal proportional to the applied force.

3. What are common applications for tension load cells?

Common applications include crane scales, material testing machines, structural monitoring in construction, and aerospace engineering.

4. How often should tension load cells be calibrated?

It is recommended to calibrate tension load cells regularly, typically every six months or after significant use or environmental changes.

5. Can tension load cells measure both tension and compression?

Some models are designed specifically for one type but others can measure both tensile and compressive forces, providing greater versatility.
