Measuring string tension is crucial in various fields, from musical instruments to industrial applications involving wires, yarns, and cables[2]. String tension sensors provide a means to accurately quantify this tension, ensuring optimal performance and preventing potential failures[2][7]. This article explores the principles behind string tension sensors, their applications, and methods for measuring string tension effectively.
String tension refers to the pulling force exerted along the length of a string or similar object, such as a wire or cable. It is a critical parameter that affects the behavior and performance of the string in its specific application.

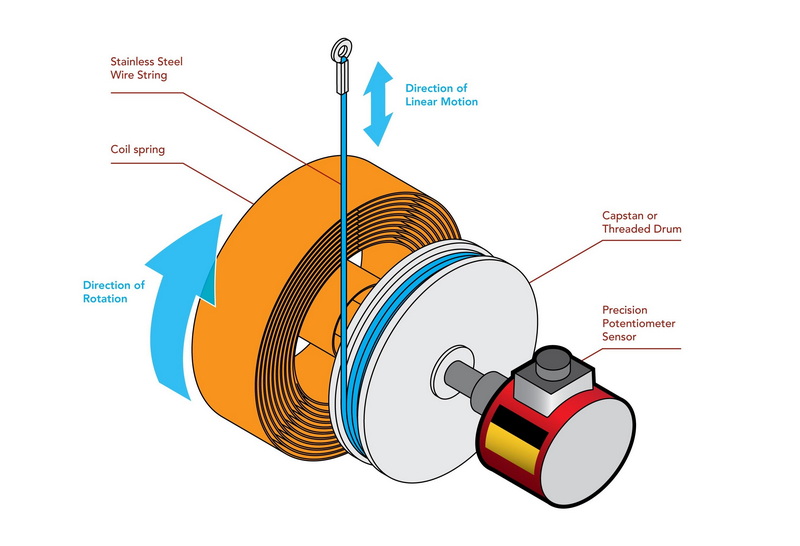

Several types of string tension sensors are available, each employing different technologies to measure tension[2][5][7].
1. Strain Gauge Sensors: These sensors utilize strain gauges, which are small resistors that change resistance when subjected to strain[2]. When a string's tension is applied to the sensor, it deforms slightly, causing the strain gauges to change resistance. This change is then measured and converted into a tension reading[2].
- Working Principle: Strain gauge sensors typically connect tension and compression strain gauges based on the bridge method[2]. The resistance value of the strain gauge changes proportionally to the tension when external pressure is applied[2].
2. Micro-displacement Sensors: These sensors measure the minute displacement of a leaf spring caused by the applied tension[2]. A differential transformer detects this displacement and converts it into a tension measurement[2].
- Working Principle: An external force applies a load, causing the leaf spring to displace. The tension is detected by a differential transformer[2]. The displacement of the leaf spring is minimal, around ±200μm[2].
3. Hall Effect Sensors: These sensors measure the magnetic field intensity produced by the tension in the string[5]. The sensor converts this magnetic field intensity into a voltage signal proportional to the tension[5].
- Working Principle: Based on Hall technology, these sensors measure magnetic field intensity and convert it into a voltage proportional to the yarn tension[5].
4. Optical Fiber Sensors: These sensors use changes in the properties of light passing through an optical fiber to measure tension[2][7]. Tension applied to the fiber alters the light's characteristics, which are then analyzed to determine the tension[2].
5. Capacitive Force Sensors: These sensors measure tension by using an array of capacitive force sensors[8].
String tension sensors find use in a wide array of applications[2][5][7]:
- Textile Industry: Monitoring yarn tension in spinning, weaving, and knitting processes to ensure consistent product quality[2][5].
- Wire and Cable Manufacturing: Measuring tension in wires and cables during production to meet specifications and prevent breakage[2].
- Musical Instruments: Ensuring proper string tension in guitars, pianos, and other instruments for optimal sound quality and playability.
- Optical Fiber Production: Measuring tension in optical fibers to maintain quality[2].
- Industrial Automation: Monitoring tension in various industrial processes involving belts, webs, and other tensioned materials[2].
- Aerospace: Monitoring cable tension in aircraft control systems.
- Robotics: Measuring tension in robotic manipulators and actuators.
Several factors can influence the accuracy and reliability of string tension measurements:
- Sensor Calibration: Regular calibration is crucial to ensure the sensor provides accurate readings.
- Environmental Conditions: Temperature, humidity, and vibration can affect sensor performance.
- String Material: Different materials have different elastic properties, which can affect tension measurements.
- Sensor Placement: Proper sensor placement is essential to accurately capture the tension in the string.
- String Vibration: Measuring the base-frequency of vibrating strings can help determine string tension[6].
- External Forces: Any external forces acting on the string can influence the tension readings.
Several methods can be employed to measure string tension, depending on the application and available equipment:
1. Direct Measurement with a Tension Sensor:
- Procedure: Install a string tension sensor in line with the string or cable[2][7]. Ensure the sensor is properly calibrated and positioned to accurately measure the tension. Read the tension value displayed by the sensor.
2. Indirect Measurement Using Frequency Analysis:
- One can measure the real physical tension (in kg) of a string via measuring the base-frequency of the vibrating strings[6].*
- Procedure: Excite the string and measure its fundamental frequency of vibration[6]. Use the following formula to calculate the tension:
T=4∗mu∗L⊃2;∗f0⊃2;
Where:
- T is the tension in the string.
- mu is the mass per unit length of the string.
- L is the length of the string.
- f0 is the fundamental frequency of vibration.

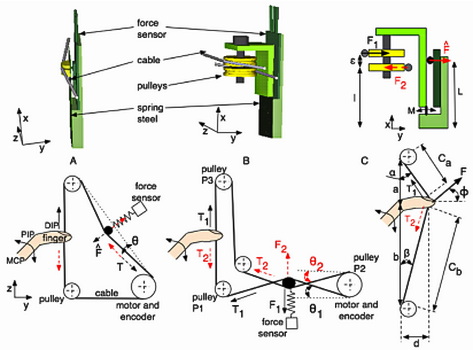

3. Deflection Method:
- Procedure: Apply a known force to the string and measure its deflection. Use the following formula to calculate the tension:
T=(F∗L)/(4∗d)[1]
Where:
- T is the tension in the string.
- F is the applied force.
- L is the length of the string.
- d is the displacement[1].
1. Preparation
- Select the appropriate string tension sensor: Choose a sensor that matches the tension range and material of the string you are measuring[2][7].
- Calibrate the sensor: Follow the manufacturer's instructions to calibrate the sensor before use.
- Gather necessary tools: Collect any tools needed for installation, such as wrenches, screwdrivers, and mounting brackets.
2. Installation
- Position the sensor: Place the sensor in line with the string or cable, ensuring it is properly aligned[2][7].
- Mount the sensor: Secure the sensor using appropriate mounting hardware, ensuring it is stable and does not introduce any external forces on the string.
- Connect the sensor: Connect the sensor to a display unit or data acquisition system, following the manufacturer's instructions.
3. Measurement
- Apply tension: Apply tension to the string or cable as required for the application.
- Read the tension value: Observe the tension value displayed on the sensor's display unit or data acquisition system.
- Record the data: Record the tension value and any relevant information, such as time, date, and environmental conditions.
4. Analysis
- Analyze the data: Review the recorded data to identify any trends, anomalies, or deviations from expected values.
- Adjust tension as needed: Based on the data analysis, adjust the tension in the string or cable as needed to optimize performance or prevent failures.
- Regular Monitoring: Implement a schedule for regular tension monitoring to ensure ongoing optimal performance.
- Regular Calibration: Calibrate sensors regularly to maintain accuracy.
- Proper Installation: Ensure correct sensor placement and mounting.
- Environmental Control: Minimize environmental factors affecting measurements.
- Material Considerations: Account for string material properties.
- Data Logging: Keep detailed records for analysis and adjustments.
- Sensor Maintenance: Perform regular maintenance to prolong sensor life.
- Inaccurate Readings: Check calibration, sensor placement, and environmental conditions.
- Unstable Readings: Ensure stable mounting and minimize external vibrations.
- Sensor Failure: Inspect for physical damage and replace if necessary.
- Connectivity Issues: Verify proper connections and signal integrity.
String tension sensors are indispensable tools for accurately measuring and monitoring tension in various applications[2][5][7]. By understanding the principles behind these sensors, their applications, and the methods for measuring string tension, you can ensure optimal performance, prevent failures, and maintain consistent quality[2]. Regular calibration, proper installation, and careful data analysis are essential for achieving reliable and accurate tension measurements.

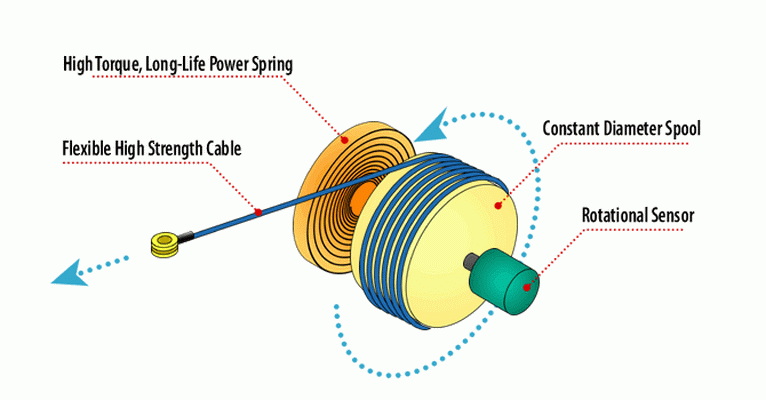

A string tension sensor is a device used to measure the tension or pulling force in a string, wire, cable, or other similar material[2][7]. These sensors are designed to provide accurate and reliable measurements, which are crucial in various applications ranging from musical instruments to industrial machinery[2][5][7].
String tension sensors operate based on different principles, including strain gauge technology, micro-displacement measurement, Hall effect, and optical fiber sensing[2][5]. Strain gauge sensors, for example, measure the change in resistance of a strain gauge when the string tension causes it to deform[2]. Micro-displacement sensors measure the displacement of a spring or other component caused by the tension[2]. Hall effect sensors measure changes in a magnetic field, and optical fiber sensors detect changes in light properties due to tension[5].
String tension sensors are used in a wide range of applications, including[2][5][7]:
- Textile Industry: To monitor yarn tension during spinning, weaving, and knitting[2][5].
- Wire and Cable Manufacturing: To ensure proper tension during production[2].
- Musical Instruments: To optimize sound quality and playability in guitars, pianos, and other instruments.
- Industrial Automation: To monitor tension in belts, webs, and other materials in industrial processes[2].
- Aerospace: To monitor cable tension in aircraft control systems.
Selecting the appropriate string tension sensor depends on several factors:
- Tension Range: Ensure the sensor's measuring range matches the expected tension values.
- Material Compatibility: Choose a sensor compatible with the material of the string or cable.
- Accuracy Requirements: Consider the required accuracy and precision for your application.
- Environmental Conditions: Select a sensor that can withstand the operating environment (temperature, humidity, etc.).
- Installation Constraints: Consider any space limitations or mounting requirements[7].
The calibration frequency depends on the sensor type, application, and operating environment. Generally, it is recommended to calibrate string tension sensors at least every six months to ensure accuracy[2]. High-precision applications may require more frequent calibration[2]. Always follow the manufacturer's guidelines for calibration procedures and intervals.
