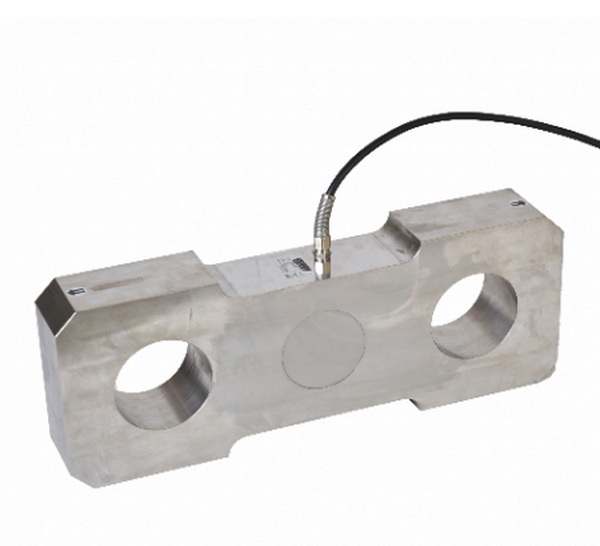

Calibrating a tension link load cell is essential for ensuring accurate measurements in various applications, such as weighing and force measurement. This article will guide you through the proper calibration process, focusing on low profile load cells, which are known for their high accuracy and versatility.

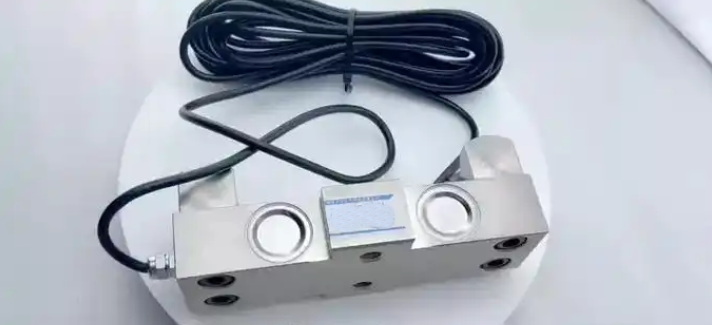

Load cells are transducers that convert a force into an electrical signal. They are widely used in industrial applications for measuring weight or force. Among the various types of load cells, low profile load cells stand out due to their compact design and high precision.
- Compact Design: Their low height allows for installation in tight spaces.
- High Accuracy: They provide precise measurements with minimal loading errors.
- Versatility: Suitable for both tension and compression applications.
- Durability: Often constructed from stainless steel, making them resistant to corrosion.
Calibration is the process of adjusting the load cell output to match a known standard. Proper calibration ensures that the load cell provides accurate readings, which is crucial for safety and efficiency in operations.
Before starting the calibration process, ensure you have the following:
- Tension Link Load Cell: The load cell you intend to calibrate.
- Calibration Weights: Known weights that will be used during the calibration process.
- Digital Indicator: To read the output from the load cell.
- Connecting Cables: To connect the load cell to the digital indicator.
- Ensure that the calibration area is free from vibrations and external forces that could affect measurements.

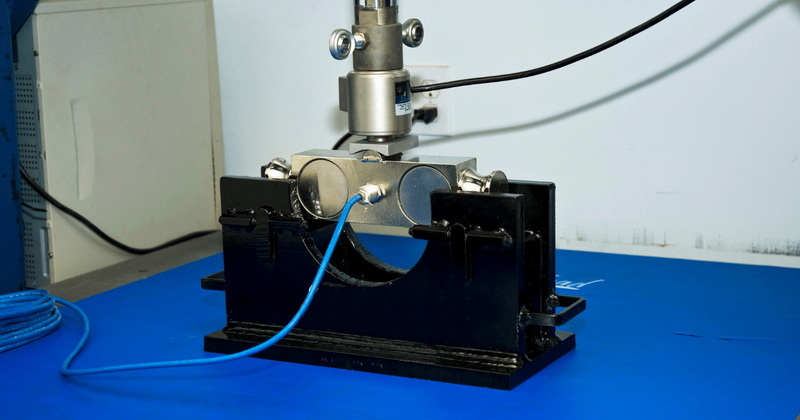

- Position the load cell in its intended operational setup, as this will provide more accurate calibration results.
- Connect the load cell to the digital indicator using the appropriate cables, ensuring correct color coding and connections as per manufacturer instructions.
- Before applying any weights, zero the digital indicator. This step ensures that any reading starts from a known baseline.
- Begin applying known weights incrementally (e.g., 20%, 40%, 60%, 80%, and 100% of the load cell's capacity).
- After each weight is added, record the output reading on the digital indicator.
- Repeat this process for both increasing and decreasing loads to check for repeatability and linearity.
- Compare the recorded readings with the actual weights applied. Calculate any discrepancies to determine if adjustments are necessary.
- If discrepancies exceed acceptable limits, adjustments may need to be made either mechanically or through software settings in some digital indicators.
- Keep a detailed record of all readings, adjustments made, and any observations noted during calibration. This documentation is crucial for future reference and compliance with quality standards.
When calibrating tension link load cells, consider these factors:
- Pin Size Compatibility: Ensure that pin sizes used during calibration match those used in actual applications to avoid measurement errors[2].
- Environmental Conditions: Temperature and humidity can affect readings; thus, calibrations should ideally be performed under controlled conditions[4].
- Regular Calibration Schedule: Establish a routine schedule for recalibrating your load cells based on usage frequency and application criticality[7].
Properly calibrating a tension link load cell is vital for maintaining measurement accuracy in various applications. By following systematic steps and considering critical factors such as pin size compatibility and environmental conditions, you can ensure reliable performance from your low profile load cells.
A tension link load cell is a type of transducer designed specifically to measure tensile forces or loads accurately.
Calibration ensures that the readings provided by the low profile load cell are accurate and reliable, which is essential for safety and operational efficiency.
Calibration frequency depends on usage; however, it is generally recommended to calibrate at least once a year or after significant changes in operational conditions.
Yes, calibration can often be performed in-house if proper equipment and procedures are followed; however, professional calibration services may provide greater assurance of accuracy.
Factors include environmental conditions (temperature, humidity), pin size compatibility, mechanical wear over time, and incorrect installation setups.
