Hook load tension sensors have revolutionized safety protocols in heavy-load industries by providing precise, real-time measurements of force and tension. These devices are indispensable in applications such as offshore drilling, marine mooring, and construction, where even minor miscalculations can lead to catastrophic failures. This article explores how hook load tension sensors enhance operational safety, reduce risks, and optimize performance across critical industries.

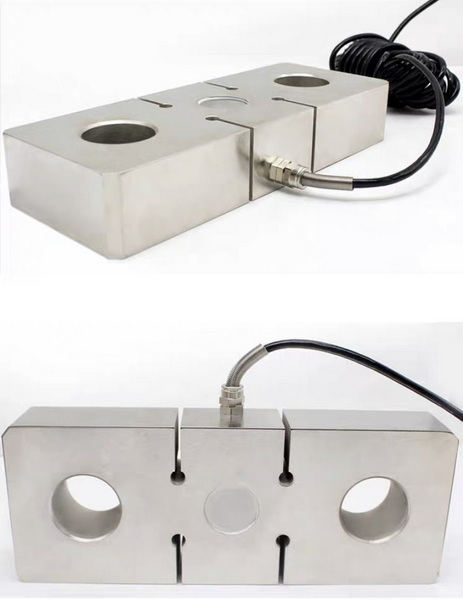

Hook load tension sensors measure the force exerted on hooks, cables, or rigging systems using advanced strain gauge or piezoelectric technology. These sensors convert mechanical force into electrical signals, which are then analyzed by monitoring systems to ensure loads remain within predefined safety thresholds.
- Load Cells: Detect force variations with high accuracy.
- Signal Processors: Translate raw data into actionable insights.
- Alert Systems: Trigger alarms when loads approach dangerous levels.
In oil and gas drilling, hook load tension sensors monitor the weight suspended from the derrick's hook. Overloading the hook can destabilize the rig, damage the drill string, or cause blowouts. By providing real-time feedback, these sensors enable operators to:
- Adjust the weight on bit (WOB) to optimize drilling efficiency.
- Prevent differential sticking caused by excessive downhole pressure.
- Avoid sheave or wire rope failures due to sudden load spikes.
Modern drilling rigs integrate hook load tension sensors with automated control systems. For example, if a sensor detects uneven load distribution during tripping operations, it can automatically adjust brake systems or derrick positioning to maintain balance.
In marine environments, hook load tension sensors monitor mooring line tensions to prevent vessel drift or anchor dragging. They are particularly critical for:
- Floating production storage and offloading (FPSO) units.
- Offshore wind turbine installation vessels.
- Cargo ships during heavy weather docking.
Automated tension monitoring reduces reliance on manual checks, minimizing risks from fatigue or miscalculations. For instance, sensors can detect gradual tension loss in a corroded mooring line long before it becomes visible to crew members.
Modern sensors use AI-driven algorithms to predict equipment wear. By analyzing historical load data, they identify patterns indicating potential failures, such as:
- Fatigue cracks in crane hooks.
- Degradation of synthetic mooring ropes.
- Imbalanced load distribution on lifting slings.
Wireless hook load tension sensors transmit data to centralized dashboards, enabling remote monitoring across multiple sites. This is especially valuable for:
- Multi-vessel offshore operations.
- Automated reporting for regulatory compliance.
- Real-time collaboration between on-site and off-site teams.
Hook load tension sensors must comply with rigorous standards to ensure reliability:
- API Specification 7K for drilling equipment.
- ISO 17025 for calibration accuracy.
- DNV GL-RP-0493 for marine applications.
Regular calibration (every 6–12 months) is mandatory to maintain sensor accuracy. Third-party certification bodies often require redundancy systems, such as dual sensors on critical load paths.
A 2023 study by the International Association of Drilling Contractors (IADC) analyzed 12 offshore rigs equipped with hook load tension sensors over five years. Key findings included:
- 47% reduction in equipment-related accidents.
- 22% improvement in drilling speed due to optimized WOB adjustments.
- 90% fewer unplanned downtime events from predictive maintenance alerts.
Sensors face challenges like saltwater corrosion, extreme temperatures, and vibration. Manufacturers address these with:
- Stainless steel or titanium housings.
- IP68/IP69K waterproof ratings.
- Vibration-dampening mounts.
Misinterpreting sensor data remains a risk. Leading companies now implement:
- VR-based training simulations for operators.
- Automated decision-support systems with pre-approved response protocols.
Hook load tension sensors are transformative safety tools that mitigate risks in high-stakes industries. By enabling real-time load monitoring, predictive maintenance, and compliance with safety standards, these devices prevent accidents, reduce operational costs, and extend equipment lifespans. As sensor technology evolves with AI and IoT integration, their role in fostering safer workplaces will only expand.
High-quality sensors last 5–8 years with proper maintenance. Harsh environments may reduce this to 3–5 years.
Yes, most sensors are designed for modular installation. Adapters are available for legacy drilling rigs or cranes.
Advanced models sample data at 1,000 Hz or higher, capturing rapid changes to trigger instant safety responses.
Prices range from $2,500 for basic models to $15,000+ for ATEX-certified, wireless-enabled units.
Most manufacturers provide proprietary software, though some offer API access for integration with third-party platforms.
