Tension sensors are critical devices used across various industries to measure the tension or pulling force exerted on materials such as wires, cables, and sheets. Understanding how these sensors operate is essential for ensuring accurate control in manufacturing and industrial processes. This article will delve into the working principles, types, applications, benefits, challenges, and future trends of tension sensors while providing visual aids to enhance comprehension.
Tension sensors are designed to monitor the force applied to a material, ensuring that production processes maintain optimal tension levels. They play a vital role in industries like textiles, automotive, aerospace, and packaging, where precise tension control is crucial for product quality and safety.
- Quality Control: Ensures materials are handled correctly during manufacturing.
- Safety: Prevents accidents caused by excessive tension in cables or belts.
- Efficiency: Optimizes production processes by maintaining consistent tension levels.
Tension sensors operate based on several principles, primarily utilizing strain gauges or load cells to measure tension.
At the heart of many tension sensors is the strain gauge, which changes its electrical resistance when stretched or compressed. This principle can be described as follows:
- Deformation: When a material applies tension to the sensor, it causes a slight deformation in a metal element within the sensor.
- Resistance Change: This deformation alters the resistance of attached strain gauges.
- Signal Conversion: The change in resistance is converted into an electrical signal that corresponds to the applied tension.
The process can be illustrated as follows:
Tension Applied → Metal Element Deforms → Strain Gauge Resistance Changes → Electrical Signal Generated
Load cells are another common type of technology used in tension sensors. They function similarly to strain gauges but can measure larger forces and are often used in industrial applications.
- Mechanical Structure: Load cells typically consist of a metal body that deforms under load.
- Signal Processing: The deformation is converted into a measurable electrical signal using various techniques like Wheatstone bridges.
Tension sensors can be categorized based on their design and application:
| Type | Description | Applications |
|---|---|---|
| Strain Gauge | Utilizes strain gauges for precise measurement of small forces. | Textile machinery, automotive systems |
| Load Cell | Measures larger forces with high accuracy using mechanical deformation. | Weighing scales, industrial automation |

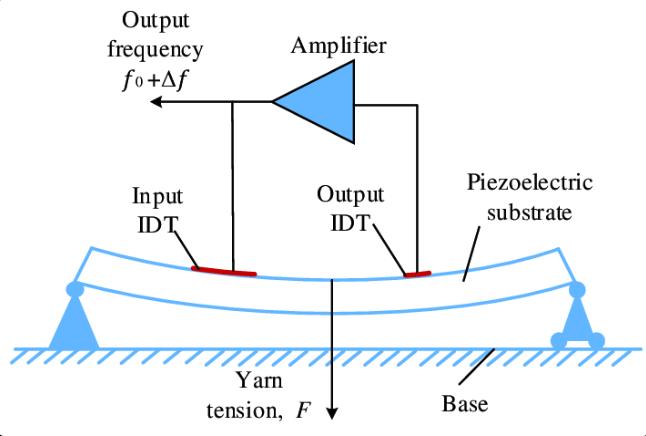

| Piezoelectric | Generates an electrical charge in response to mechanical stress. | Dynamic force measurements |

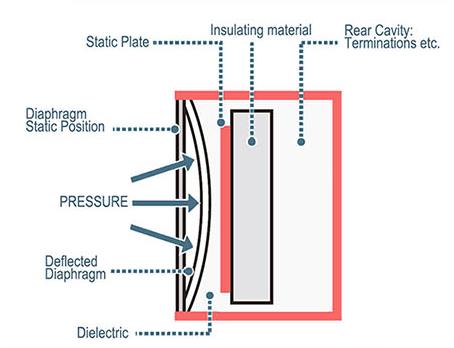

| Capacitive | Measures changes in capacitance due to material deformation. | Non-contact applications |
Tension sensors are employed in various sectors due to their versatility and precision:
In textile manufacturing, maintaining proper tension in fibers and yarns is crucial during processes like spinning and weaving. Tension sensors help prevent defects such as wrinkles or tears by providing real-time feedback about the tension levels throughout the production line. For instance, if a yarn is too loose or too tight, it can lead to product defects that may require costly rework or scrap.
Tension sensors monitor timing belts and drive belts in vehicles, ensuring optimal performance and preventing slippage or wear. In this context, they contribute significantly to the reliability and safety of automotive systems. For example, if a timing belt experiences excessive tension, it could lead to engine failure; thus, continuous monitoring helps avoid such catastrophic failures.
In packaging and printing industries, tension sensors regulate the tension of paper or film during processing, ensuring accurate color registration and preventing jams that could disrupt production lines. Proper tension control is essential for maintaining print quality and reducing waste.
In aerospace engineering, tension sensors are used to monitor cable tensions in aircraft systems, contributing to safety and performance. They ensure that critical components operate within specified limits under varying loads during flight conditions.
Implementing tension sensors offers numerous advantages:
- High Accuracy: Provides reliable measurements critical for quality control.
- Real-Time Monitoring: Enables immediate adjustments to maintain optimal tension levels.
- Enhanced Safety: Reduces risks associated with improper tension handling.
- Improved Efficiency: Streamlines production processes by minimizing downtime caused by tension-related issues.
- Data Collection: Facilitates data collection for analysis and improvement of operational processes.
While tension sensors provide numerous benefits, there are challenges associated with their implementation:
Factors such as temperature fluctuations, humidity, and electromagnetic interference can affect sensor performance. It is essential to select sensors designed for specific environmental conditions to ensure accuracy.
Regular calibration is necessary for maintaining accuracy over time. This process can be labor-intensive but is crucial for ensuring reliable measurements.
Installing tension sensors may require specialized knowledge and skills, particularly when integrating them into existing systems or machinery.
As technology advances, several trends are emerging in the field of tension measurement:
The integration of wireless technology allows for remote monitoring of tension levels without physical connections that could hinder movement or flexibility in machinery.
The Internet of Things (IoT) enables real-time data collection and analysis from multiple sensors across a production line, leading to improved decision-making and predictive maintenance strategies.
Smart sensors equipped with advanced algorithms can analyze data on-site and provide insights into operational efficiency, helping manufacturers optimize their processes further.
To illustrate the practical applications of tension sensors further, consider these case studies:
A leading textile manufacturer implemented strain gauge-based tension sensors on their weaving machines to monitor yarn tensions continuously. By doing so, they reduced fabric defects by 30% within six months due to improved quality control measures enabled by real-time monitoring.
An automotive company integrated load cells into their assembly line for monitoring belt tensions during engine assembly. This proactive approach led to a 15% reduction in warranty claims related to engine performance issues attributed to improper belt tensions.
In an aerospace application, engineers used piezoelectric sensors to monitor cable tensions on an aircraft's control surfaces during flight tests. The data collected allowed them to make necessary adjustments before finalizing the design, significantly enhancing safety margins.
Tension sensors play a vital role in modern manufacturing and industrial processes by providing accurate measurements of pulling forces on materials. Through technologies such as strain gauges and load cells, these sensors ensure that products meet quality standards while enhancing safety and efficiency across various applications.
A tension sensor is a device used to measure the pulling force exerted on materials such as wires or cables.
A strain gauge works by changing its electrical resistance when it is stretched or compressed due to applied force.
Industries such as textiles, automotive, aerospace, packaging, and manufacturing utilize tension sensors for quality control and safety.
Common types include strain gauge sensors, load cells, piezoelectric sensors, and capacitive sensors.
Accurate tension measurement is crucial for maintaining product quality, ensuring safety, and optimizing production efficiency.
