In the fast-paced world of manufacturing and converting processes, maintaining optimal web tension is crucial for ensuring product quality and operational efficiency. The Anyload tension load cell plays a significant role in achieving this goal. This article explores how these load cells enhance efficiency in web handling, detailing their functionality, benefits, applications, and the technology behind them.
Web handling refers to the process of managing continuous materials, such as paper, film, or fabric, as they are unwound, processed, and rewound. Proper tension control is essential to prevent issues such as wrinkling, tearing, or uneven winding. The Anyload tension load cell provides precise measurement of web tension, allowing for real-time adjustments that enhance overall efficiency.

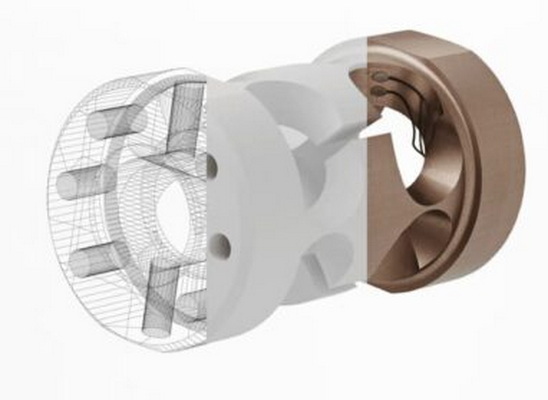

Anyload tension load cells utilize advanced technology to measure the force exerted by a web. They typically consist of:
- Strain Gauges: These are sensitive devices that change resistance when stretched or compressed. They convert mechanical strain into electrical signals.
- Wheatstone Bridge Circuit: This configuration amplifies the minute changes in resistance detected by the strain gauges, enabling accurate tension measurements.
- Signal Processing: The electrical signals generated are processed and displayed in a user-friendly format, allowing operators to monitor web tension continuously.

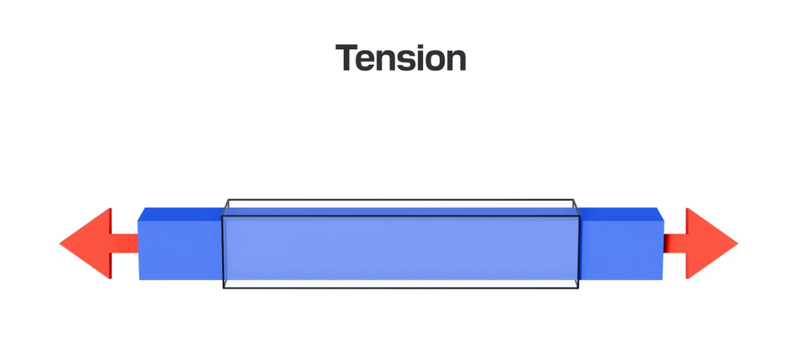

When a web passes over a roller equipped with an Anyload load cell, the tension in the web exerts a force on the load cell. This force causes a deflection in the load cell's sensing element. The strain gauges detect this deflection and convert it into an electrical signal that corresponds to the amount of tension in the web.
The integration of Anyload tension load cells into web handling systems offers numerous advantages:
- Precision Measurement: These load cells provide highly accurate readings of web tension, which is critical for maintaining product quality.
- Real-Time Monitoring: Continuous monitoring allows for immediate adjustments to be made, reducing waste and downtime.
- Enhanced Control Systems: When integrated into closed-loop control systems, Anyload load cells can automatically adjust braking or motor settings based on real-time tension data.
- Reduced Material Waste: By maintaining optimal tension levels, manufacturers can minimize defects such as tears or misalignments that lead to material waste.
- Increased Production Efficiency: With consistent web handling and fewer interruptions due to tension-related issues, overall production rates can improve significantly.
Anyload tension load cells are versatile and can be utilized across various industries:
- Printing: In printing processes, maintaining consistent web tension is vital for achieving high-quality prints without defects.
- Packaging: Load cells ensure that packaging materials are applied with the correct tension for secure sealing.
- Textiles: In textile manufacturing, proper tension prevents fabric distortion during processing.
- Converting Industries: They are essential in converting processes where webs are cut or shaped into final products.
One of the key advantages of using Anyload tension load cells is their compatibility with automated systems. By integrating these load cells into automated control systems:
1. Feedback Loop Creation: The system continuously compares actual tension to desired settings.
2. Automatic Adjustments: If deviations occur, the system automatically adjusts brakes or motors to maintain optimal tension levels without manual intervention.
3. Data Logging and Analysis: Many systems allow for data logging over time, enabling operators to analyze trends and make informed decisions about process improvements.
The implementation of Anyload tension load cells significantly enhances efficiency in web handling processes by providing accurate and real-time measurements of web tension. Their ability to integrate with automated control systems ensures that manufacturers can maintain optimal conditions throughout production. As industries continue to demand higher quality and efficiency, Anyload load cells will remain a critical component in achieving these goals.

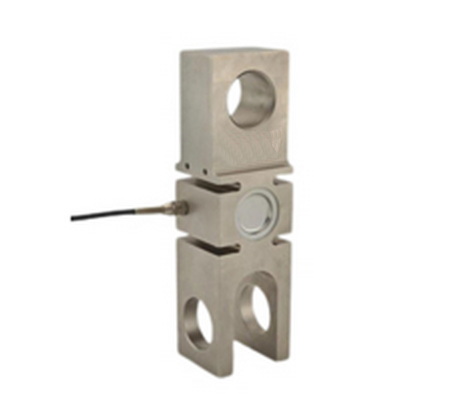

An Anyload Tension Load Cell is a device designed to measure the force exerted by a web material during processing. It converts mechanical strain into an electrical signal for precise measurement.
By providing real-time monitoring and automatic adjustments based on actual web tension data, Anyload Load Cells help reduce waste and downtime while improving overall production rates.
They are commonly used in printing, packaging, textiles, and various converting industries where maintaining consistent web tension is critical.
Anyload Load Cells utilize strain gauges and Wheatstone bridge circuits to accurately measure mechanical strain and convert it into electrical signals.
Yes, they can be integrated into automated control systems that allow for continuous monitoring and automatic adjustments based on real-time data.
