Selecting the right media feed tension sensor is crucial for ensuring the efficiency and reliability of various applications, from manufacturing to aerospace. This comprehensive guide will explore the key factors to consider when choosing a media feed tension sensor, providing insights into different types of sensors, their applications, and tips for making an informed decision.
What is a Media Feed Tension Sensor?
A media feed tension sensor is a device designed to measure the tension in materials such as wires, cables, or webs as they move through a production line or process. These sensors are essential for maintaining optimal tension levels, which can prevent material breakage and ensure consistent quality in products.
Applications of Media Feed Tension Sensors
Media feed tension sensors are used in various industries, including:
- Manufacturing: Ensuring consistent tension in materials during production processes.
- Textiles: Monitoring yarn or fabric tension to maintain quality and prevent defects.
- Aerospace: Measuring tension in cables and wires for safety and performance.
- Construction: Ensuring proper tension in cables used in structures like bridges.
The measurement range of a sensor is critical as it determines the maximum and minimum tension levels that can be accurately measured. When selecting a sensor, ensure that its range exceeds your application's maximum expected tension by at least 10% to 30% for optimal performance[9].
Different types of media feed tension sensors include:

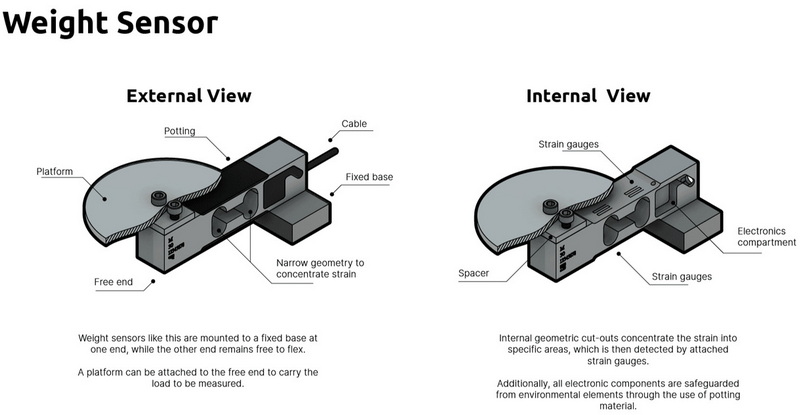

- Strain Gauge Sensors: These sensors measure the deformation of a material under tension. They are widely used due to their accuracy and reliability.
- Load Cells: Load cells convert force into an electrical signal, making them suitable for various applications where precise measurements are required.
- Capacitive Sensors: These sensors measure changes in capacitance caused by material movement and are ideal for non-contact applications.
| Sensor Type | Advantages | Disadvantages |
|---|---|---|
| Strain Gauge | High accuracy, reliable | Requires calibration |
| Load Cell | Versatile, good for high loads | Can be bulky |
| Capacitive | Non-contact measurement | Limited range |
Accuracy is paramount when selecting a media feed tension sensor. Different applications may require varying levels of precision. For example, aerospace applications may demand sensors with an accuracy of ±0.1%, while general manufacturing might suffice with ±1% accuracy[10].
Consider the environmental factors where the sensor will be installed:
- Temperature: Ensure the sensor can operate within the temperature range of your application.
- Humidity: High humidity environments may require sensors with higher IP ratings to prevent damage.
- Vibration and Shock: If the sensor will be subjected to vibrations or shocks, choose one designed to withstand such conditions[4].
The output signal type should align with your system requirements. Common output types include:
- Analog Signals (mV/V): Suitable for many applications but may require signal conditioning.
- Digital Signals (I2C, RS232): Provide more accurate readings and easier integration with modern systems[8].
Evaluate how easy it is to install the sensor in your existing setup. Some sensors offer flexible mounting options while others may require specific configurations or additional components.
When searching for the best media feed tension sensor, consider these top models based on industry reviews:
- Measurement Range: 0-1000 kN
- Accuracy: ±0.5% FSO
- Features: Durable design, easy installation
- Measurement Range: Up to 300 kg
- Resolution: 0.1% or better
- Specialty: Compact designs suitable for tight spaces
- Measurement Range: 0 - 2000 N
- Accuracy: ±0.5% nominal load
- Durability: Stainless steel housing with IP67 rating
Choosing the right media feed tension sensor involves careful consideration of various factors including measurement range, sensor type, accuracy requirements, environmental conditions, output signal type, and installation needs. By understanding these aspects and evaluating your specific application requirements, you can select a sensor that enhances operational efficiency and product quality.
Most media feed tension sensors have a lifespan ranging from 5 to 10 years depending on usage conditions and maintenance practices.
Calibration frequency depends on usage; however, it is generally recommended every 6 to 12 months or after significant changes in operating conditions.
While some sensors are versatile enough for various applications, it's best to use application-specific sensors for optimal performance.
Regular inspections for wear and tear, cleaning of sensing elements, and periodic calibration are essential maintenance practices.
The choice of output signal type depends on your system's compatibility; consult your system specifications or a technical expert if unsure.
