Installing a column type tension and compression load cell is a critical process that ensures accurate measurements in various applications, including industrial weighing systems, force measurement, and structural monitoring. This guide will provide a comprehensive overview of the installation process, including necessary preparations, steps, and best practices.

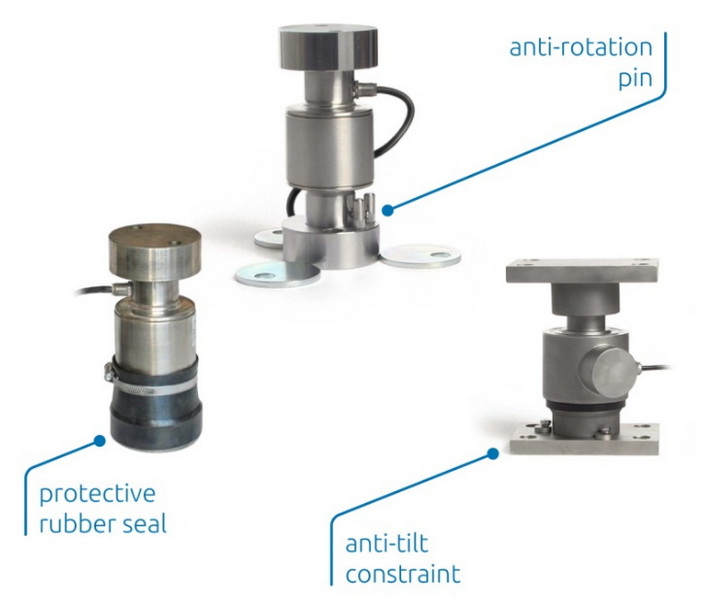

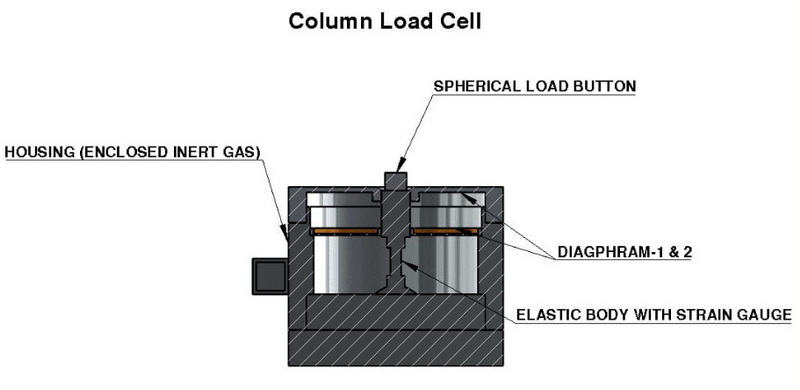

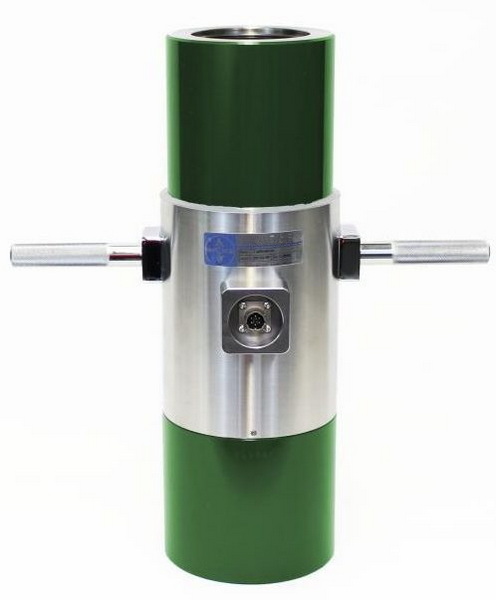

Column type load cells are designed to measure both tension and compression forces. They are commonly used in applications where accurate load measurement is essential, such as in scales for trucks, hoppers, and tanks. These load cells convert mechanical force into an electrical signal, allowing for precise weight measurements.
Proper installation is crucial for ensuring that the load cell functions accurately and reliably. Misalignment or improper mounting can lead to inaccurate readings and potential damage to the load cell. The following sections outline the key considerations and steps involved in installing a column type tension and compression load cell.
Before beginning the installation process, it is essential to plan adequately. Consider the following factors:
- Attachment Method: Decide whether to use threaded connections, surface mounting, or rod-end bearings.
- Mounting Hardware: Choose appropriate bolts, nuts, and washers based on the load cell specifications.
- Load Direction: Identify the expected load direction to ensure proper alignment during installation.
- Environmental Factors: Assess conditions such as temperature, moisture, and vibration that may affect the load cell's performance.
Gather the following tools and materials before starting the installation:
- Level
- Set of screwdrivers (flat and Phillips)
- Wrenches for bolts
- Torque wrench
- Clean cloths for surface preparation
- Mounting hardware (bolts, nuts)
- Load cell (column type tension and compression)
The mounting surface must be clean, flat, and level. Follow these steps:
- Clean the surface thoroughly to remove any dirt or debris.
- Ensure that the surface is flat within 0.1 mm tolerance.
- Mark the positions for mounting holes based on the load cell dimensions.
Once the surface is prepared:
- Place the load cell in its designated location.
- Ensure that it is aligned with the anticipated load path.
Secure the load cell using appropriate hardware:
- Use bolts or fasteners to secure it in place.
- Follow manufacturer specifications for torque settings when tightening bolts to avoid damaging the load cell.
Connect the load cell to signal conditioning equipment or display units:
- Ensure that wires are properly secured to prevent damage from movement or abrasion.
- Use strain reliefs where necessary to protect electrical connections.
After installation, calibrate the load cell:
- Apply known weights gradually to verify readings.
- Adjust outputs as necessary based on calibration results.
Conduct tests by applying known loads:
- Verify that readings are accurate.
- Make adjustments if discrepancies are found.
To ensure optimal performance of your column type tension and compression load cell, consider these best practices:
- Alignment: Ensure that the load cell is perfectly aligned with the loading axis to avoid side loads that can affect accuracy.
- Avoid Side Loads: Install the load cell in such a way that side loads do not exceed 5% of its rated capacity.
- Use Proper Hardware: Always use hardware recommended by the manufacturer to ensure compatibility and reliability.
- Regular Maintenance: Schedule regular checks for calibration and maintenance to extend the lifespan of your load cell.
If you encounter issues with your load cell readings:
- Check for misalignment or improper mounting.
- Inspect wiring connections for damage or wear.
- Recalibrate if readings appear erratic or inaccurate.
Installing a column type tension and compression load cell requires careful planning, precise execution, and adherence to best practices. By following this guide, you can ensure accurate measurements in your applications while prolonging the life of your equipment. Regular maintenance and calibration will further enhance performance reliability over time.
A column type tension and compression load cell is a device used to measure both pulling (tension) and pushing (compression) forces accurately by converting mechanical force into an electrical signal.
Calibration frequency depends on usage but typically should be done at least once a year or whenever significant changes occur in your application environment or after maintenance work.
Yes, column type load cells are designed specifically for measuring both tension and compression forces effectively in various applications.
Check for misalignment issues, inspect wiring connections for damage, recalibrate if necessary, and ensure there are no side loads affecting performance.
Yes, consider factors such as temperature fluctuations, moisture levels, vibration exposure, and potential chemical exposure that could affect performance.
