Digital tension load cells are essential instruments in various industries, providing accurate measurements of tension forces in lifting, weighing, and monitoring applications. This guide will walk you through the installation and usage of a 25 ton digital tension load cell, ensuring you maximize its potential while adhering to safety standards.
A 25 ton digital tension load cell is designed to measure the force exerted on it when a load is applied. These load cells are commonly used in applications such as:
- Heavy lifting and rigging
- Overhead weighing
- Testing and monitoring of loads in various industrial settings

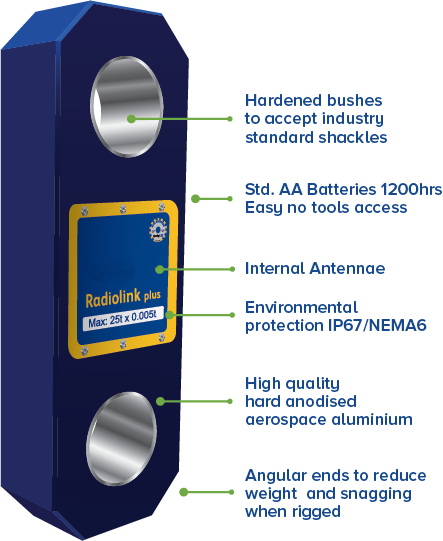

The Straightpoint Radiolink Plus is one of the most popular models available, known for its accuracy, wireless capabilities, and robust design suitable for harsh environments.

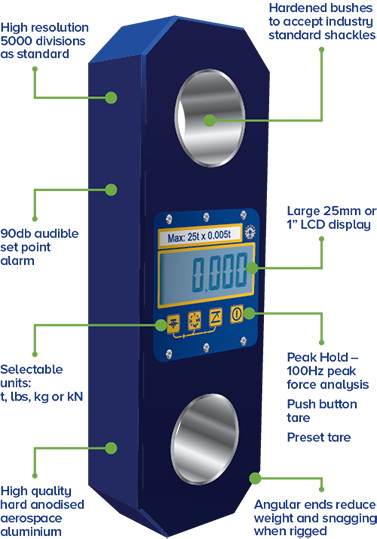

Before diving into the installation process, let's familiarize ourselves with the components of a typical 25 ton digital tension load cell:
- Load Cell Body: The main structure that houses the sensors.
- Electrical Connector: For connecting to power and data output.
- Display Unit: Shows real-time load measurements (if integrated).
- Mounting Accessories: Shackles, pins, or other hardware for secure installation.
Ensure that your work area is clean and free of any hazards. Gather all necessary tools and equipment, including:
- Wrenches
- Torque wrench
- Level
- Safety gear (gloves, goggles)
The mounting surface must be solid and level. Follow these guidelines:
- Ensure that the surface can support the maximum load capacity.
- Clean the area where the load cell will be mounted to prevent debris from affecting measurements.
1. Place the load cell between the force application point (e.g., a hook or lifting device) and the ground or base structure.
2. Ensure that the load cell is aligned vertically to avoid side loads, which can affect accuracy.
1. Use appropriate shackles or pins to connect the load cell to both the lifting device and the base.
2. Tighten all connections using a torque wrench according to specifications provided by the manufacturer.
1. Connect the load cell's electrical connector to your display unit or data acquisition system.
2. Ensure all connections are secure and protected from moisture or damage.
Calibration is crucial for accurate measurements. Follow these steps:
1. Apply a known weight to the load cell.
2. Adjust the calibration settings on your display unit according to manufacturer instructions.
3. Remove the weight and ensure that the display returns to zero.
Once installed and calibrated, you can begin using your digital tension load cell effectively.
1. Power On: Turn on your display unit or data logger.
2. Select Units: Choose your preferred measurement units (tons, pounds, kilograms).
3. Tare Function: If necessary, use the tare function to zero out any residual weight before applying a new load.
4. Monitor Loads: Observe real-time readings on your display unit during operation.
When working with heavy loads:
- Always wear appropriate personal protective equipment (PPE).
- Regularly inspect all connections and equipment for wear or damage.
- Do not exceed the rated capacity of your load cell.
Installing and using a 25 ton digital tension load cell can significantly enhance safety and accuracy in various applications. By following proper installation procedures and maintaining regular checks, you can ensure reliable performance over time.
A digital tension load cell is a sensor that measures pulling force or weight by converting mechanical force into an electrical signal for accurate readings.
To calibrate, apply a known weight to the load cell, adjust settings on your display unit as per manufacturer guidelines, then remove the weight to check if it returns to zero.
Yes, many models are designed for outdoor use; however, ensure they are protected from extreme weather conditions unless rated for such environments.
Regular inspections should be conducted before each use; however, more thorough checks should be performed monthly or quarterly based on usage frequency.
Check for loose connections, ensure proper alignment during installation, and verify that there are no external forces affecting measurements (like vibrations).
