Inline tension sensors are indispensable tools for precise force measurement in industrial automation, robotics, and material handling systems. This comprehensive guide details mechanical/electrical integration techniques, calibration methodologies, and operational strategies while emphasizing critical engineering considerations.
Inline tension sensors translate axial mechanical forces into measurable electrical signals through strain gauge technology. These devices typically feature stainless steel housings with IP65-68 environmental protection ratings, accommodating force ranges from 10N to 50kN.
The sensor's strain gauges form a Wheatstone bridge circuit that generates voltage variations proportional to applied tension. For example, the X-Series sensors exhibit <0.5% nonlinearity across their operational range, with temperature compensation ensuring stability within ±0.02%/°C.
Critical components include:

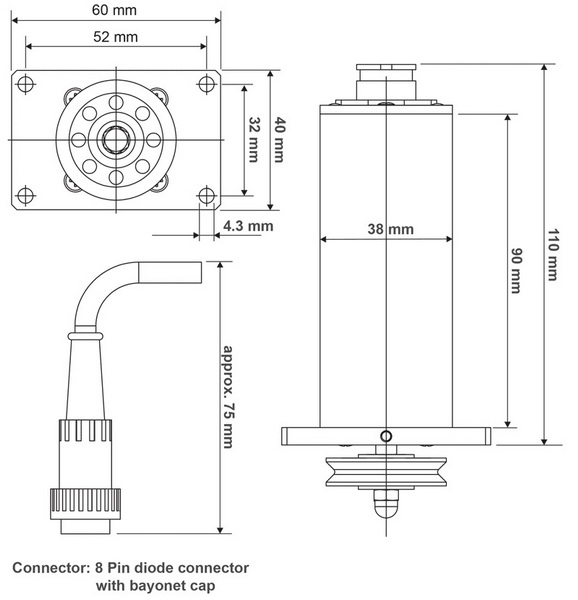

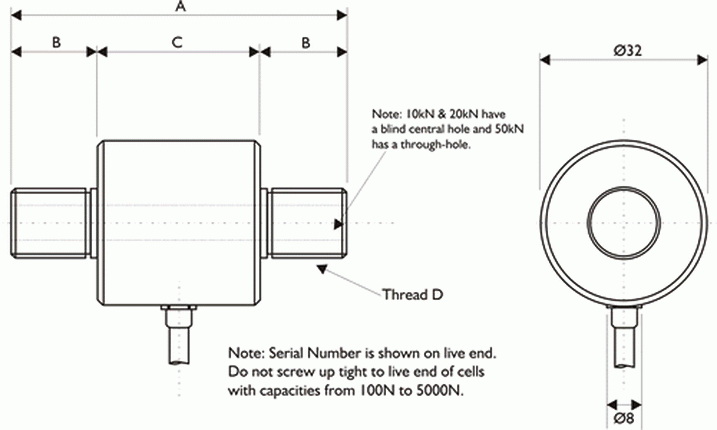

- Threaded Load Interfaces: M5 to M12 options for direct force transmission
- Overload Protection: Mechanical stops prevent damage beyond 150% rated capacity
- Alignment Features: Precision-machined surfaces minimize off-axis loading errors
Conduct these verifications:
- Force Range: Select sensors with 120-150% of maximum operational load
Environmental Conditions:
- Temperature: -40°C to +120°C for industrial-grade units
- Humidity: <95% non-condensing
- Signal Interface: Match analog outputs (0-10V, 4-20mA) or digital protocols (RS485, CAN bus)
Step 1: Mounting Alignment
- Use laser alignment tools to achieve <0.3° angular deviation
- Apply high-temperature anti-seize compound (e.g., Loctite 771-64) on threads
- Torque fasteners to manufacturer specifications (typically 20-35 N·m for M6 threads)
Step 2: Load Path Optimization
Ensure pure axial loading through:
- Flexible couplings for misalignment compensation
- Proper bearing selection for rotational systems
- Eliminating external bending moments
Implement this configuration:

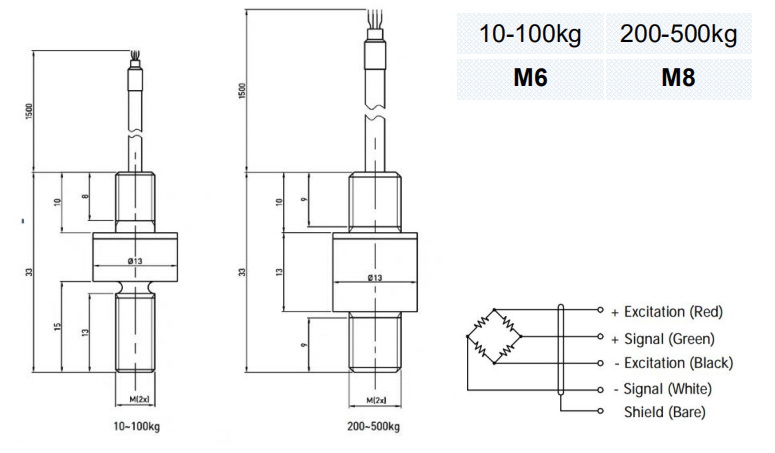

- 4-Wire Connection: Separate excitation and signal wires for noise reduction
- Shielding: Use braided copper shields grounded at the controller end
- Cable Routing: Maintain 30cm separation from AC power lines
| Parameter | Specification |
|---|---|
| Excitation Voltage | 10V ±0.5% DC |
| Input Impedance | >1MΩ |
| Sampling Rate | 2kHz minimum for dynamic applications |
- Install RFI filters on power lines
- Use twisted pair cables for analog signals
- Implement galvanic isolation for ground loops
- Zero-point adjustment under no-load conditions
- Apply certified weights in 10% increments of full scale
- Record output voltages/milliamp values
- Generate calibration curve with R⊃2; > 0.999
- Frequency Response: Verify operation up to 500Hz
- Hysteresis Check: ≤0.1% FS deviation forward/reverse
- Temperature Cycling: Validate compensation algorithms
| Interval | Task |
|---|---|
| Weekly | Visual inspection for physical damage |
| Monthly | Thread lubrication with molybdenum grease |
| Quarterly | Full recalibration with traceable standards |
| Annually | Strain gauge resistance verification |
Common issues and solutions:
- Signal Drift: Check temperature stability and grounding
- Zero Offset: Verify mechanical preload conditions
- Erratic Readings: Inspect cable integrity and EMI sources
Inline tension sensors enable closed-loop control in printing presses, achieving ±0.5% tension stability at 10m/s web speeds through real-time PLC adjustments.
Force-sensitive assembly operations utilize dual-range sensors providing:
- 0-100N fine range (±0.1N resolution)
- 100-500N safety range (±5N accuracy)
Submersible inline tension sensors with titanium housings withstand seawater corrosion while monitoring mooring loads up to 20kN.
Successful inline tension sensor integration requires meticulous attention to mechanical alignment, electrical noise suppression, and regular calibration. By following these protocols, engineers can achieve measurement accuracies exceeding 99% while ensuring long-term reliability in demanding industrial environments.
Choose a sensor with 120-150% of your maximum operational load. For variable loads, consider dual-range models with automatic switching.
Dual-function models support both tension and compression measurements when properly mounted. Confirm specifications with manufacturers.
Properly maintained sensors last 5-8 years in industrial environments. Key factors include load cycling frequency and environmental contaminants.
High-quality sensors maintain ±0.05% FS/°C stability. For extreme environments, select models with active temperature compensation.
Critical practices:
- Annual recalibration
- Quarterly thread inspections
- Real-time signal monitoring for anomalies
