Selecting the right in-line tension load cell is essential for ensuring accurate measurements in various applications, from industrial processes to scientific research. This guide will help you navigate the complexities of choosing an appropriate load cell by discussing key factors, types, applications, and providing a comprehensive FAQ section.

Understanding In-Line Tension Load Cells

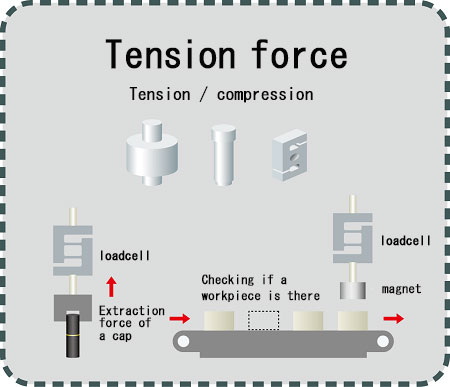

In-line tension load cells are specialized sensors designed to measure tensile forces in a straight line. They convert mechanical tension into an electrical signal, allowing for precise monitoring and control of forces in various applications. Commonly used in industries such as construction, manufacturing, and aerospace, these load cells play a critical role in ensuring safety and efficiency.

Key Factors to Consider When Selecting an In-Line Tension Load Cell

1. Application Requirements

Understanding the specific needs of your application is crucial. Consider the following:

- Load Capacity: Determine the maximum and minimum loads that the load cell will measure. Ensure that the chosen load cell exceeds your maximum expected load to avoid damage.

- Dynamic vs. Static Loads: Identify whether your application involves dynamic (changing) loads or static (constant) loads. Different load cells may be better suited for each scenario.

- Environmental Conditions: Assess the environment where the load cell will be used. Factors such as temperature, humidity, and exposure to chemicals can affect performance.

2. Load Cell Type

There are several types of in-line tension load cells, each suited for different applications:

- S-Type Load Cells: These versatile sensors can measure both tension and compression forces. They are often used in hanging scales and suspended applications.

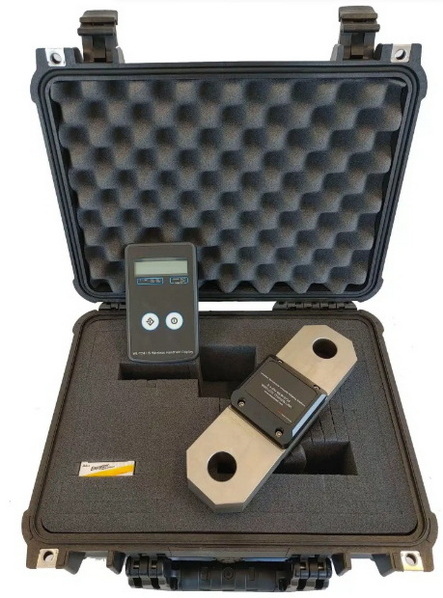

- Tension Link Load Cells: Specifically designed for measuring tensile loads, these are commonly used in crane scales and rigging applications.

- Rod-End Load Cells: Ideal for applications where space is limited, these load cells feature a compact design that allows for easy integration into existing systems.

- Miniature Load Cells: These are suitable for applications requiring high precision in tight spaces.

3. Accuracy and Sensitivity

Accuracy is paramount when selecting a load cell. Look for specifications that indicate:

- Nonlinearity: This measures how much the output deviates from a straight line across the range of loads.

- Hysteresis: This indicates how much the output differs when loading versus unloading at the same point.

- Repeatability: Ensure that the load cell consistently provides the same measurement under identical conditions.

4. Mounting and Installation

The installation method can significantly impact performance:

- Threaded Connections: Many in-line tension load cells come with male or female threads for easy mounting.

- Alignment: Proper alignment with the load direction is crucial for accurate readings. Misalignment can lead to erroneous measurements.

5. Signal Output

Consider how you will read and interpret data from the load cell:

- Analog vs. Digital Output: Determine if you need an analog signal (typically millivolts) or a digital output that can be easily integrated with modern data acquisition systems.

- Signal Conditioning: Some load cells come with built-in signal conditioning features that enhance performance and simplify integration.

Applications of In-Line Tension Load Cells

In-line tension load cells are utilized across various industries due to their versatility:

- Material Testing: Used to assess tensile strength and elasticity of materials like metals, plastics, and composites.

- Construction and Structural Monitoring: Essential for measuring tension in cables and supports in buildings, bridges, and other infrastructures.

- Manufacturing Processes: Employed in production lines to monitor tension in wires and cables during assembly.

- Aerospace Testing: Critical for testing materials and components under tensile stress to ensure safety standards are met.

Conclusion

Selecting the right in-line tension load cell requires careful consideration of application requirements, environmental conditions, accuracy needs, mounting methods, and signal output preferences. By understanding these factors, you can choose a load cell that meets your specific needs effectively.

FAQ

1. What is an in-line tension load cell?

An in-line tension load cell is a sensor designed to measure tensile forces directly along its axis by converting mechanical tension into an electrical signal.

2. How do I determine the right capacity for my load cell?

To determine the right capacity, assess your application's maximum expected load and select a load cell that exceeds this value by at least 20% to accommodate any potential overloads or variations.

3. Can I use a tension load cell for both tension and compression measurements?

Some models, like S-type or dual-function tension/compression load cells, can measure both types of forces; however, ensure that they are calibrated correctly for each mode of operation.

4. What factors affect the accuracy of a tension load cell?

Factors such as temperature changes, environmental conditions (humidity or chemical exposure), misalignment during installation, and mechanical stress beyond rated capacity can all affect accuracy.

5. How should I install my in-line tension load cell?

Ensure proper alignment with the applied force direction during installation. Use appropriate mounting hardware (like threaded connections) and follow manufacturer guidelines to avoid misalignment or damage during operation.
