Using a load cell in conjunction with an HX711 amplifier is a common practice in various applications, such as weighing scales and force measurement systems. In this guide, we will explore how to effectively use the HX711 to amplify signals from a Degraw 40 kg tension load cell. This article will provide a comprehensive overview of the setup, wiring, calibration, and troubleshooting processes involved.

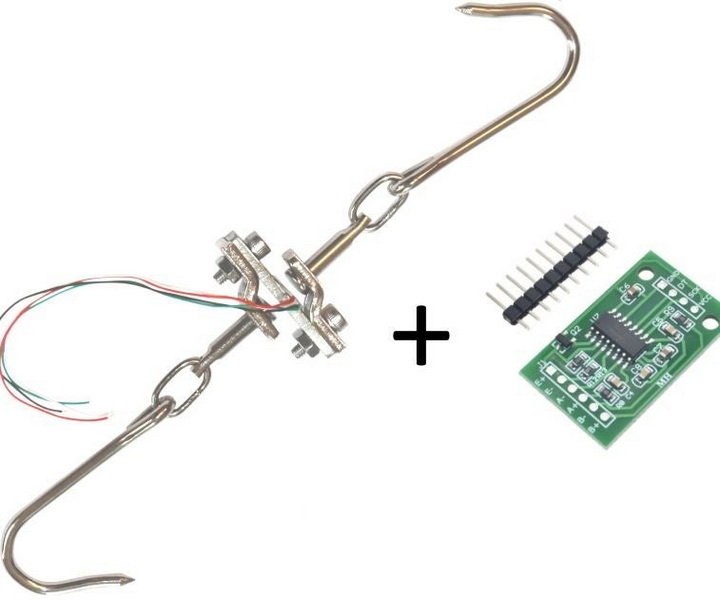

A load cell is a transducer that converts mechanical force into an electrical signal. The Degraw 40 kg tension load cell specifically measures tension forces and is commonly used in applications like weighing scales and material testing. The HX711 is a high-precision 24-bit analog-to-digital converter (ADC) designed for weighing scales and industrial control applications. It amplifies the small signals from the load cell, making them readable by microcontrollers like Arduino.
To set up the system, you will need the following components:
- Degraw 40 kg Tension Load Cell
- HX711 Load Cell Amplifier Module
- Arduino Board (e.g., Arduino Uno)
- Breadboard and jumper wires
- Power supply (usually provided by the Arduino)
- Optional: LCD display for real-time weight readings

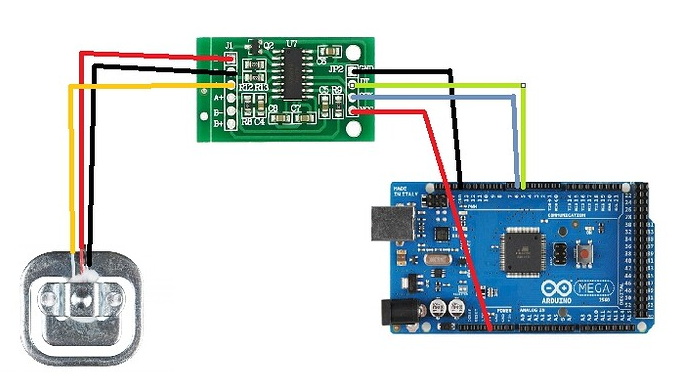

The first step in using the HX711 with the Degraw load cell is to connect them correctly. The load cell typically has four wires: red, black, white, and green.
| Wire Color | Function |
|---|---|
| Red | Excitation+ (E+) |
| Black | Excitation- (E-) |
| White | Signal+ (A+) |
| Green | Signal- (A-) |
1. Connect the red wire (E+) of the load cell to the E+ terminal on the HX711.
2. Connect the black wire (E-) of the load cell to the E- terminal on the HX711.
3. Connect the white wire (A+) of the load cell to the A+ terminal on the HX711.
4. Connect the green wire (A-) of the load cell to the A- terminal on the HX711.
Next, connect the HX711 to your Arduino:
| HX711 Pin | Arduino Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| DT | D2 |
| SCK | D3 |
Before proceeding with programming, ensure you have installed the HX711 library in your Arduino IDE. You can find it in the Library Manager or download it from GitHub.
Here's a basic code snippet to get you started with reading values from your load cell:
#include "HX711.h"
#define LOADCELL_DOUT_PIN 2
#define LOADCELL_SCK_PIN 3
HX711 scale;
void setup() {
Serial.begin(9600);
scale.begin(LOADCELL_DOUT_PIN, LOADCELL_SCK_PIN);
scale.set_scale(); // Set this to your calibration factor
scale.tare(); // Reset the scale to 0
}
void loop() {
Serial.print("Weight: ");
Serial.println(scale.get_units(10), 1); // Average of 10 readings
delay(1000);
}
Calibration is crucial for accurate measurements. To calibrate:
1. Place a known weight on the load cell.
2. Adjust the calibration factor in your code until the displayed weight matches your known weight.
3. Use `scale.set_scale(calibration_factor)` in your code to set this value permanently.
When working with load cells and HX711, you may encounter various issues. Here are some common problems and their solutions:
- Ensure all connections are secure.
- Check for any electrical interference from nearby devices.
- Recalibrate your load cell.
- Make sure there is no weight on the load cell when you call `tare()`.
- Check environmental conditions; temperature changes can affect readings.
- Ensure that you are not exceeding the maximum capacity of your load cell.
- If overload protection triggers without excessive weight, inspect your wiring for shorts or bad connections.
Using an HX711 amplifier with a Degraw 40 kg tension load cell can provide precise measurements for various applications. By following proper wiring techniques, calibrating accurately, and troubleshooting effectively, you can create a reliable weighing system or force measurement device.
A load cell is a type of transducer that converts mechanical force into an electrical signal, typically used for measuring weight or force.
The HX711 amplifies small signals from load cells and converts them into a digital format that can be read by microcontrollers like Arduino.
Yes, but you'll need a combinator board to sum signals properly from multiple load cells.
Check all connections for security, reduce electrical interference in your environment, and consider recalibrating your setup.
Calibration frequency depends on application requirements; for high precision needs, consider calibrating weekly or monthly.
