A tension load cell is a transducer that converts force into a measurable electrical signal. These devices are essential in various applications, from industrial weighing systems to aerospace engineering, where accurate force measurement is critical[4]. Understanding tension load cell wiring is crucial for achieving reliable and precise measurements. This article provides a detailed guide on how to correctly wire a tension load cell, ensuring optimal performance and accuracy.
A load cell is a force sensor that converts mechanical force into an electrical signal. This conversion is achieved through an internal Wheatstone bridge circuit, which changes resistance in response to applied force[4]. Load cells are used across various industries, including mining, OEM (Original Equipment Manufacturer), and agriculture, to provide weight data for control and analysis[4].
Load cells come in various types, each designed for specific applications. Common types include:
- Tension Load Cells: Designed to measure pulling or tensile forces[1].
- Compression Load Cells: Designed to measure pushing or compressive forces[1].
- S-Type Load Cells: Versatile load cells that can measure both tension and compression[8].
- Universal Load Cells: Suitable for both tension and compression applications[2].
Correct tension load cell wiring is essential for several reasons:
- Accuracy: Proper wiring ensures that the electrical signal accurately represents the applied force[4].
- Reliability: Correct connections prevent signal loss and ensure consistent performance[4].
- Safety: Incorrect wiring can lead to inaccurate readings, potentially causing safety hazards in critical applications[7].
- Longevity: Proper wiring protects the load cell from electrical damage, extending its lifespan[7].
Before diving into the wiring process, it's important to understand the key components and their functions[4].
A load cell cable typically contains several key wires, each with a specific function[4]:
- Excitation Wires (E+ and E-): These wires supply power to the Wheatstone bridge circuit within the load cell. Typically require 5V to 10V[4]. The positive excitation wire (E+) connects to the positive terminal of the power source, while the negative excitation wire (E-) connects to the ground or negative terminal[4].
- Signal Wires (S+ and S-): These wires carry the output signal from the load cell, representing the measured force or weight. Signal clarity is critical for data accuracy[4]. The positive signal wire (S+) carries the positive output signal, while the negative signal wire (S-) carries the negative output signal[4].
- Sense Wires (Sen+ and Sen-): These are optional wires that monitor the voltage at the load cell and compensate for voltage drops over long cables[4][5]. They measure the excitation voltage directly at the load cell, ensuring accurate calibration[4].
- Shielding: This protects the signal wires from electromagnetic interference (EMI), maintaining signal quality[4]. The shield is typically a bare wire or metal sheath surrounding the other wires and is grounded at one end to divert interference[4].
While color codes can vary, here are some common conventions[4]:
- Excitation+ (E+): Red
- Excitation- (E-): Black
- Signal+ (S+): Green
- Signal- (S-): White
- Sense+ (Sen+): Blue
- Sense- (Sen-): Yellow
- Shield: Bare wire or metal sheath
Load cells are typically available in 4-wire and 6-wire configurations[4].
- 4-Wire Load Cells: These have only excitation and signal wires, and are suitable for short distances where voltage drops are minimal[4].
- Advantage: Easier to install and more economical for shorter distances[4].
- 6-Wire Load Cells: These include additional sense wires to compensate for voltage drops over longer distances and temperature variations[4][5].
- Advantage: More stable readings over long distances and in variable temperature environments, providing better measurement precision[4].
Follow these steps to correctly wire a tension load cell.
Before you begin, ensure you have the following tools and materials:
- Tension Load Cell: Ensure it is compatible with your application and measurement range[1].
- Wiring Diagram: Refer to the load cell's specific wiring diagram[7].
- Multimeter: For testing voltage and continuity[4].
- Screwdrivers: Suitable for the terminal connections[1].
- Wire Strippers: To prepare the wire ends[4].
- Electrical Tape: For insulating connections[7].
- Junction Box or Indicator: To connect the load cell to a data acquisition system[7].
Based on the color codes and the wiring diagram, identify each wire[4]. Use a multimeter to confirm the connections if necessary[4].
Connect the excitation wires to the power source or indicator[4].
- Connect the Excitation+ (E+) wire to the positive terminal of the power source[4].
- Connect the Excitation- (E-) wire to the ground or negative terminal of the power source[4].
Connect the signal wires to the appropriate terminals on the indicator or data acquisition system[4].
- Connect the Signal+ (S+) wire to the positive signal terminal[4].
- Connect the Signal- (S-) wire to the negative signal terminal[4].
If you are using a 6-wire load cell, connect the sense wires[4].
- Connect the Sense+ (Sen+) wire to the positive excitation terminal on the indicator[4].
- Connect the Sense- (Sen-) wire to the negative excitation terminal on the indicator[4].
Connect the shielding wire to the ground terminal on the indicator or controller[4]. This helps to prevent EMI and stabilize the signal[4].
Ensure that all connections are secure and properly insulated[7]. Use electrical tape to insulate any exposed wire[7].
Use a multimeter to test the voltage and continuity of each connection[4]. Verify that the excitation voltage is within the specified range (typically 5V to 10V)[4].
Referring to wiring diagrams and schematics is crucial for accurate tension load cell wiring[7]. Here are some examples of common wiring configurations.

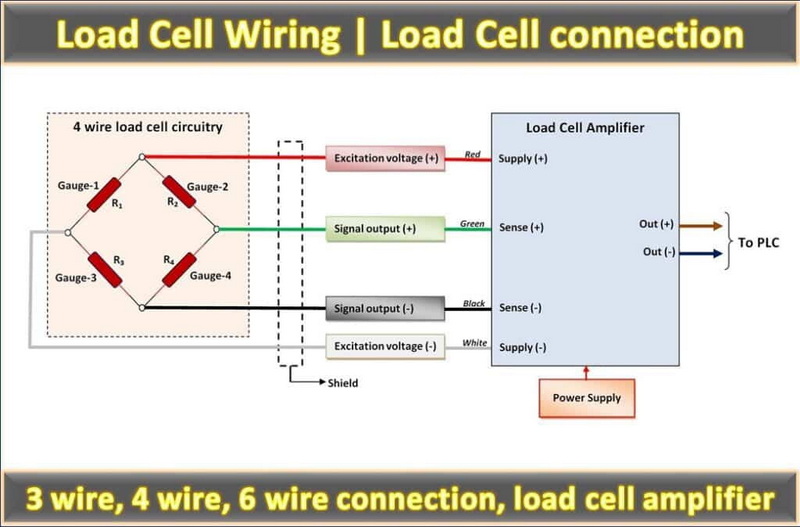

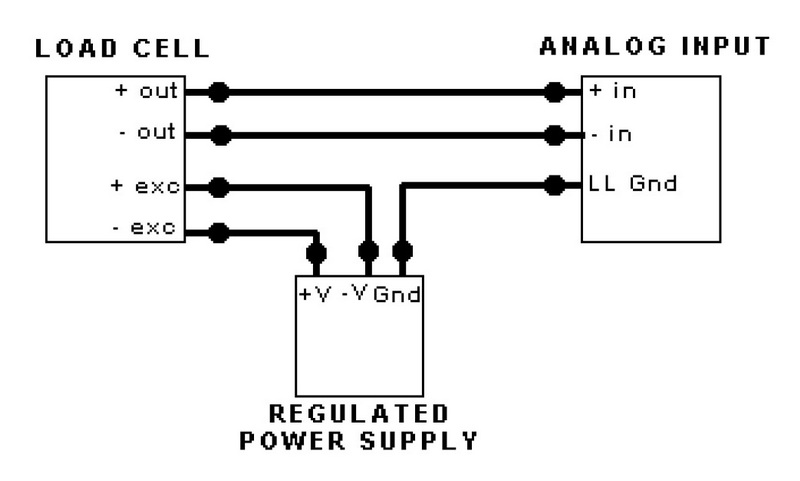

In a 4-wire configuration, there are only excitation and signal wires.
Power Source/Indicator Load Cell
---------------------- ---------
Excitation+ (E+) -----> Red
Excitation- (E-) -----> Black
Signal+ (S+) -----> Green
Signal- (S-) -----> White
In a 6-wire configuration, there are excitation, signal, and sense wires.
Power Source/Indicator Load Cell
---------------------- ---------
Excitation+ (E+) -----> Red
Excitation- (E-) -----> Black
Signal+ (S+) -----> Green
Signal- (S-) -----> White
Sense+ (Sen+) -----> Blue
Sense- (Sen-) -----> Yellow
To ensure accurate and reliable measurements, follow these best practices[4].
Using high-quality, shielded cables minimizes signal interference and ensures accurate data transmission[4].
Long cable runs can cause voltage drops and signal degradation[4]. If long cables are necessary, use a 6-wire load cell to compensate for these effects[4].
Ground the shielding at one end, typically at the indicator or controller, to divert EMI and stabilize the signal[4].
Protect connections from moisture, dust, and other environmental factors that can cause corrosion and signal degradation[5].
Regularly inspect the wiring for any signs of damage or wear[7]. Replace any damaged wires or connectors immediately[7].
When mounting the rod end to the load cell using screws, avoid excessive torque, which can damage the load cell, especially those with low rated load capacity[1].
Even with careful wiring, issues can arise[4]. Here are some common problems and how to troubleshoot them.
- Check the Power Supply: Ensure the power supply is providing the correct voltage to the excitation wires[4].
- Verify Connections: Double-check all connections to ensure they are secure and properly connected[7].
- Test Continuity: Use a multimeter to test the continuity of each wire[4].
- Inspect for Damage: Look for any signs of damage to the wires or connectors[7].
- Check Shielding: Ensure the shielding is properly grounded to prevent EMI[4].
- Inspect for Loose Connections: Tighten any loose connections[7].
- Avoid Vibration: Ensure the load cell and wiring are not subject to excessive vibration[1].
- Check Sense Wires: If using a 6-wire load cell, ensure the sense wires are properly connected to compensate for voltage drops[4].
- Calibrate the Load Cell: Recalibrate the load cell to ensure accurate measurements[4].

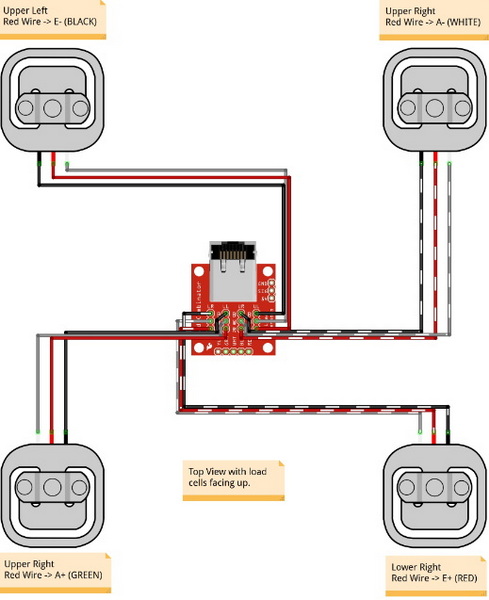

Junction boxes provide a centralized location for connecting multiple load cells[7]. They simplify wiring and allow for signal summing and calibration[7].
Signal amplifiers boost the output signal from the load cell, improving accuracy and reducing the effects of noise[4].
Digital indicators provide a clear and accurate display of the measured force or weight[4]. They often include features such as calibration, filtering, and data logging[4].
Properly wired tension load cells are crucial in various applications.
In industrial weighing systems, tension load cells ensure accurate measurement of materials, helping to maintain quality control and optimize processes[4].
In aerospace engineering, tension load cells are used to measure forces on aircraft components, ensuring structural integrity and safety[4].
In automotive testing, tension load cells are used to measure forces on vehicle components, helping to improve performance and safety[4].
Correctly wiring a tension load cell is essential for achieving accurate, reliable, and safe force measurements. By understanding the key components, following the step-by-step wiring guide, and implementing best practices, you can ensure optimal performance of your tension load cell system. Regular inspection and troubleshooting will help maintain the integrity of the wiring and prevent potential issues.
A tension load cell is a transducer that converts tensile force into a measurable electrical signal. It works based on the principle of strain measurement, where the load cell deforms under force, changing the resistance in a Wheatstone bridge circuit[1][4]. This change in resistance is then converted into an electrical signal proportional to the applied force[4].
The main difference between 4-wire and 6-wire load cells is the presence of sense wires[4]. 4-wire load cells have only excitation and signal wires, suitable for short distances. 6-wire load cells include additional sense wires to compensate for voltage drops over longer distances and temperature variations, providing more stable and accurate readings[4][5].
Fluctuating readings can be caused by several factors. First, check the shielding to ensure it is properly grounded to prevent EMI[4]. Next, inspect for loose connections and tighten them[7]. Also, ensure the load cell and wiring are not subject to excessive vibration[1]. If the problem persists, recalibrate the load cell[4].
To wire a tension load cell correctly, you will need a wiring diagram, a multimeter, screwdrivers, wire strippers, electrical tape, and a junction box or indicator[4][7]. These tools will help you identify the wires, make secure connections, and test the wiring for accuracy and continuity[4].
Using high-quality cables minimizes signal interference and ensures accurate data transmission[4]. High-quality cables are typically shielded to protect against EMI and are made from materials that resist corrosion and wear, ensuring reliable performance over time[4].
