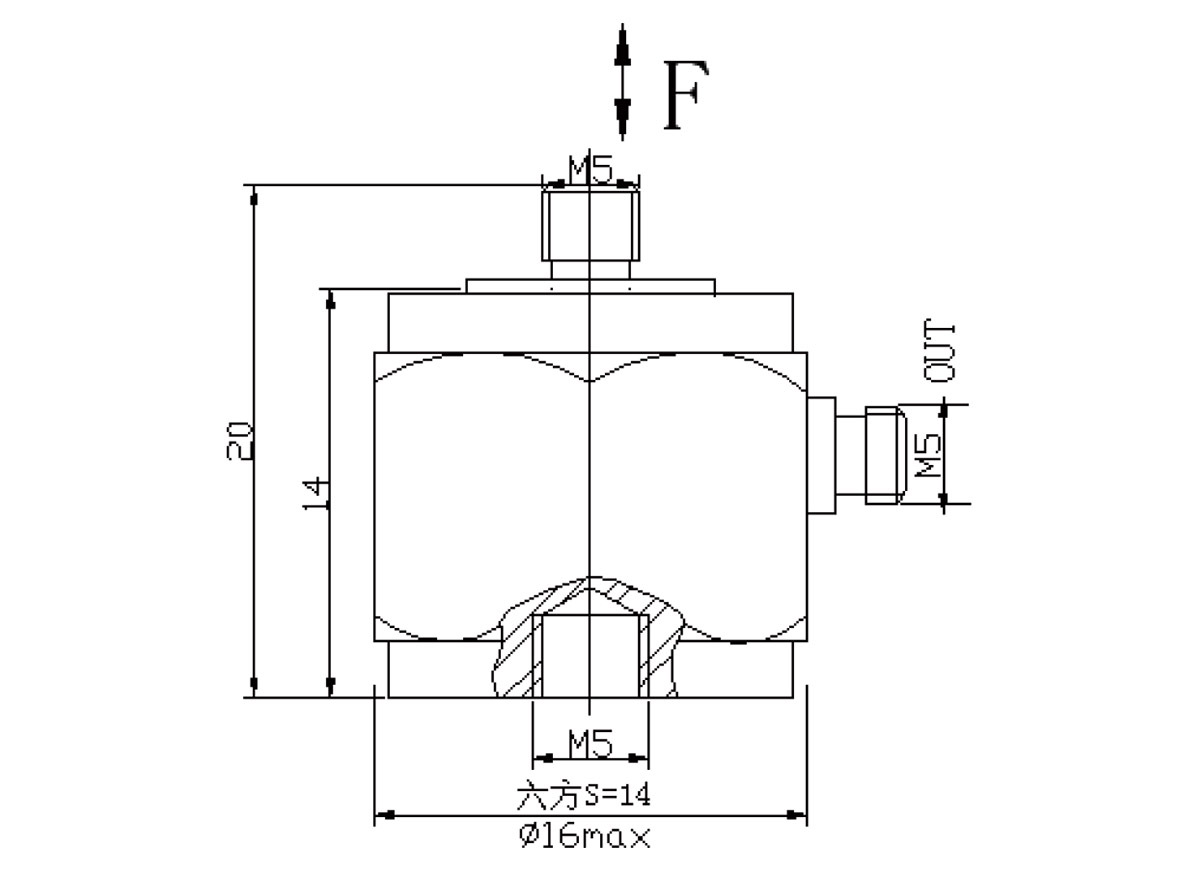

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

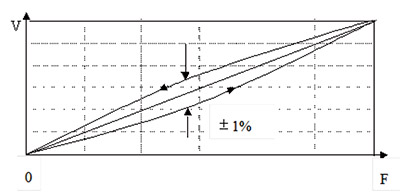

Typical Static Error Curve( average fromthree times) | Function Feature |
| ▶ Fast dynamic measurement response ▶ Long static calibration duration ▶ Small size, light weight, easy to use ▶ Can be equipped with FH-01 hammer |
| Specifications |
| Static Parameters | |
| Sensitivity(20±5℃) | 4pC/N |
| Measurement range | 0~1000N |
| Overload capacity | 150% |
| Linearity | ＜1%F.S |
| Hysteresis | ＜1%F.S |
| Repeatability | ＜1%F.S |
| Capacitance | 7pF |
| Insulation resistance | ＞1013Ω |
| Dynamic Parameters | |
| Resonant frequency | >55kHz |
| Operating Temp.range | -40～+200 ℃ |
| Physical Parameters | |
| Weight | 16 g |
| Housing material | Stainless steel |
| Installation | M5 |
| Sensitive meterial | Quartz |
| Output method | L5 |
| Attachment | |
| Connection cable | Double-ended L5 low-noise cablex2m |
| Delivery Configurations |
