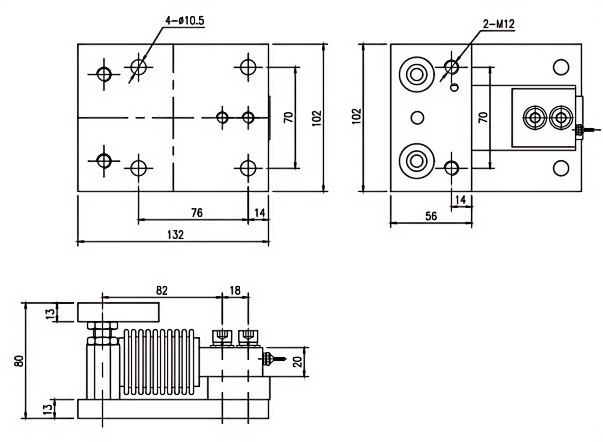

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

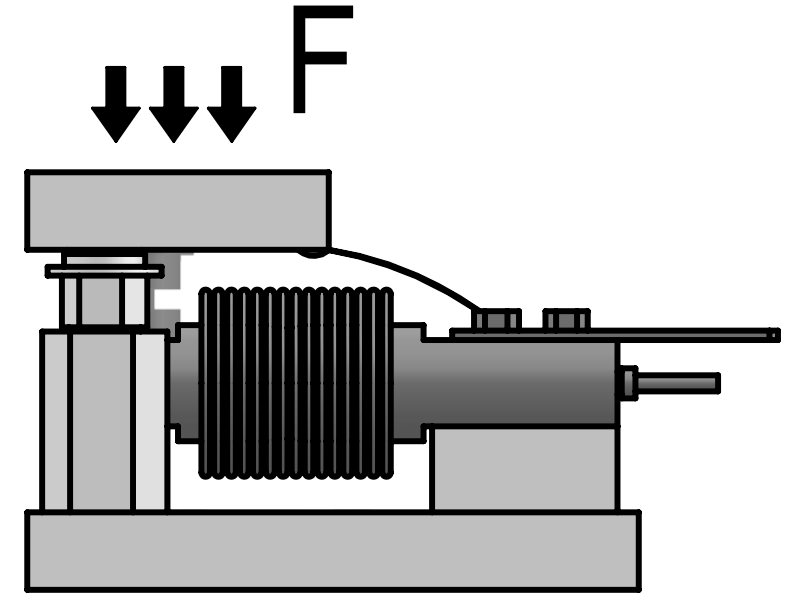

| Load Direction | Installation |
|
|
| Function Feature |
▶ Spherical connectors always keep the module in a vertical weighing state
▶ Support bolts to prevent the equipment from tipping over
▶ Simple and fast installation
▶ Easy maintenance, saving downtime and maintenance time
▶ Suitable for small and medium-sized weighing reactors in the chemical, pharmaceutical, food and other industries
| Specifications |
| Specifications | Technique |
| Capacity | 10,20,30,50,100,150,200,250,300,500kg |
| Sensitivity | 2.0±0.02mV/V |
| Zero Balance | ±0.02mV/V |
| Creep | 0.03%F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Input Impedance | 400±10Ω |
| Output Impddance | 352±3Ω |
| Temp.efliect on sensitivity | 0.025%F.S./10℃ |
| Tamp.efliect on zero | 0.025%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5~15V |
| Max. Excitation | 20V |
| Operating Temp. Range | -30~70℃ |
| Safe Overload | 120%F.S. |
| Ultimate Overload | 200%F.S. |
| Material | Stainless Steel |
| Delivery Configurations |
