FA-L Series
FIBOS

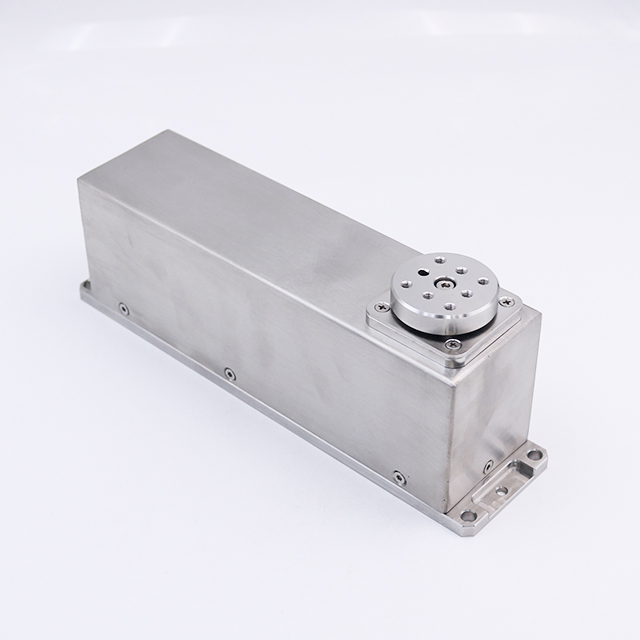

Electromagnetic force standard load cell Product Description |
The ideal choice for system integration and automated weighing solutions. High-speed, high-precision weighing modules, custom-designed to meet the requirements of equipment or automated weighing system integration
Precise weighing and rapid response
Features the is0CAL fully automatic internal calibration and adjustment function to fully ensure the accuracy of weighing results
Compact design for easy installation
Four-level anti-vibration technology to suit a wide range of weighing environments
Highest safety protection rating
Full range of communication protocols: RS232, RS485

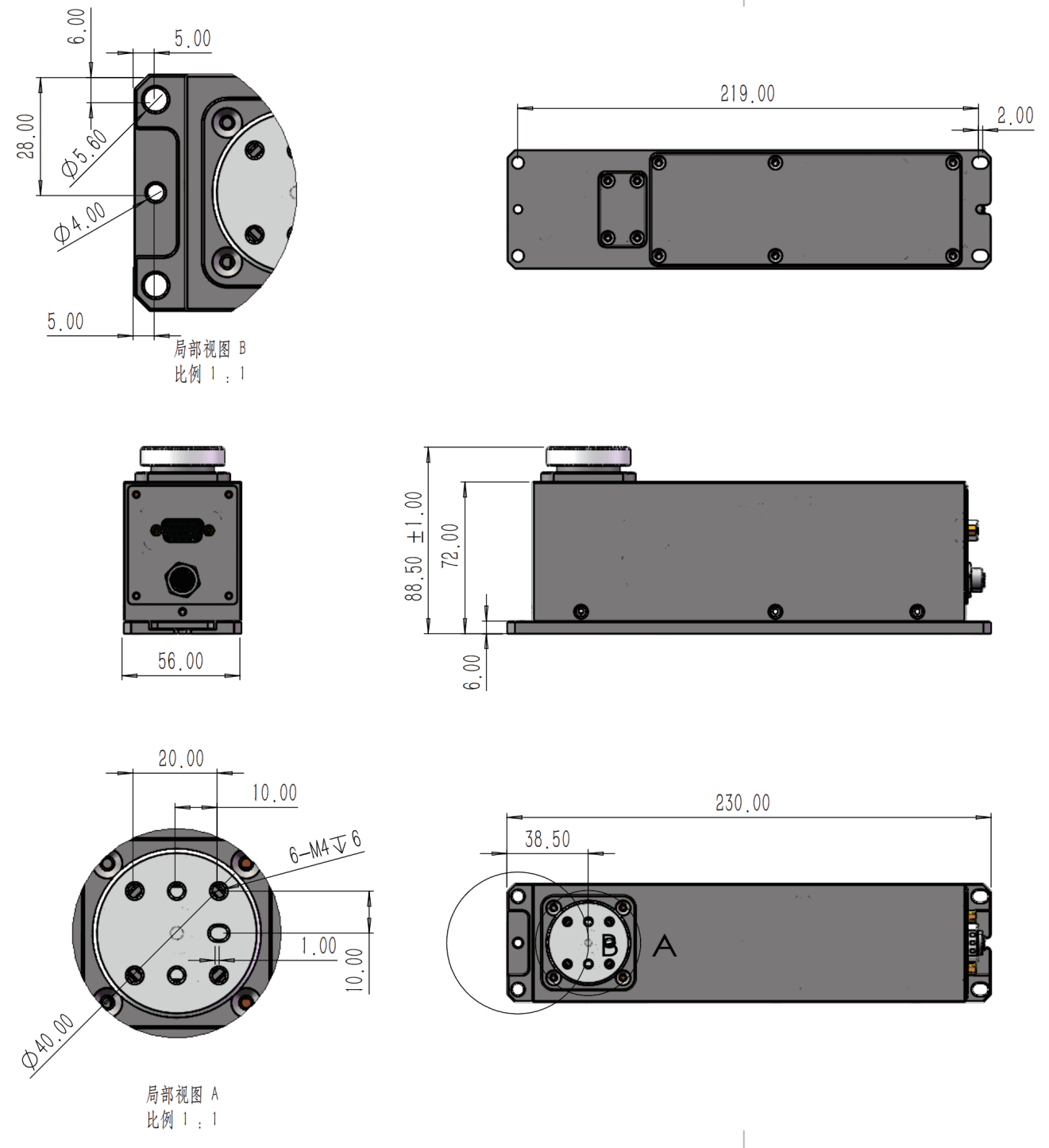

Electromagnetic force standard load cell Dimensions（Unit:mm） |
Installation Requirements
1. The installation surface must be a flat, stable workbench.
2. Avoid subjecting the module to vibration, direct sunlight, draughts and strong electromagnetic interference.
3. Operating environment: Temperature range: 5°C–35°C; Temperature fluctuation: <5°C/h; Relative humidity: 50–85%
We provide 3D model files of our products.Support |
Electromagnetic force standard load cell Specifications |
Model | Graduation value | Maximum range | Repeatability (5% load) | Repeatability (at approximately 100% load | Linear error | Typical stabilisation time | Platform dimensions | LxWXH |
| mg | g | mg | mg | mg | s | mm | mm | |
| FA-L124 | 0.1 | 120 | ±0.1 | ±0.2 | ±0.3 | ≤3 | φ40 | 230*56*88.5 |
| FA-L224 | 0.1 | 220 | ±0.1 | ±0.2 | ±0.3 | ≤3 | φ40 | 230*56*88.5 |
| FA-L223 | 1 | 220 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L323 | 1 | 320 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L523 | 1 | 520 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L623 | 1 | 620 | ±1 | ±2 | ±3 | ≤1.5 | φ40 | 230*56*88.5 |
| FA-L1202 | 10 | 1200 | ±10 | ±20 | ±30 | ≤1.5 | φ40 | 230*56*88.5 |
| FA-L2202 | 10 | 2200 | ±10 | ±20 | ±30 | ≤1.5 | φ40 | 230*56*88.5 |
| FA-L3202 | 10 | 3200 | ±10 | ±20 | ±30 | ≤1.5 | φ40 | 230*56*88.5 |
| FA-L124i | 0.1 | 120 | ±0.1 | ±0.2 | ±0.3 | ≤3 | φ40 | 230*56*88.5 |
| FA-L224i | 0.1 | 220 | ±0.1 | ±0.2 | ±0.3 | ≤3 | φ40 | 230*56*88.5 |
| FA-L223i | 1 | 220 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L323i | 1 | 320 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L523i | 1 | 520 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
| FA-L623i | 1 | 620 | ±1 | ±2 | ±3 | ≤2 | φ40 | 230*56*88.5 |
* Models with the suffix “i” are for internal use; those without a suffix are for external use.
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: It is a micro high-precision weighing module for automated industrial weighing, lab automation, and micro-dosing applications requiring ultra-sensitive weight measurement.
A: Ultra-high precision with graduation values from 0.01mg to 1g, linearity error ≤±0.3mg, and minimal temperature drift for reliable micro-weight results.
A: No. It features fully automatic internal calibration (isOCAL) for self-adjustment, ensuring accuracy at any time and temperature without manual operation.
A: Yes. It has 4-stage shockproof design, dust/water/corrosion resistance, and 300% safe overload protection for harsh industrial conditions.
A: Standard RS232 and RS485 for seamless integration with PLCs, industrial control systems, and automated production lines.
A: Fast stabilization time ≤3s, enabling high-speed, accurate weighing for automated production and testing.
A: Yes. Compact, space-saving design with a tight structure, ideal for integration into automated equipment with limited space.
