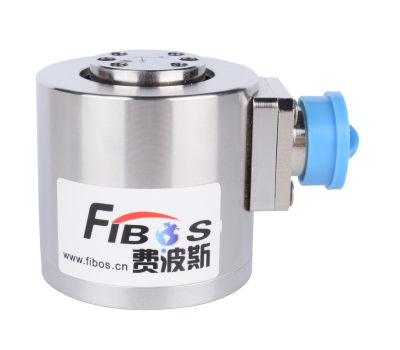

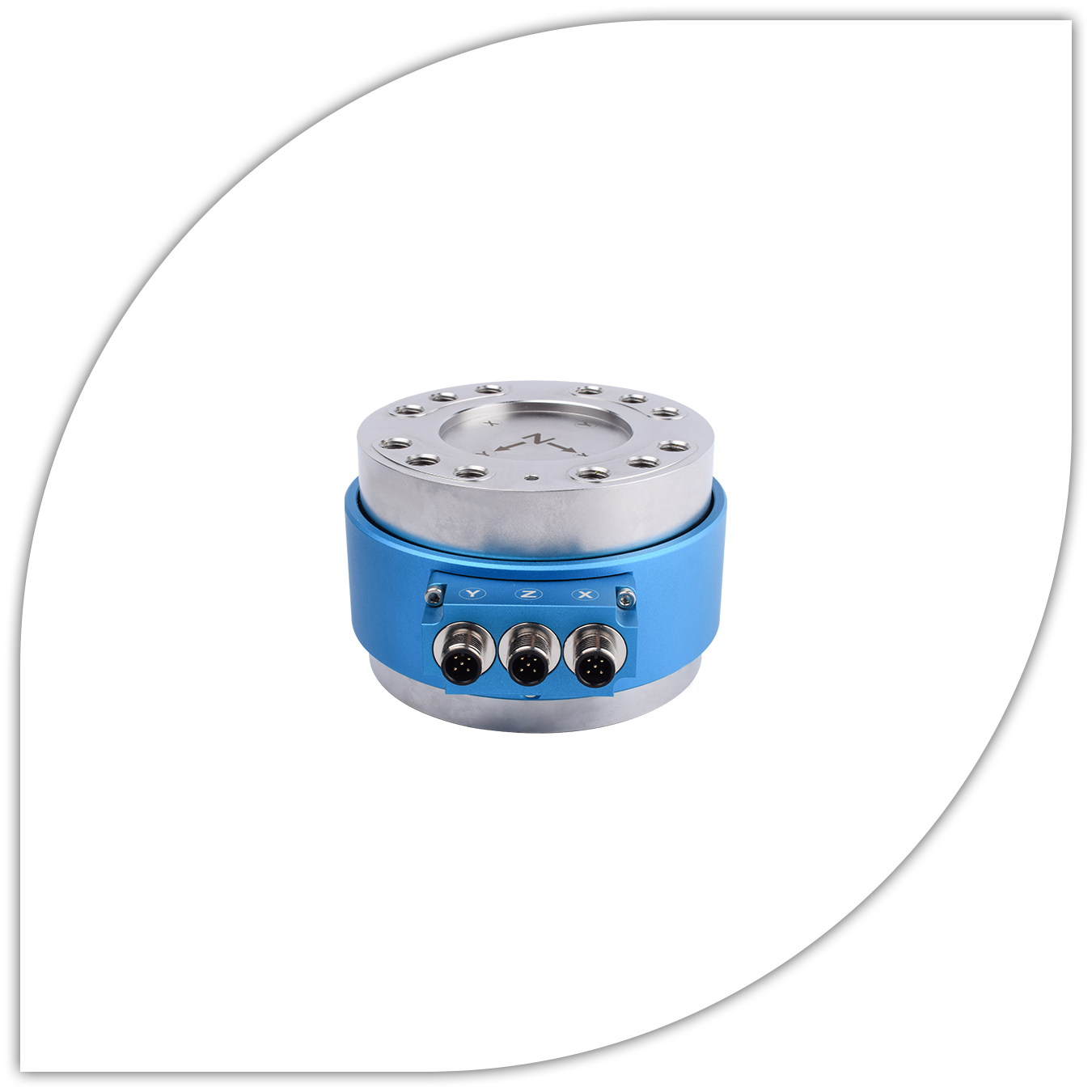

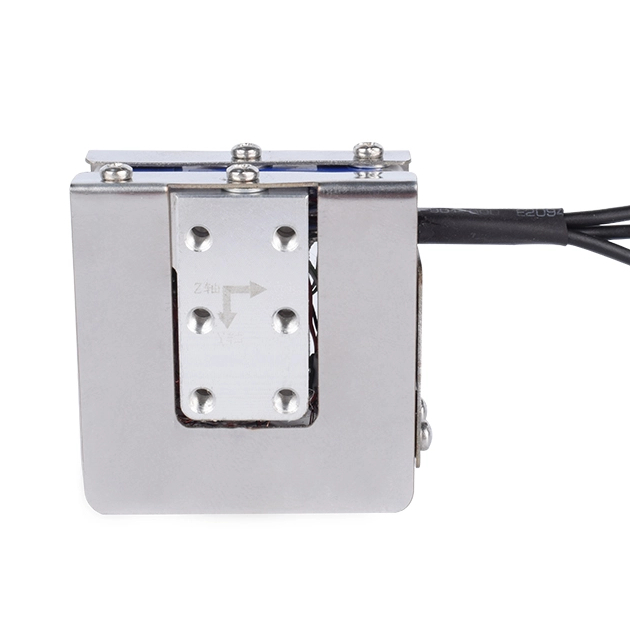

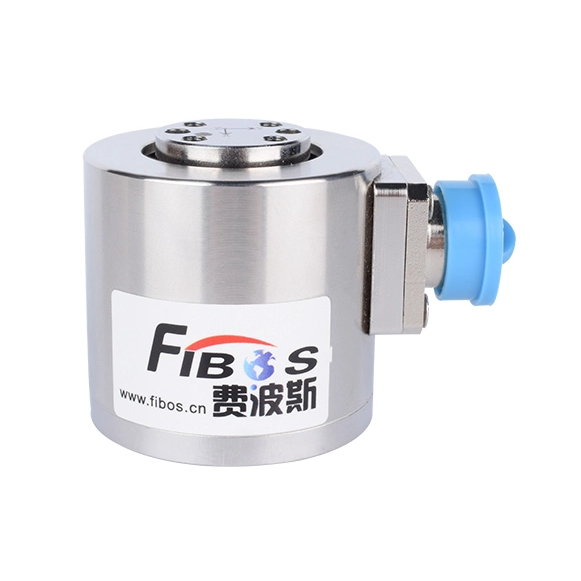

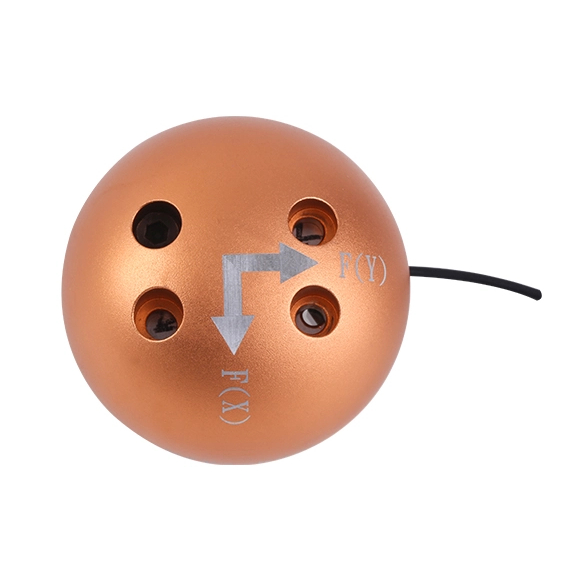

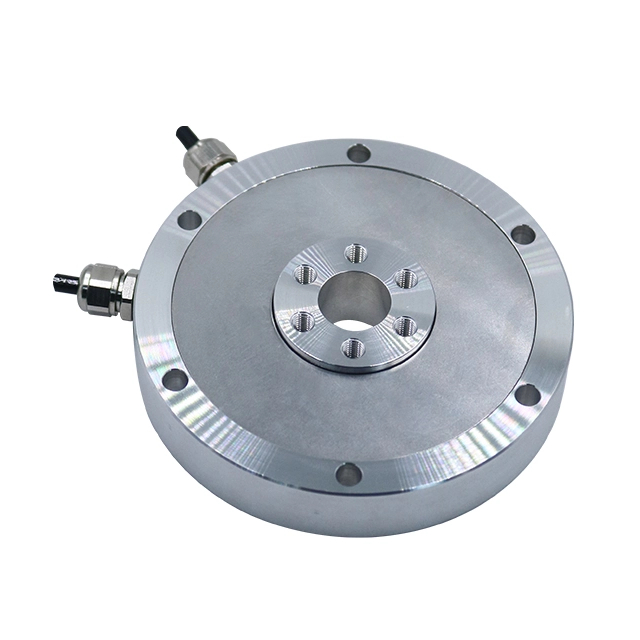

FIBOS independent research and development and production of multi-dimensional force sensors including two-dimensional force, three-dimensional force, six-dimensional force, etc., are using the principle of resistance strain type, with high-precision parallel beam / shear beam strain structure, the measurement range covers 2Kg ~ 20t, unidirectional measurement accuracy is better than 0.2%.F.S. The overall use of a special structural decoupling, the integrated crosstalk is currently better than 1%. Paste resistance strain gauge to measure the strain in the process of force and through the full bridge output mv level voltage signal to linear feedback force value change process; the upper and lower two end faces contain threaded fixing holes and locating pin holes, easy to install and locate, the sensor can be measured both multi-directional pressure can also be measured in multiple directions of tension; sensor body is usually high-quality aerospace aluminum, high-strength alloy steel or high-strength stainless steel, the yield strength of materials High, anti-interference and good safety performance, response frequency higher than 2KHZ, service life of up to 3 million times or more, safety overload 150%, the limit of overload up to 200%; protection level can be up to IP65. sensors can be in the -20 ~ 80 ℃ between normal operation; sensor output signal cable using high-quality trailing chain line, bending service life is high; the company produces multi-dimensional force sensors are now widely used in collaborative robotics and aerospace industries. Our multidimensional force sensors are now widely used in the collaborative robotics and aerospace industries.
The principle of multidimensional force sensors is based on strain gauges, using the principle of resistance strain gauges, and composed of elastic elements, resistance strain gauges, and Wheatstone bridge circuits. When the weight of the measured object acts on the elastic element, causing it to deform and produce a strain, the resistance strain gauge attached to the elastic element converts this strain into a change in resistance, which is then converted into a voltage output through a Wheatstone bridge circuit. Finally, the measured voltage output value is displayed on the instrument to complete the measurement task. Multi dimensional force sensors can simultaneously measure force and torque components in two or more directions. In industrial robots, during precision assembly, polishing, and other operations, multi-dimensional force sensors can sense the contact force between the robot and the work piece in real time.
Main component of load cell&force sensor
Strain gauge
Good heat resistance, small creep, small thermal hysteresis, good long-term stability
Elastomer for sensors
The sensor uses 17-4PH, 15-5PH, LC4 and other industrial sensor special stainless steel，alloy aluminum
Glue
Jelly glue, Waterproof glue
Cable
High temperature wire, Normal temperature wire
Technical Support and Customization Capabilities
FIBOS has over 15 years of experienced R&D engineers and modern standard factory.
Our engineers can deeply understand your project requirements and product specifications and provide corresponding technical solutions.
Products include weighing, force measurement, torque, piezoelectric sensors, etc. More than 80% of the projects we undertake are customized. Our customization services include size, internal structure, technical parameters and other customized accessories.
Our engineering team organizes training courses regularly to keep the technical team at the forefront of the industry and proficient in dealing with various technical challenges.
We provide detailed technical documents and information, such as specifications, force installation drawings, 3D drawings, etc.
Precision Processes and Continuously Optimized Production
You need more than just a precision force sensor, you need a supplier with 8 years of experience in the field to build your brand and increase your profits!
Production on Demand Order FIBOS Sensor focuses on customer demands and flexibly adjusts the production process and schedule to ensure the timely delivery of high-quality customized products. Regardless of the bigger or smaller order, we respond quickly and provide solutions that meet our customers' requirements.
Core Parts Manufacturing and Assembly We have advanced force sensor processing equipment and skilled technical workers, who can accurately process all kinds of high-precision force sensor, in strict accordance with the assembly process for sensor assembly, to ensure stable and reliable product quality, and to provide customers with excellent performance and experience.
Force Sensor Production and Control Perform organization and a series of inspections on force sensor components such as strain gauges, resistor bridge, connector, and end cables. Each force sensor is rigorously tested and evaluated to ensure its quality is up to industry-leading levels, enhancing product performance and reliability.
Automated Manufacturing Capacity and Continuous Optimization
We continue to invest in research and development and the introduction of advanced automated production equipment. With an automation rate of 60%, and continuous optimization of production processes, to ensure that we are always at the forefront of the industry and meet the changing needs of our customers.
Quality Control and Reliability
FIBOS Sensor is equipped with various precision machining and quality testing equipment. We have established a comprehensive inspection process, covering material selection, production process monitoring, product testing, and other aspects. We have also established a perfect after-sales service system to respond to customer inquiries and needs promptly, rather than go away after delivery.
For over a decade, FIBOS has been engaged in manufacturing micro force sensor and load cells. We are proud to support all of our customers, regardless of their size.
Load cell capacity range from 100g to 1000ton Reduction delivery time by 40%.
Fibos specializes in research, development and production of weighing force sensor. SERVICE & CALIBRATION Calibration service is NIST and in compliance with ISO 17025.
