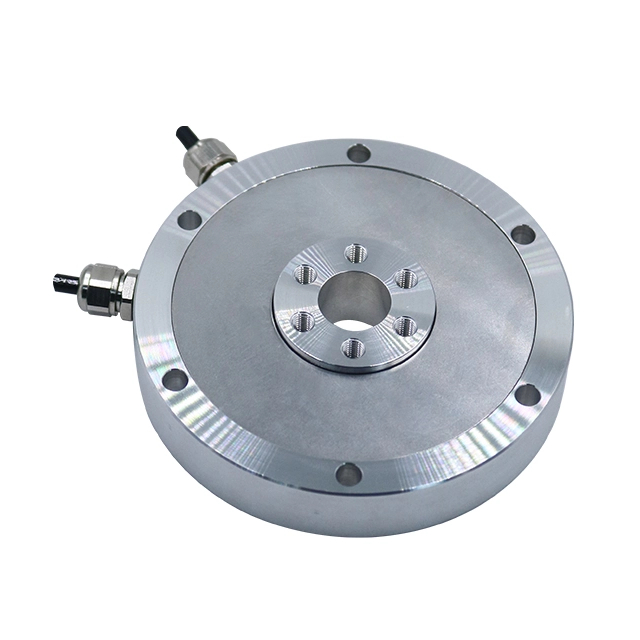

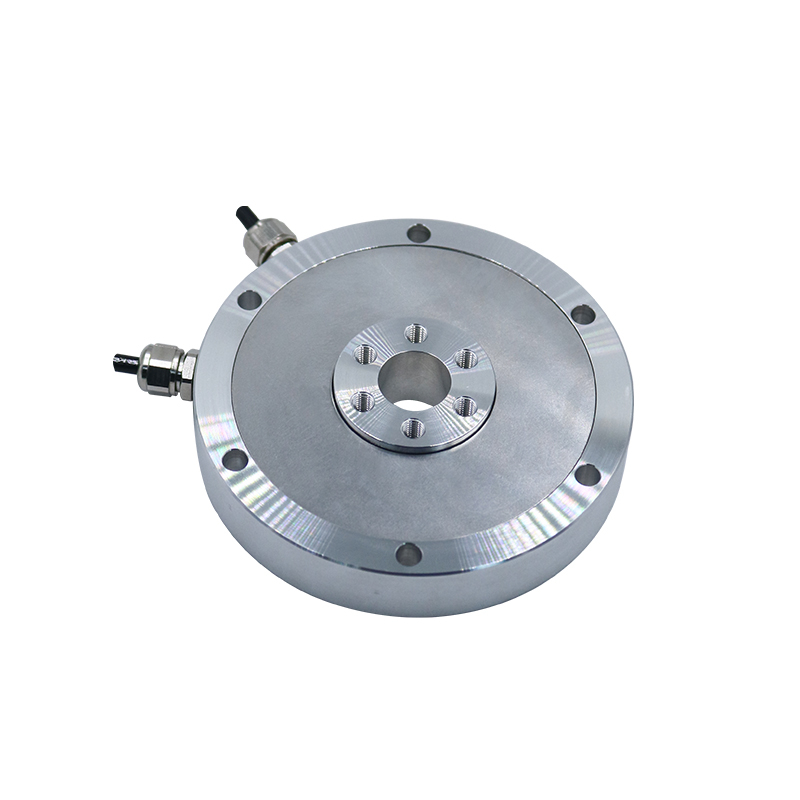

FA701
FIBOS
F:20,30,50,100,200,500,1000,2000N.m M:1,2,3,5,10,20,30,50N.m
≤0.1%F.S.
See the detailed dimensions table
Alloy Steel/Aluminium alloy

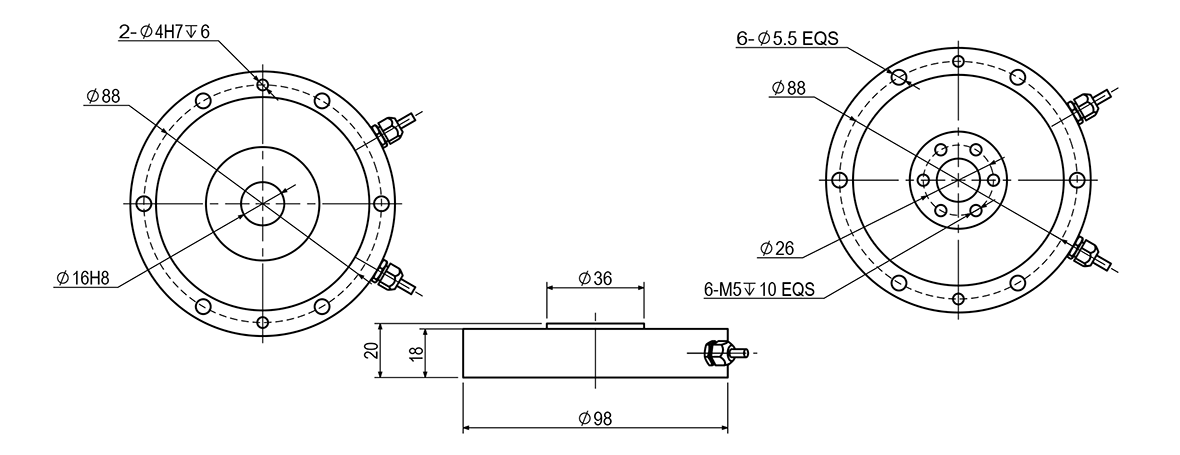

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

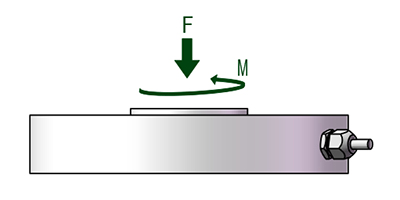

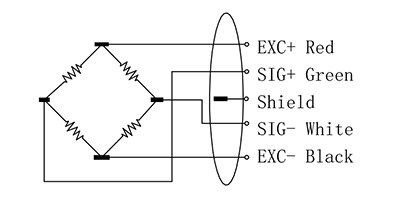

| Load Direction | Wiring |
 |
 |
| Function Feature |
▶ Compression and Torsion Load Sensors
▶ Low two-signal flutter error
▶ Low height and easy to install
▶ Customised specifications
| Specifications |
Specification |
Technique |
Capacity |
F: 20/30/50/100/200/500/1000/2000N |
Sensitivity |
1.0±20%mV/V |
Zero balance |
±2%mV/V |
Creep |
≤0.2%F.S. |
Non-linearity |
≤0.1%F.S. |
Hysteresis |
≤0.1%F.S. |
Repeatability |
≤0.15%F.S. |
Input impedance |
350±10Ω |
Output impedance |
350±5Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥5000MΩ/100V(DC) |
Recommended excitation |
5~15V |
Maximum excitation |
20V |
Compensated temp. range |
-10~40℃ |
Operating temp. range |
-20~75℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
Φ4x3000mm |
Material |
Aluminium Alloy/Alloy Steel |
| Delivery Configurations |
