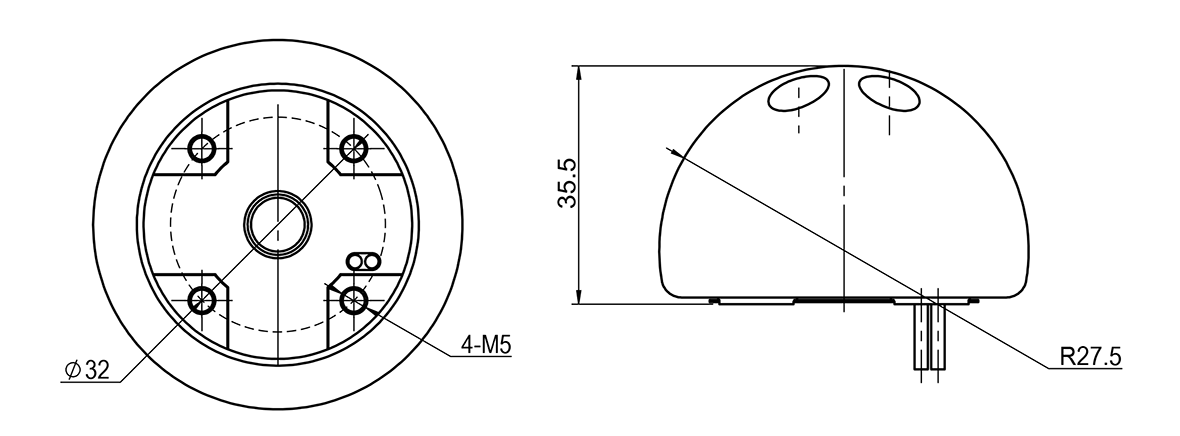

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

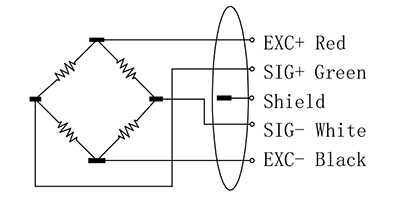

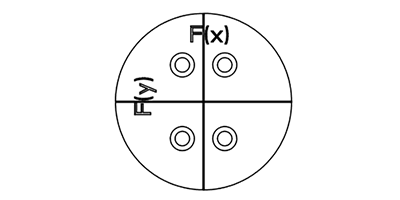

| Load Direction | Wiring |
 |  |
| Specifications |
Specification | Technique |
Capacity | 50kg |
Sensitivity | 1.5±10%mV/V |
Zero balance | ±1%F.S. |
Non-linearity | ≤0.5%F.S. |
Creep(30min) | ≤0.5%F.S. |
Hysteresis | ≤0.5%F.S. |
Repeatability | ≤0.5%F.S. |
Input impedance | 720±20Ω |
Output impedance | 700±10Ω |
Temp. effect on sensitivity | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended Excitation | 5~12V |
Max. Excitation | 15V |
Compensated Temp. Range | -10~60℃ |
Operating Temp. Tange | -20~80℃ |
Safe Overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Cable size | Φ2x3000mm |

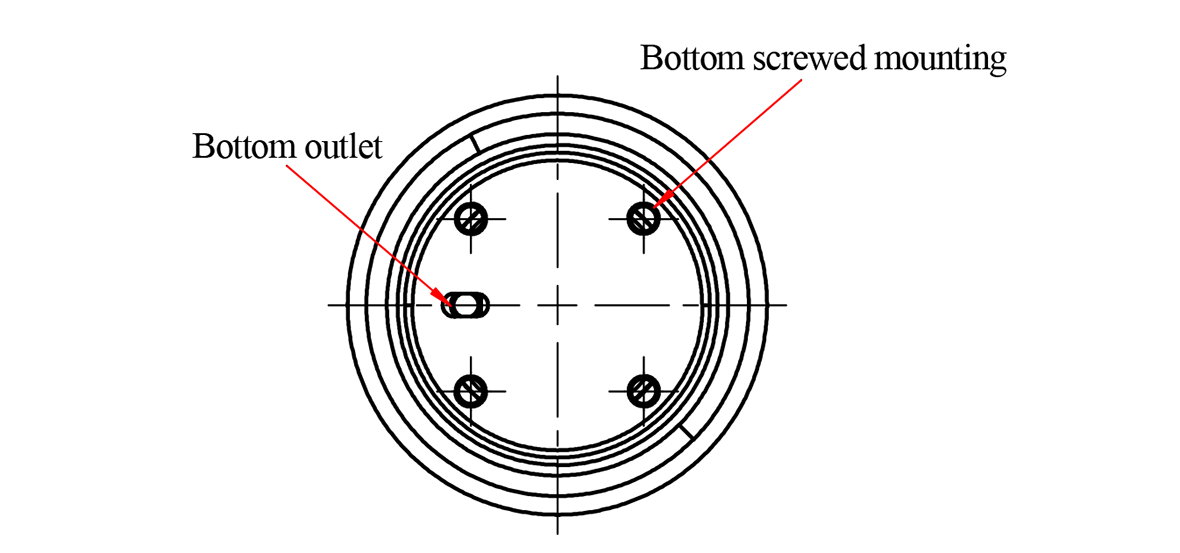

| Installation |
| Delivery Configurations |
Hot Tags: 3 Dimensional Force Sensor, Three Axis Load Cell, wholesale, custom, Customized, oem, manufacturers, factory, suppliers
to facilitate your design of workpiece.
