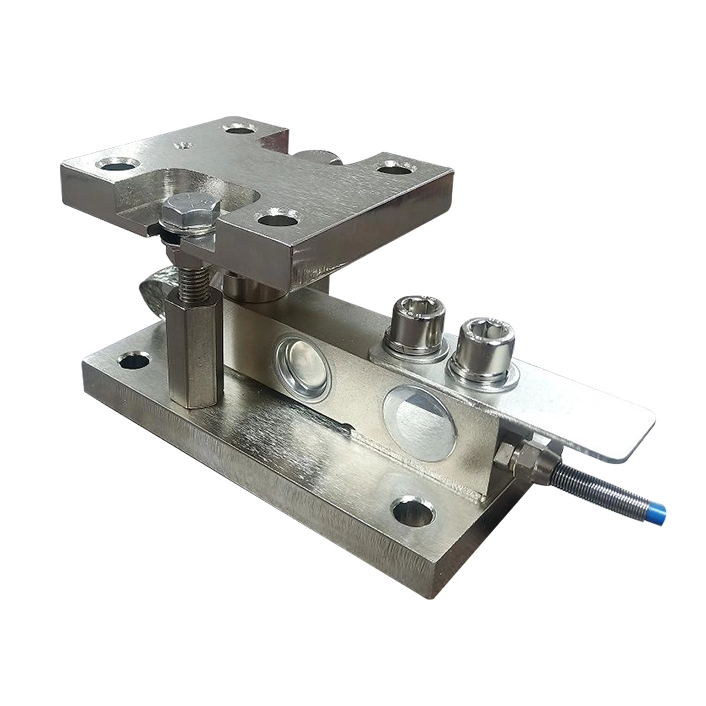

FA803
Availability: | |
---|---|

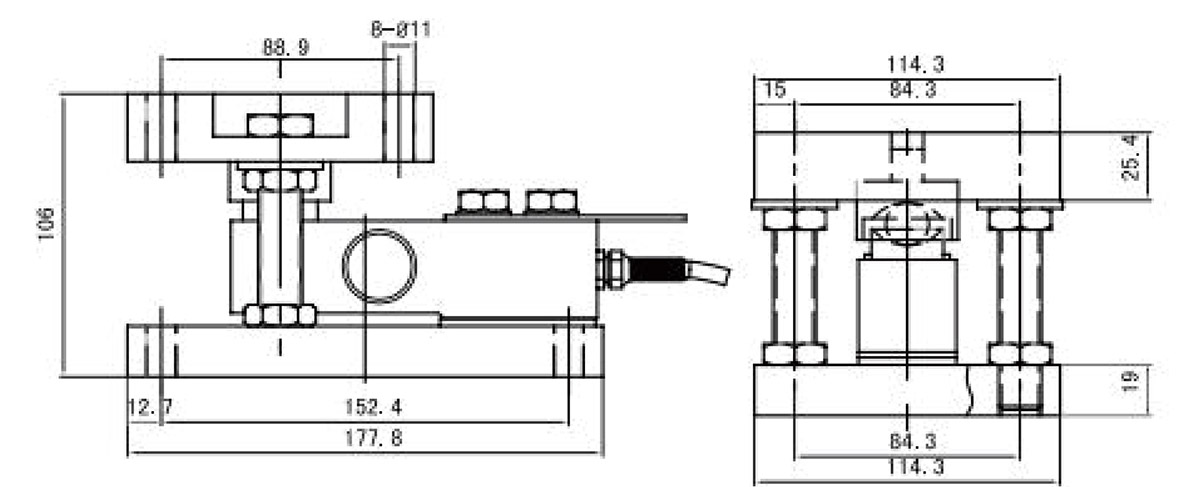

Dimensions(Unit:mm) |
We provide 3D model files of our products. Support |

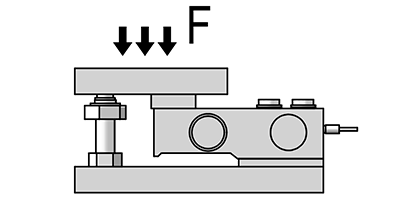

Load Direction | Installation |
Function Feature |
▶ Can be installed directly on the ground or foundation structure
▶ Use cantilever beam weighing sensor
▶ Support bolts to prevent equipment from overturning
▶ Nickel-plated surface for anti-corrosion treatment
▶ Suitable for small and medium-sized weighing reactors in the chemical, pharmaceutical, food and other industries
Specifications |
Specifications | Technique |
Capacity | 0.1/0.2/0.3/0.5/1/2/2.5t |
Sensitivity | 3.0±0.002mV/V |
Zero Balance | ±0.02mV/V |
Creep | 0.03%F.S. |
Non-linearity | 0.03%F.S. |
Hysteresis | 0.03%F.S. |
Repeatability | 0.03%F.S. |
Input Impedance | 400±20Ω |
Output Impddance | 350±3Ω |
Temp.efliect on sensitivity | 0.025%F.S./10℃ |
Tamp.efliect on zero | 0.025%F.S./10℃ |
Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended Excitation | 5~15V |
Max. Excitation | 20V |
Operating Temp. Range | -30~70℃ |
Safe Overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Material | Alloy Steel |
Delivery Configurations |
